AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

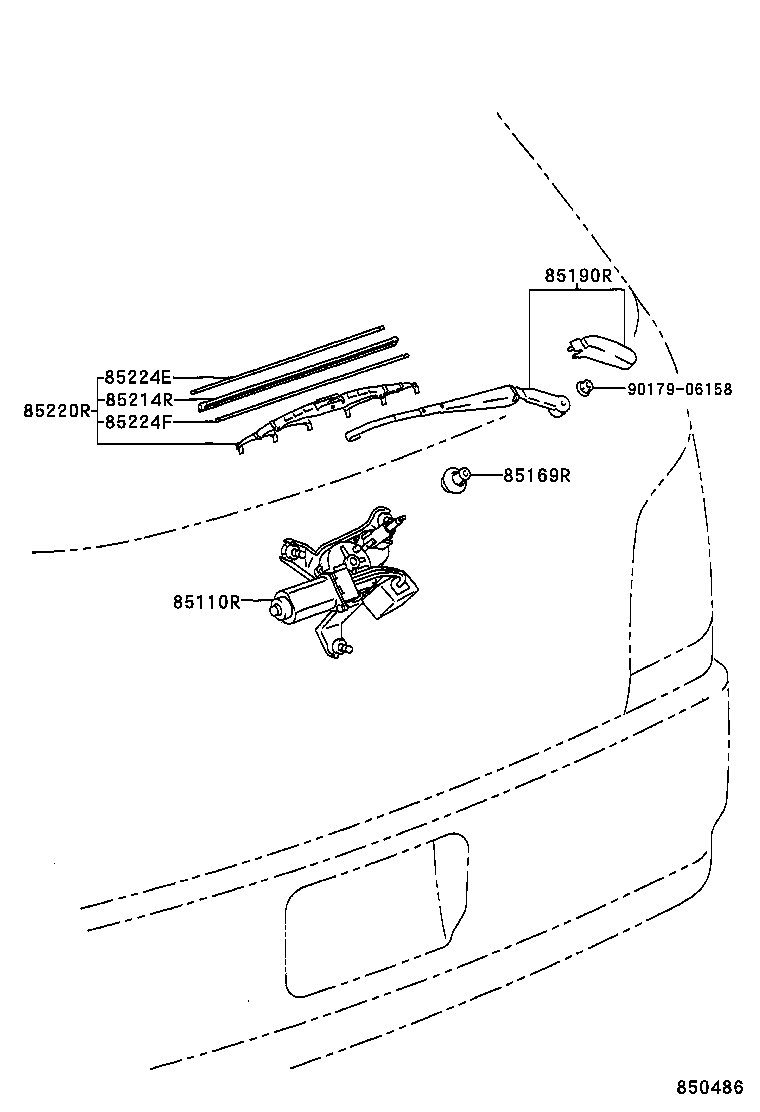

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-13100 |
AE111 |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85143-13060 |
AE111 |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-13050 |
AE111 |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-10100 |
AE111 |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-60050 |
AE111 |
1 | ||
| 85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1 | ||||
| 85224-10200 |
AE111 |
1 | ||
| 85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2 | ||||
| 85224-10200 |
AE111 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
