AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

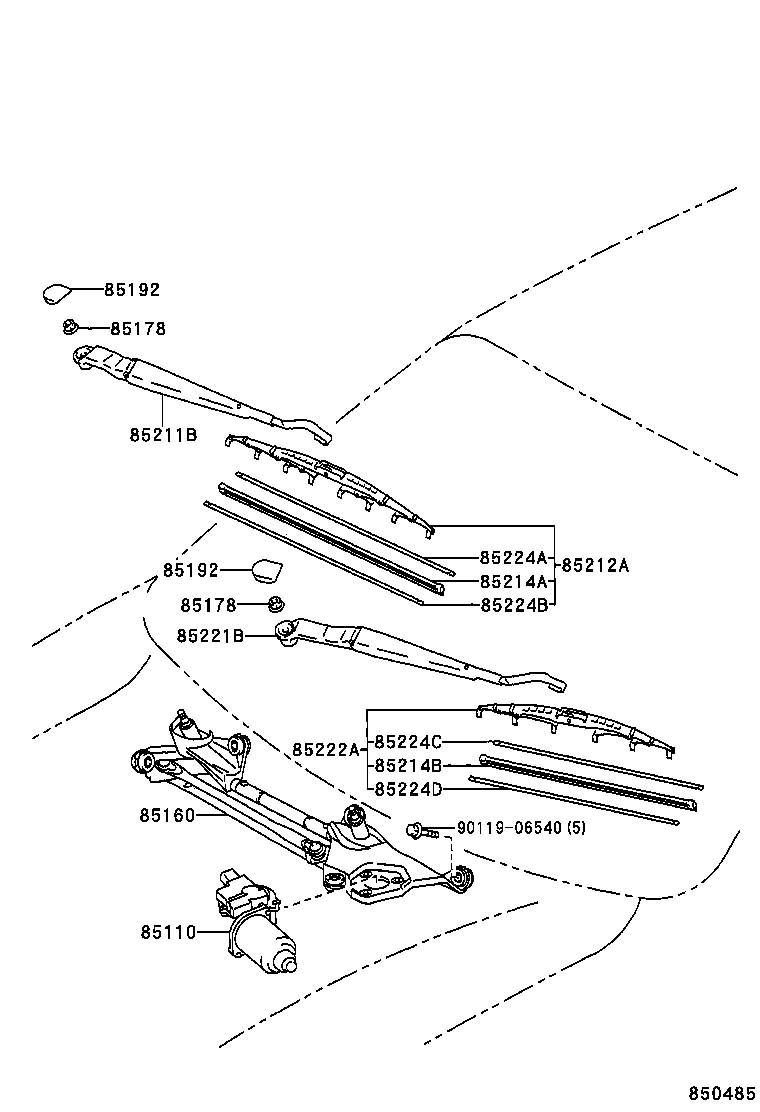

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-13060 |
AE111 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-13060 |
AE111 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-10223 |
AE111 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-10223 |
AE111 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-13010 |
AE111 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-13010 |
AE111 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-13010 |
AE111 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-44010 |
AE111 |
1 | ||
| 85212-13010 |
AE111 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-44010 |
AE111 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-20350 |
AE111 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-13020 |
AE111 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-20390 |
AE111 |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-44010 |
AE111 |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-44010 |
AE111 |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-20310 |
AE111 |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-20310 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-06540 | ||||
