AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

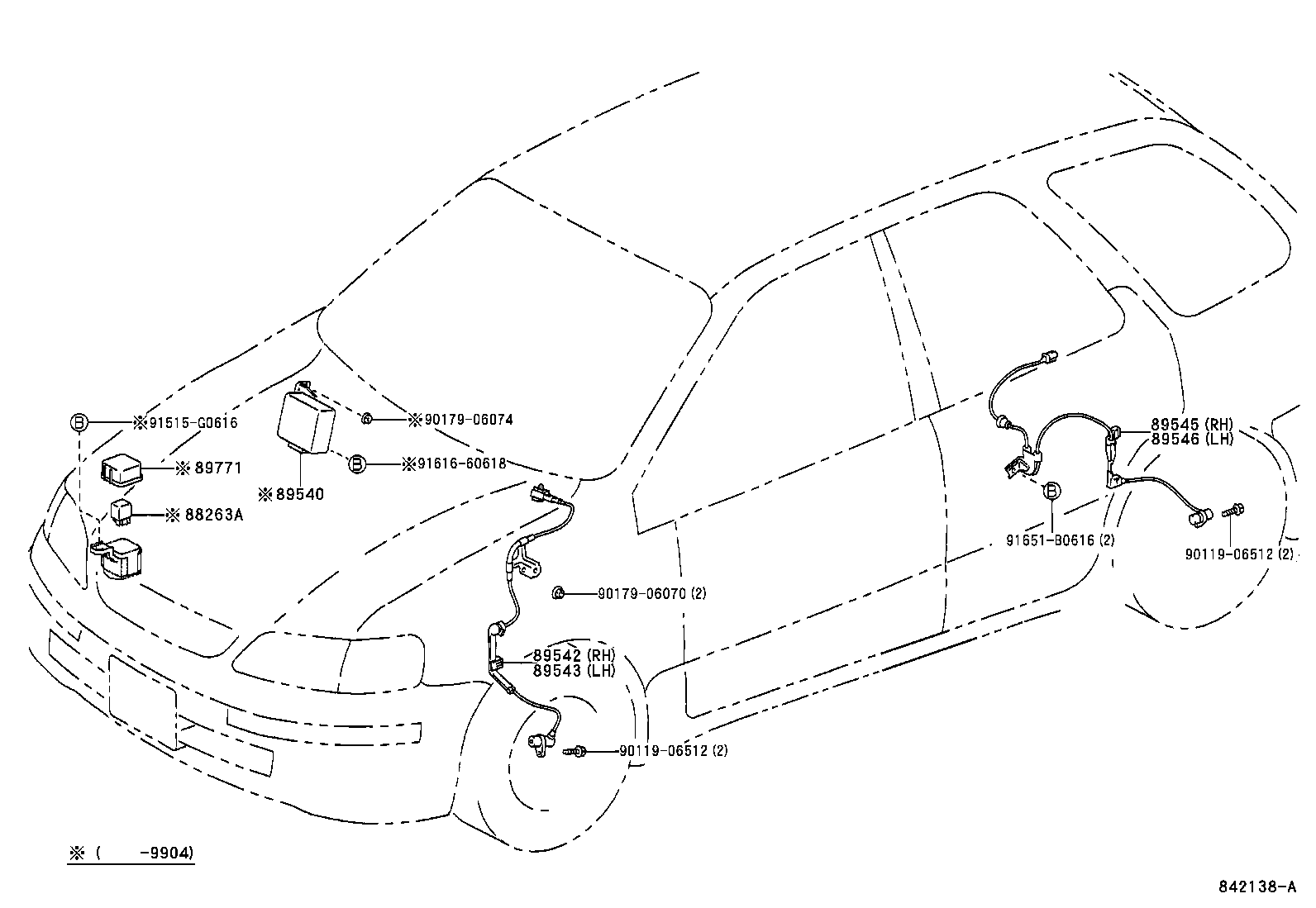

Click highlighted areas on diagram

diagram 88263A 89540 89542 89543 89545 89546 89771 9011906512 9011906512 9017906070 9017906074 91515G0616 9161660618 91651B0616
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-24030

AE111

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-13040

AE111

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12040

AE111

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12040

AE111

 1
89545 - SENSOR, SPEED, REAR RH
89545-12040

AE111

 1
89546 - SENSOR, SPEED, REAR LH
89546-12040

AE111

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-13010

AE111

 1
Common parts
90119-06512
90179-06070
90179-06074
91515-G0616
91616-60618
91651-B0616
