AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

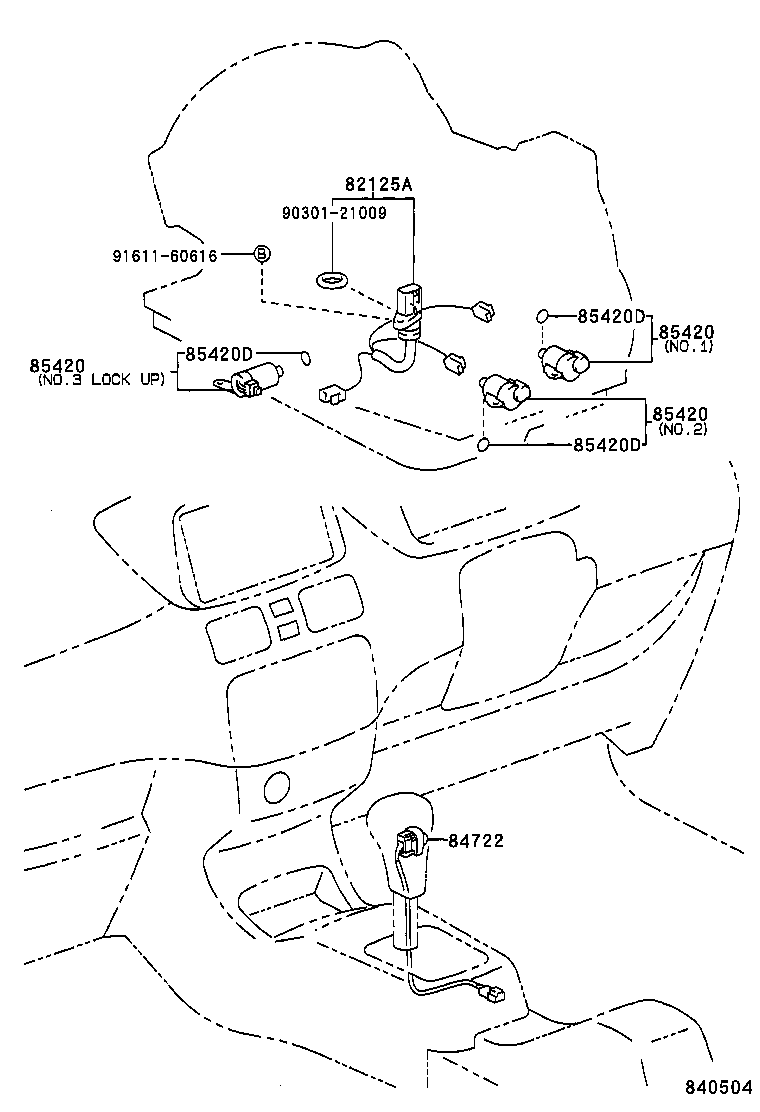

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-12350 |
AE111 |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 84722-12060B1 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12140 |
AE111 NO.3(LOCK UP) |
1 | ||
| 85420-12100 |
AE111 NO.1 |
1 | ||
| 85420-21010 |
AE111 NO.1,DENSO |
1 | ||
| 85420-21020 |
AE111 NO.1,AISIN |
1 | ||
| 85420-12120 |
AE111 NO.2 |
1 | ||
| 85420-21030 |
AE111 NO.2,DENSO |
1 | ||
| 85420-21060 |
AE111 NO.3(LOCK UP),AISIN |
1 | ||
| 85420-21050 |
AE111 NO.3(LOCK UP),DENSO |
1 | ||
| 85420-21040 |
AE111 NO.2,AISIN |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12140 |
AE111 NO.3(LOCK UP) |
1 | ||
| 85420-12100 |
AE111 NO.1 |
1 | ||
| 85420-21010 |
AE111 NO.1,DENSO |
1 | ||
| 85420-21020 |
AE111 NO.1,AISIN |
1 | ||
| 85420-12120 |
AE111 NO.2 |
1 | ||
| 85420-21030 |
AE111 NO.2,DENSO |
1 | ||
| 85420-21060 |
AE111 NO.3(LOCK UP),AISIN |
1 | ||
| 85420-21050 |
AE111 NO.3(LOCK UP),DENSO |
1 | ||
| 85420-21040 |
AE111 NO.2,AISIN |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12140 |
AE111 NO.3(LOCK UP) |
1 | ||
| 85420-12100 |
AE111 NO.1 |
1 | ||
| 85420-21010 |
AE111 NO.1,DENSO |
1 | ||
| 85420-21020 |
AE111 NO.1,AISIN |
1 | ||
| 85420-12120 |
AE111 NO.2 |
1 | ||
| 85420-21030 |
AE111 NO.2,DENSO |
1 | ||
| 85420-21060 |
AE111 NO.3(LOCK UP),AISIN |
1 | ||
| 85420-21050 |
AE111 NO.3(LOCK UP),DENSO |
1 | ||
| 85420-21040 |
AE111 NO.2,AISIN |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AE111 |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AE111 |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AE111 |
3 | ||
| Common parts | ||||
| 90301-21009 | ||||
| 91611-60616 | ||||
