AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

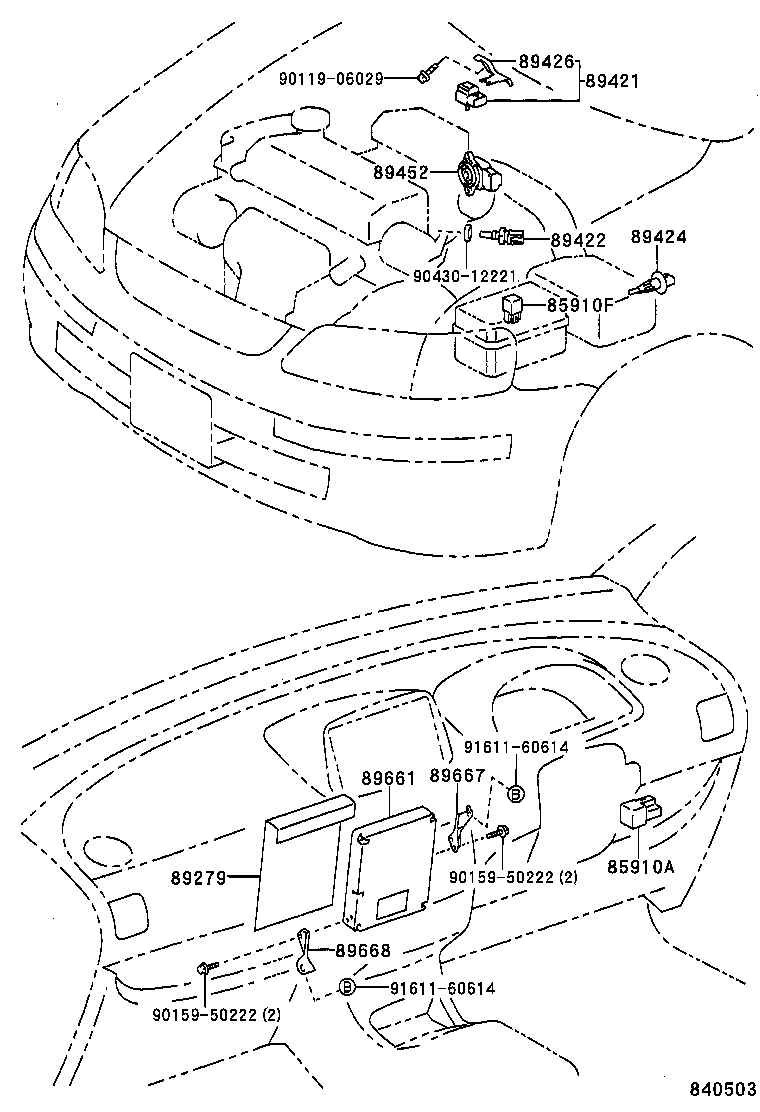

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89421 89422 89424 89426 89452 89661 89667 89668 9011906029 9015950222 9015950222 9043012221 9161160614 9161160614
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

AE111

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

AE111

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-13030

AE111

 1
89279-13020

AE111

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-13010

AE111

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AE111

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AE111

 1
89426 - BRACKET, VACUUM SENSOR
89426-13010

AE111

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

AE111

 1
89661 - COMPUTER, ENGINE CONTROL
89661-13040

AE111

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-13010

AE111

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-13010

AE111

 1
Common parts
90119-06029
90159-50222
90430-12221
91611-60614
