AE111R-FPPEK (1998)
Toyota Spacio

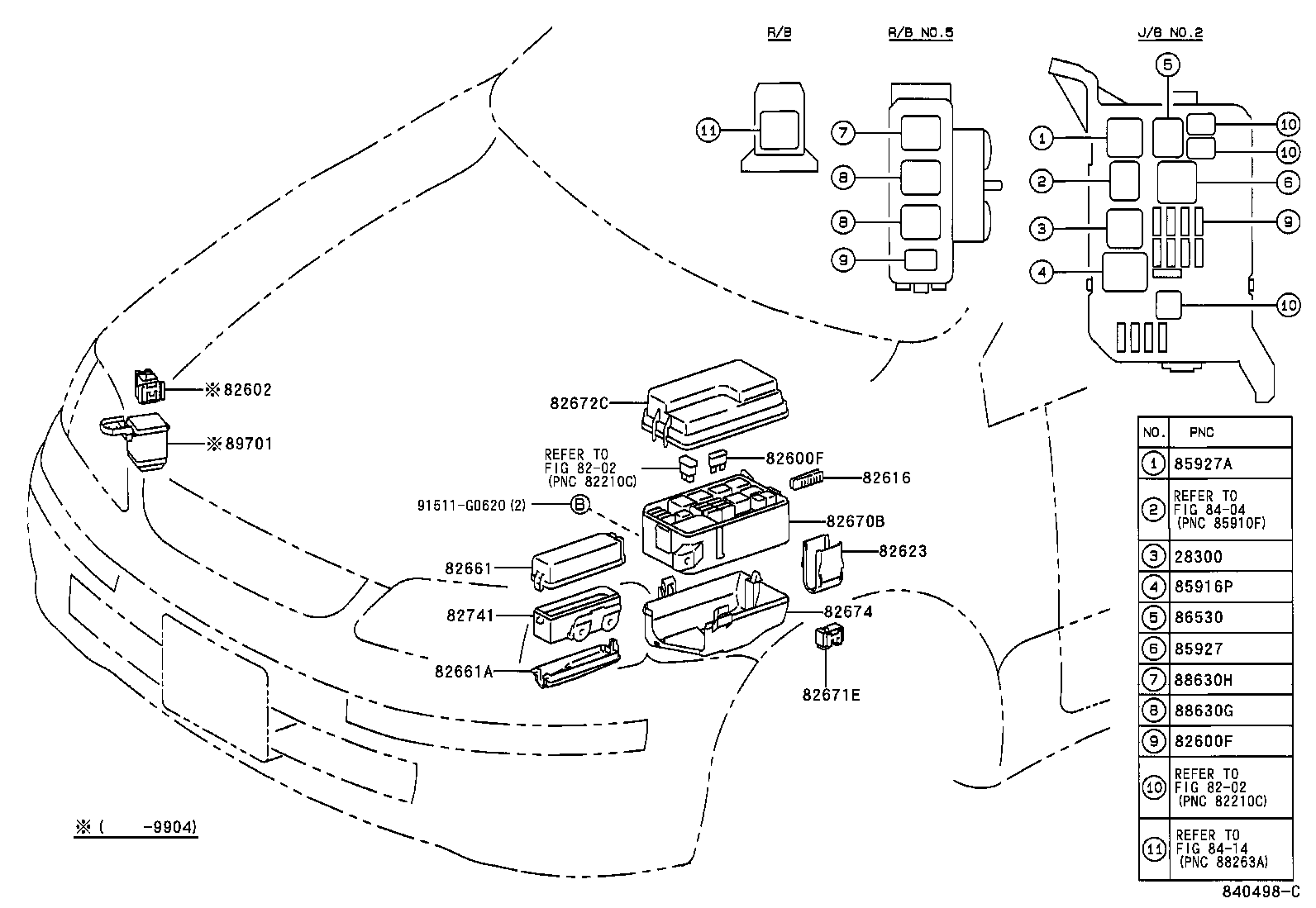

ILLUST NO. 2 OF 6(9805- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE..AE111 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AE111 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
AE111 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
AE111 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09003 |
AE111 15A |
1 | ||
| 90982-09011 |
AE111 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
AE111 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
AE111 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AE111 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
AE111 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
AE111 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09003 |
AE111 15A |
1 | ||
| 90982-09011 |
AE111 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
AE111 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
AE111 10A,MINI FUSE,RED |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-13010 |
AE111 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AE111 |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-13010 |
AE111 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12200 |
AE111 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-12220 |
AE111 |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82720-13010 |
AE111 |
1 | ||
| 82671E - BLOCK, JUNCTION | ||||
| 82671-30370 |
AE111 |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-13040 |
AE111 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-12010 |
AE111 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12010 |
AE111 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE111 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE111 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04002 |
AE111 |
1 | ||
| 85925-17010 |
AE111 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
AE111 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
AE111 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04004 |
AE111 |
1 | ||
| 89701 - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 91511-G0620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

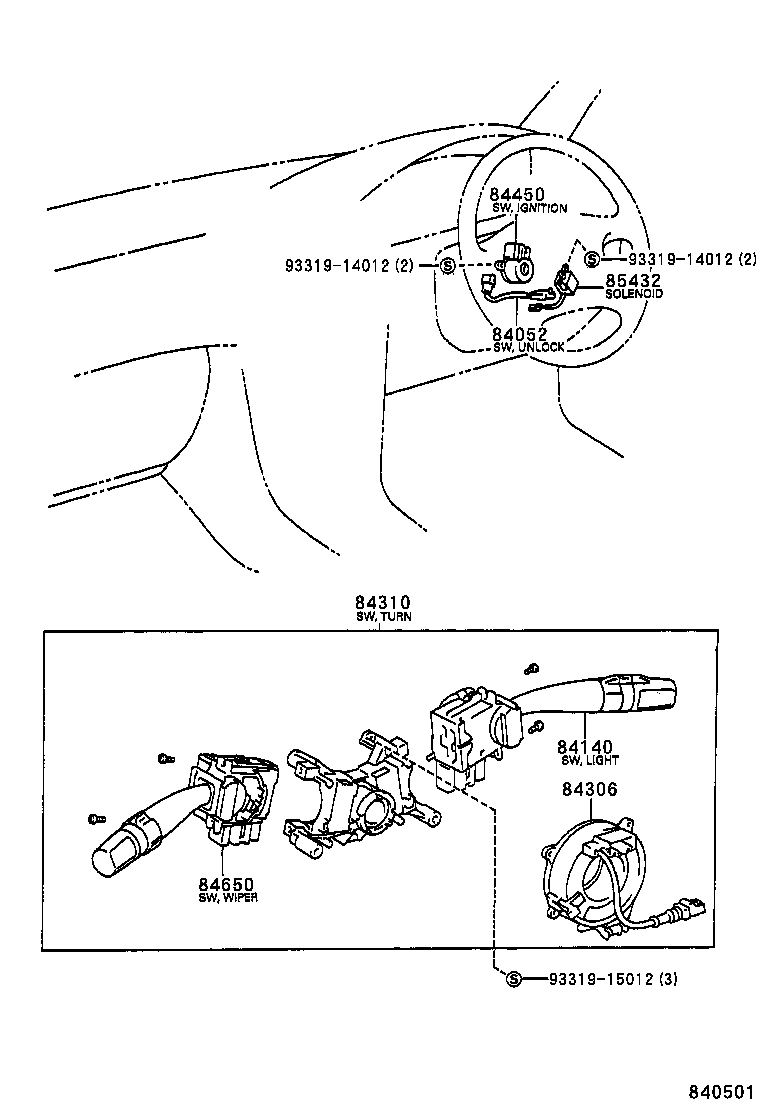

ILLUST NO. 5 OF 6(9805- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AE111 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12390 |
AE111 W(FOG LAMP) |
1 | ||
| 84140-12380 |
AE111 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12080 |
AE111 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E530 |
AE111 W(FOG LAMP) |
1 | ||
| 84310-1E520 |
AE111 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AE111 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A460 |
AE111 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12020 |
AE111 |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

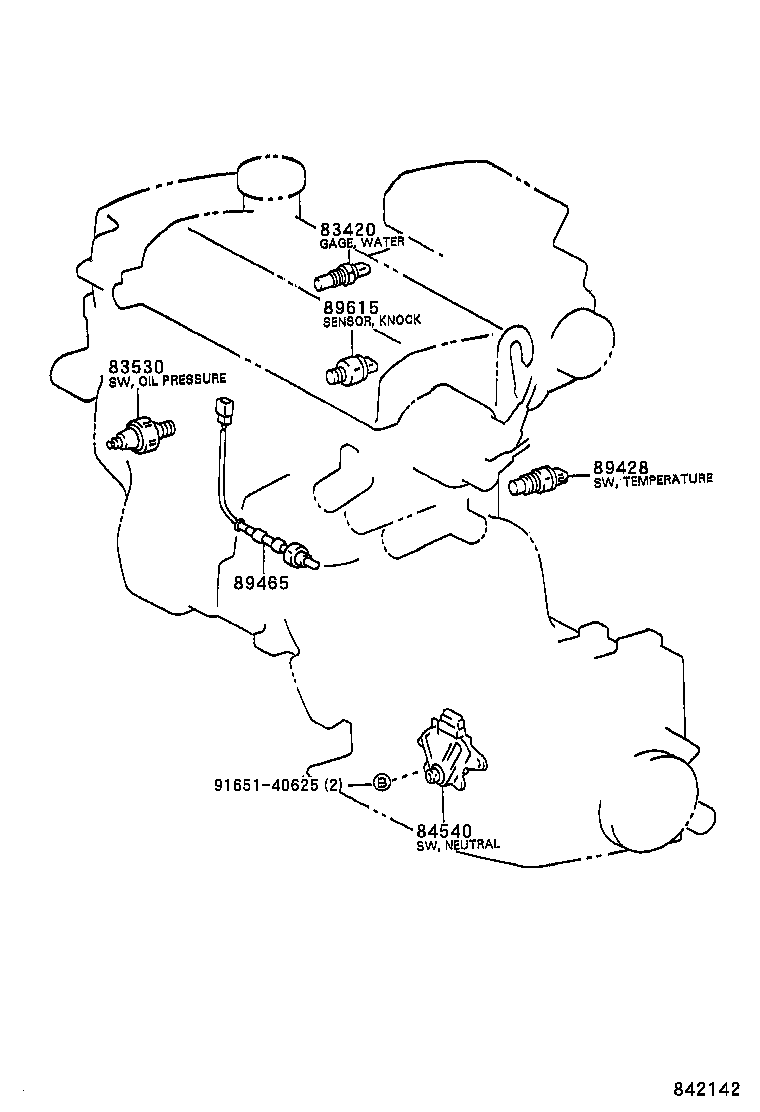

ILLUST NO. 1 OF 6(9805- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
AE111 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
AE111 YAZAKI |
1 | ||
| 83530-28020 |
AE111 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12200 |
AE111 TOKAIRIKA |
1 | ||
| 84540-12210 |
AE111 MATSUSHITA |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE111 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12520 |
AE111 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22050 |
AE111 TOYOTA |
1 | ||
| 89615-22030 |
AE111 MATSUSHITA |
1 | ||
| 89615-12030 |
AE111 TOYOTA |
1 | ||
| 89615-52010 |
AE111 MATSUSHITA |
1 | ||
| Common parts | ||||
| 91651-40625 | ||||

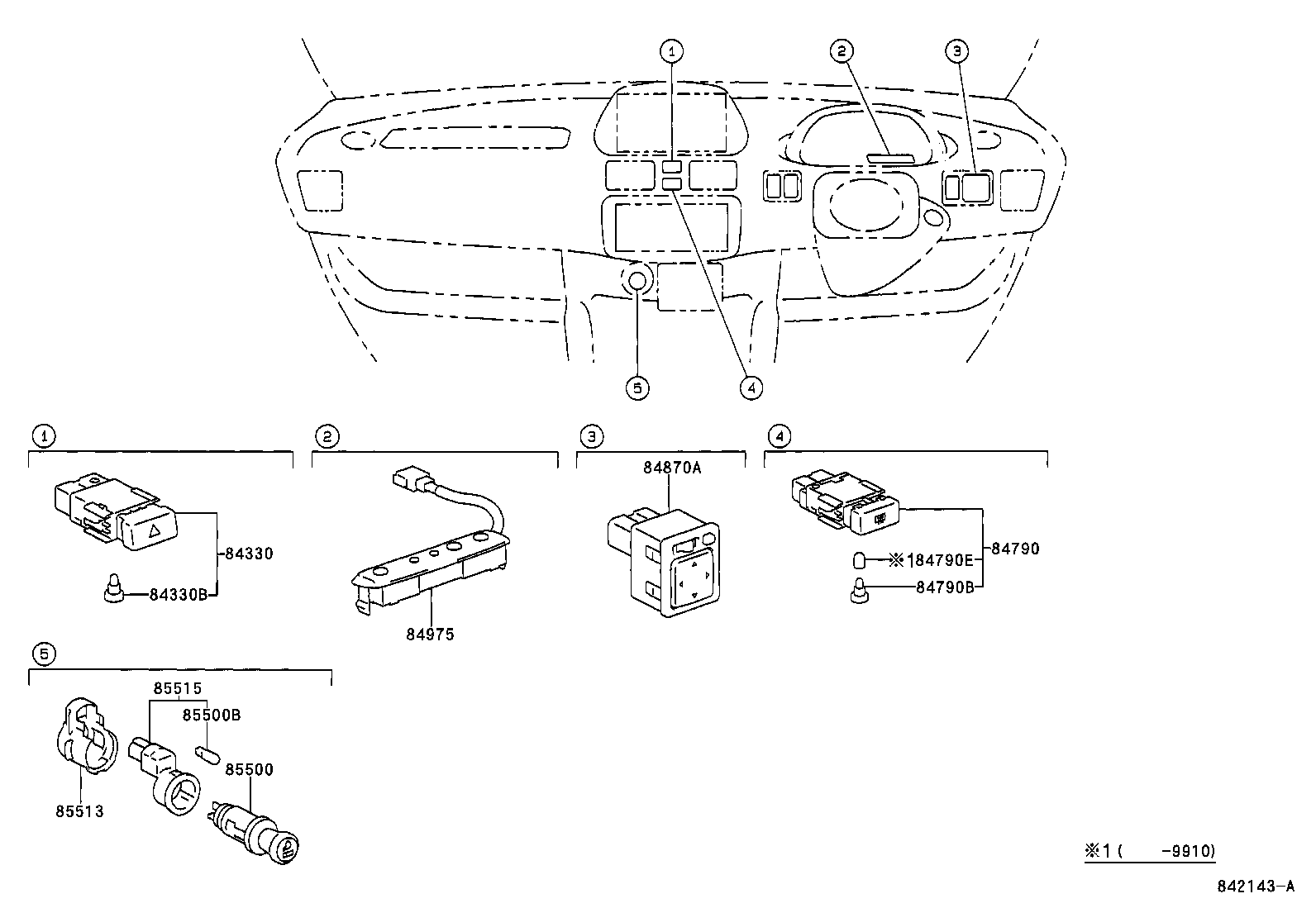

ILLUST NO. 3 OF 6(9805- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-13010 |
AE111 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
AE111 14V 0.91W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-13010 |
AE111 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01039 |
AE111 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
AE111 14V 0.91W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10180 |
AE111 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16040 |
AE111 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
AE111 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
AE111 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE111 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-14010 |
AE111 |
1 | ||

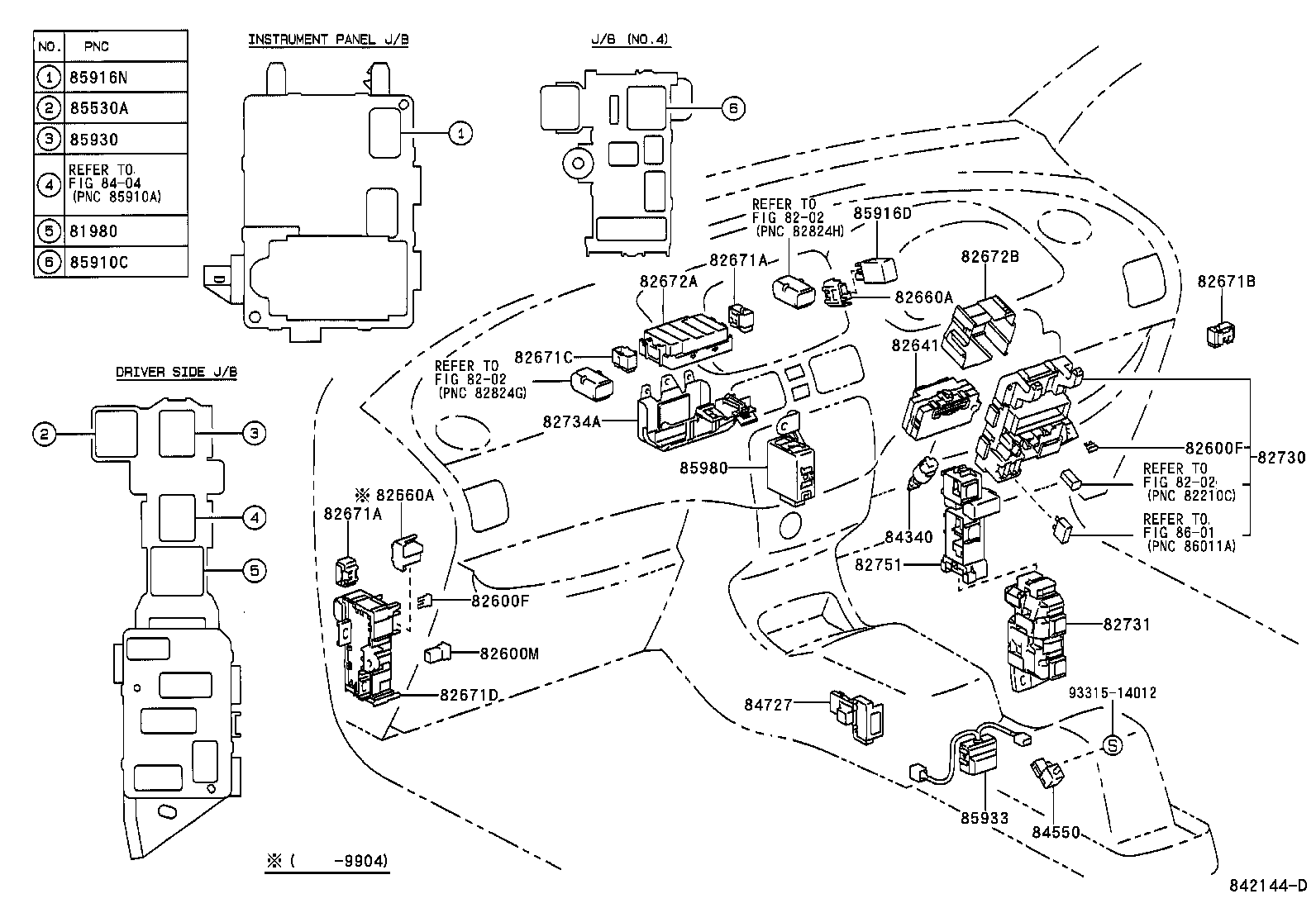

ILLUST NO. 4 OF 6(9805- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
AE111 |
1 | ||
| 81980-32010 |
AE111 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AE111 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
AE111 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
AE111 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09003 |
AE111 15A |
1 | ||
| 90982-09011 |
AE111 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
AE111 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
AE111 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AE111 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
AE111 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
AE111 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09003 |
AE111 15A |
1 | ||
| 90982-09011 |
AE111 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
AE111 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
AE111 10A,MINI FUSE,RED |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE111 40A,GREEN |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12120 |
AE111 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-20340 |
AE111 |
1 | ||
| 82660-20340 |
AE111 |
2 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-20340 |
AE111 |
1 | ||
| 82660-20340 |
AE111 |
2 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30340 |
AE111 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30340 |
AE111 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30360 |
AE111 |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE111 |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-12140 |
AE111 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12340 |
AE111 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12350 |
AE111 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-13010 |
AE111 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-12010 |
AE111 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-12010 |
AE111 |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-13010 |
AE111 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE111 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE111 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-12070 |
AE111 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02009 |
AE111 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE111 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
AE111 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AE111 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
AE111 |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-12121 |
AE111 |
1 | ||
| 85933-13030 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 85933-13010 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 85933-13020 |
AE111 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-13020 |
AE111 |
1 | ||
| Common parts | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8601 | ||||

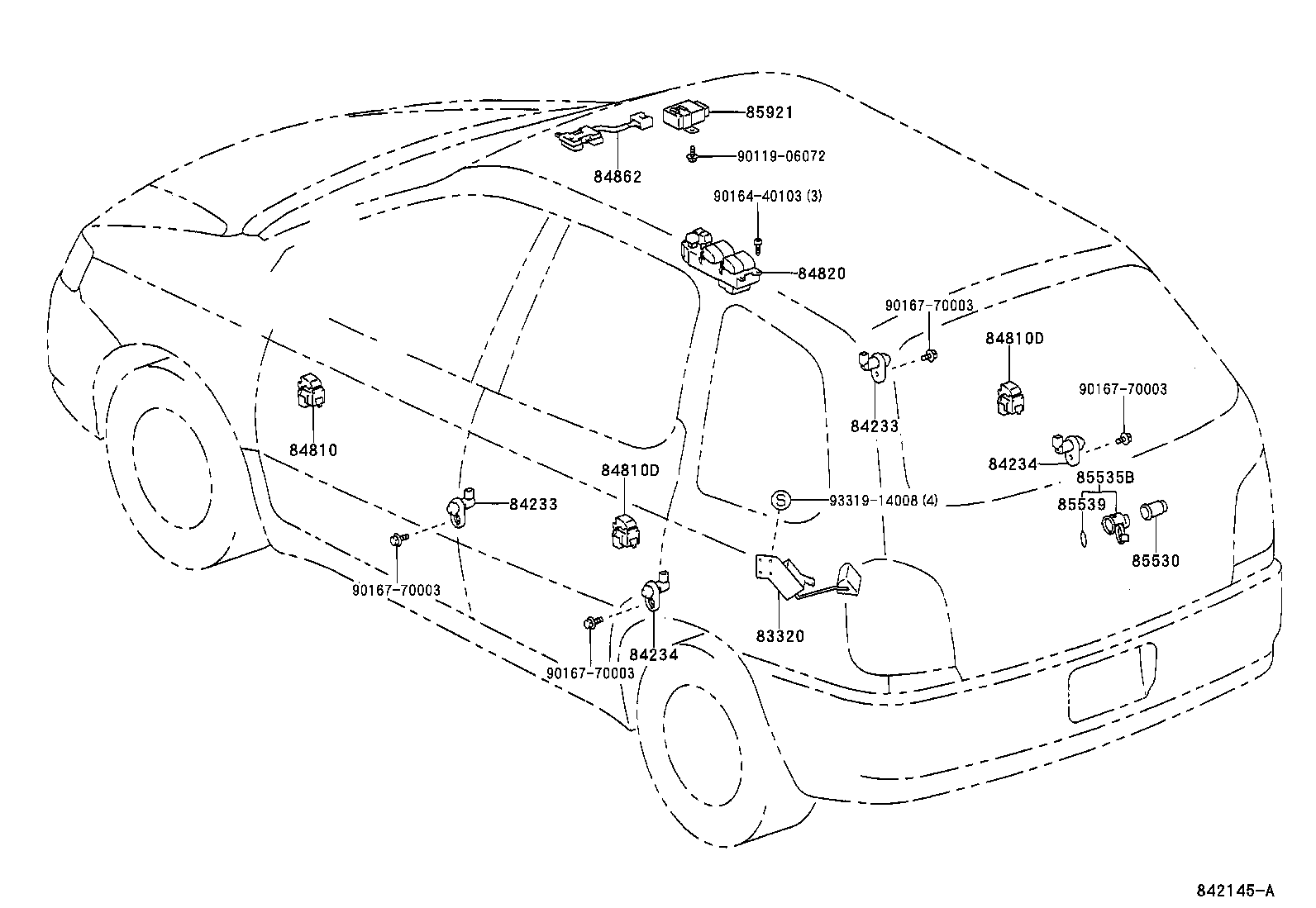

ILLUST NO. 6 OF 6(9805- )
ROOF,FLOOR,DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-13140 |
AE111 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
AE111 |
2 | ||
| 84231-53010 |
AE111 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
AE111 |
2 | ||
| 84231-53010 |
AE111 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AE111 |
2 | ||
| 84231-33071 |
AE111 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AE111 |
2 | ||
| 84231-33071 |
AE111 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE111 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE111 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE111 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-13050 |
AE111 |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-13010B1 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-13020 |
AE111 |
1 | ||
| 85530-33020 |
AE111 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-13020B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
AE111 |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-13020 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90164-40103 | ||||
| 90167-70003 | ||||
| 93319-14008 | ||||
