Toyota Spacio AE111 METER - JDM Part Detective

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
90981-11056	AE111 14V 80MA,TYPE B:REFER TO ILLUSTRATION	05/1998 - 12/2999	14
90981-11058	AE111 9V 3W,TYPE A:REFER TO ILLUSTRATION	05/1998 - 12/2999	3
83100B - BULB, COMBINATION METER, NO.1
90981-11056	AE111 14V 80MA,TYPE B:REFER TO ILLUSTRATION	05/1998 - 12/2999	14
90981-11058	AE111 9V 3W,TYPE A:REFER TO ILLUSTRATION	05/1998 - 12/2999	3
83100B - BULB, COMBINATION METER, NO.1
90981-11056	AE111 14V 80MA,TYPE B:REFER TO ILLUSTRATION	05/1998 - 12/2999	14
90981-11058	AE111 9V 3W,TYPE A:REFER TO ILLUSTRATION	05/1998 - 12/2999	3
83100B - BULB, COMBINATION METER, NO.1
90981-11056	AE111 14V 80MA,TYPE B:REFER TO ILLUSTRATION	05/1998 - 12/2999	14
90981-11058	AE111 9V 3W,TYPE A:REFER TO ILLUSTRATION	05/1998 - 12/2999	3
83132 - CASE, COMBINATION METER
F1423-13010	AE111	05/1998 - 12/2999	1
83132A - CASE, METER
F1425-13010	AE111	05/1998 - 12/2999	1
83138G - GLASS, COMBINATION METER
F1422-13011	AE111	05/1998 - 12/2999	1
83181A - SENSOR, SPEEDOMETER
83181-12020	AE111	05/1998 - 12/2999	1
83181B - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030	AE111	04/1999 - 12/2999	1
96711-24030	AE111	05/1998 - 04/1999	2
83247 - PLATE, METER CIRCUIT
F1439-13011	AE111	05/1998 - 04/1999	1
F1439-13050	AE111 MARK F	04/1999 - 12/2999	1
83291 - COMPUTER, COMBINATION METER
F1402-13010	AE111	05/1998 - 04/1999	1
F1402-13030	AE111	04/1999 - 12/2999	1
F1424 - CELL, COMPUTER METER LIQUID CRYSTAL
F1424-13010	AE111	05/1998 - 04/1999	1
F1424-13030	AE111	04/1999 - 12/2999	1
F1911 - HOLDER, LIQUID CRYSTAL CELL
F1911-13010	AE111	05/1998 - 12/2999	1
Common parts
90159-30025
90164-30009
93567-15016
Linked diagrams
8401

AE111R-FPPEK (1998)

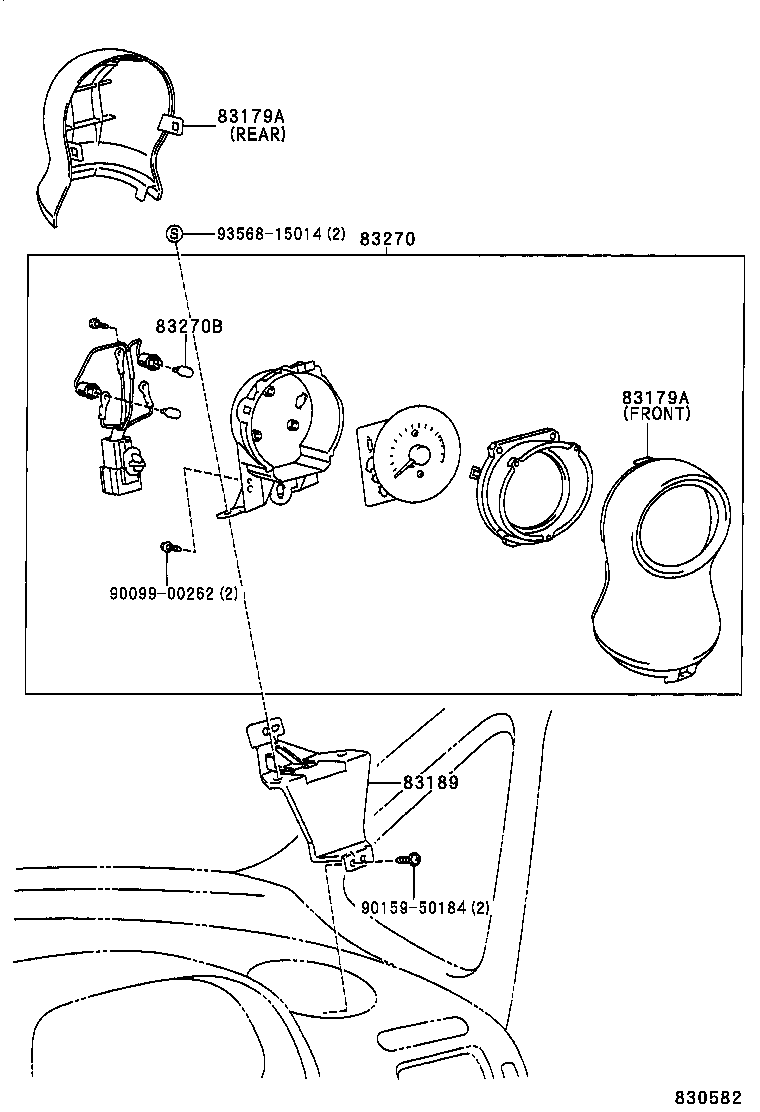

ILLUST NO. 1 OF 2(9805- )

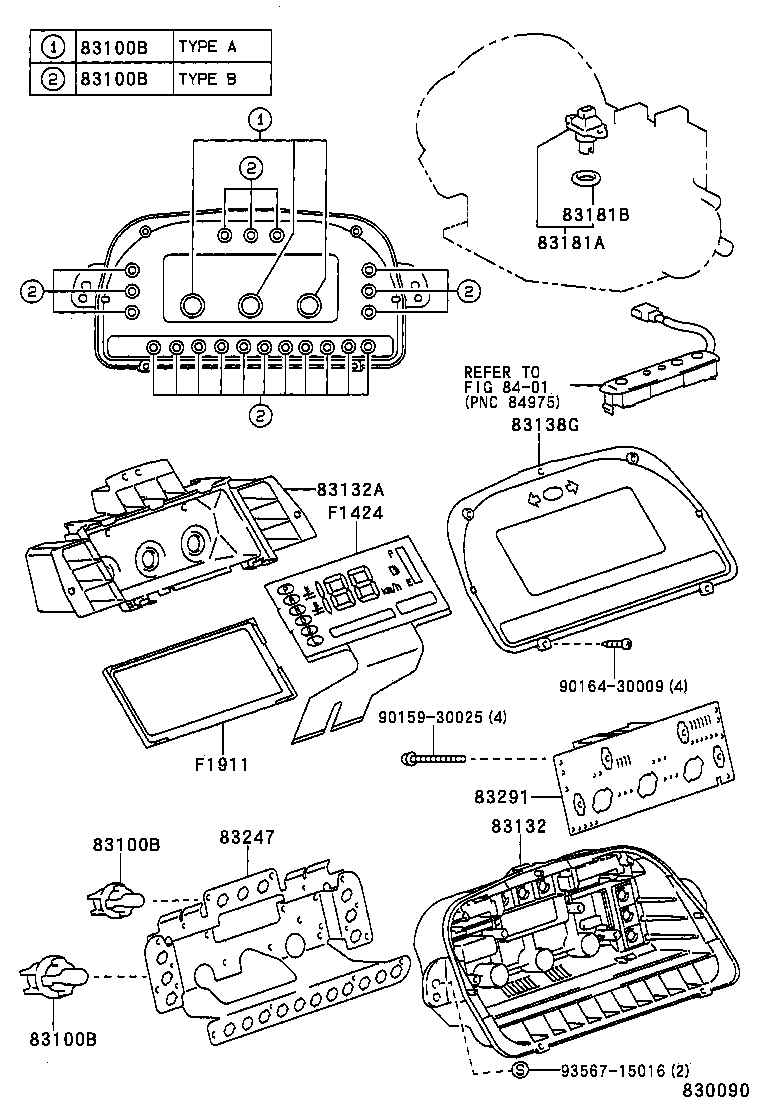

ILLUST NO. 2 OF 2(9912- )
