AE111R-FPPEK (1998)
Toyota Spacio

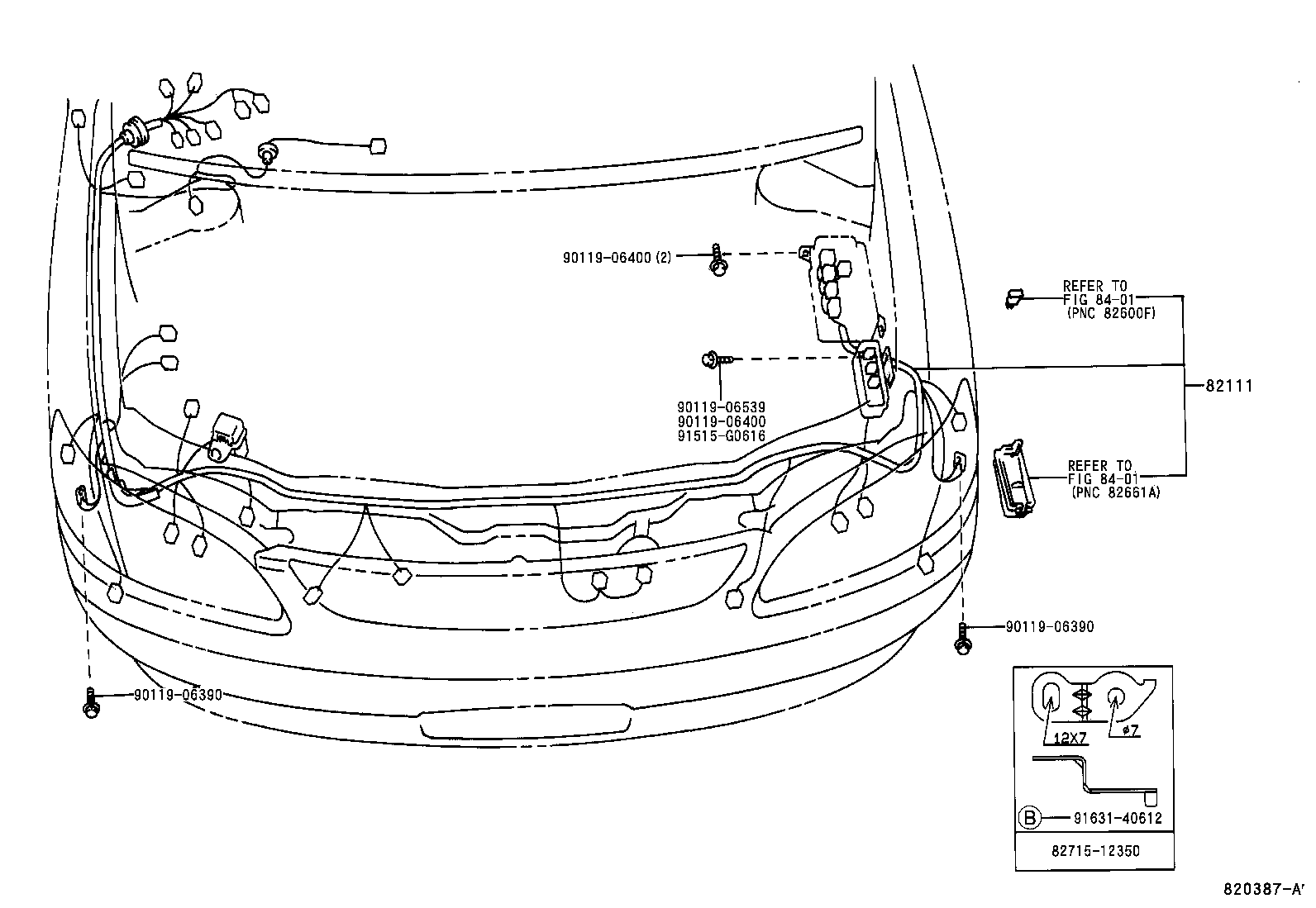

ILLUST NO. 1 OF 7(9805- )
ENGINE ROOM MAIN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-13540 |
AE111 W(MAKER OPTION FOG LAMP) |
1 | ||
| 82111-13530 |
AE111 |
1 | ||
| 82111-13600 |
AE111 |
1 | ||
| 82111-13610 |
AE111 W(FRONT FOG LAMP) |
1 | ||
| Common parts | ||||
| 82715-12350 | ||||
| 90119-06390 | ||||
| 90119-06400 | ||||
| 90119-06539 | ||||
| 91515-G0616 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

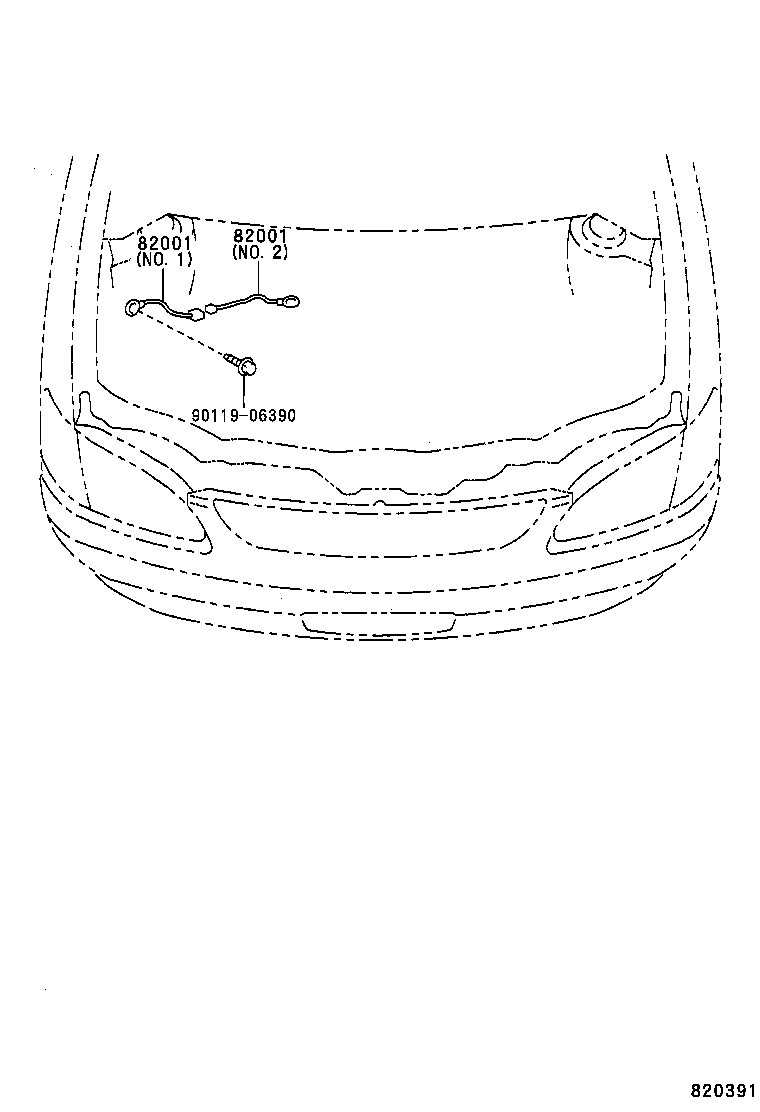

ILLUST NO. 6 OF 7(9805- )
CABEL BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE111 NO.1 |
1 | ||
| 90980-07299 |
AE111 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE111 NO.1 |
1 | ||
| 90980-07299 |
AE111 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||

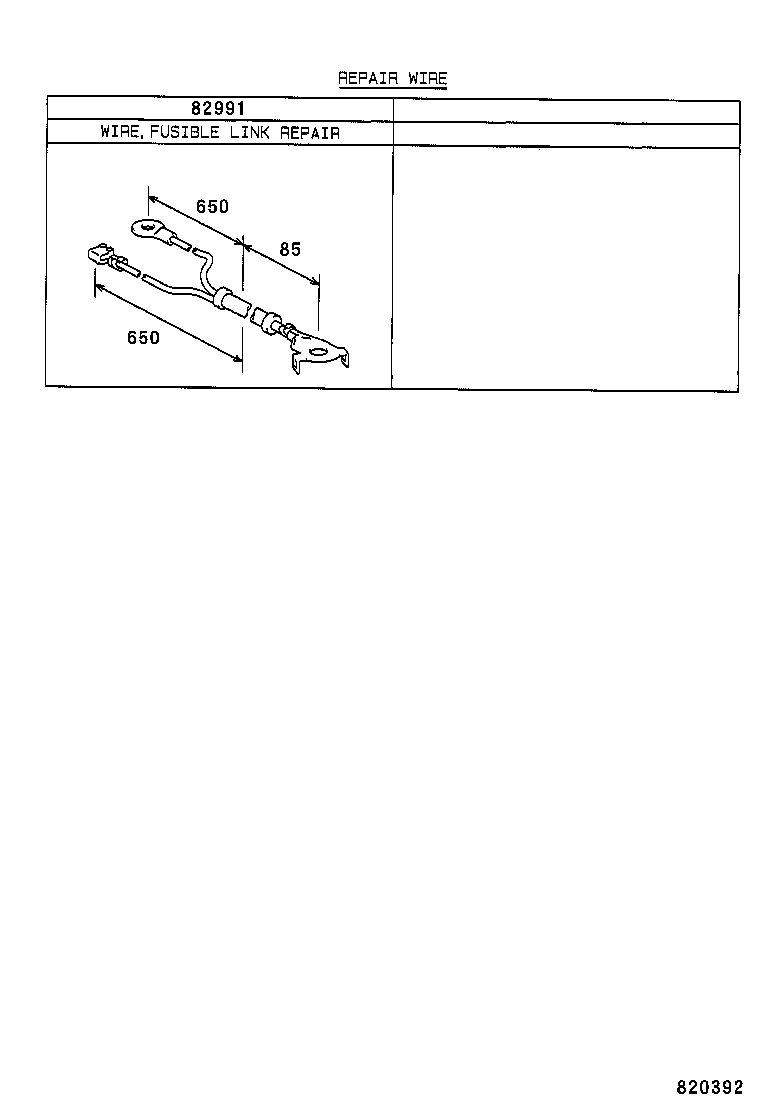

ILLUST NO. 7 OF 7(9805- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12070 |
AE111 |
1 | ||

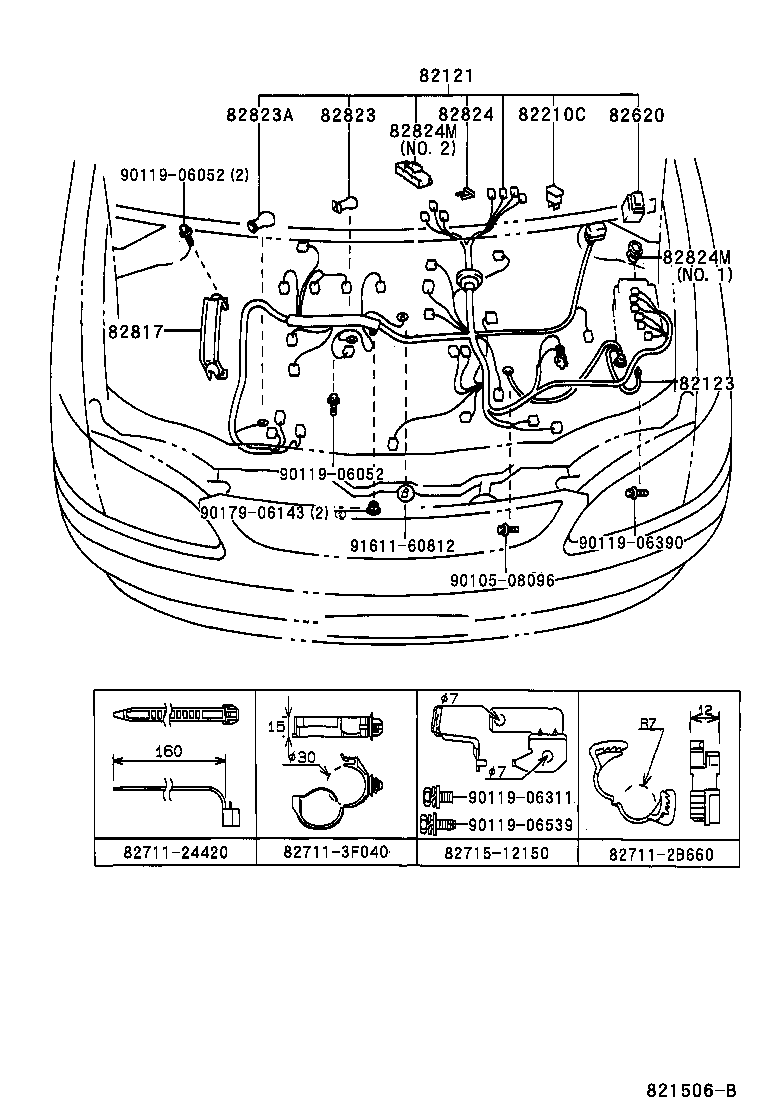

ILLUST NO. 2 OF 7(9805- )
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-13670 |
AE111 |
1 | ||
| 82121-13780 |
AE111 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-13010 |
AE111 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
AE111 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
AE111 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
AE111 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08228 |
AE111 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
AE111 100A,TERM.:MALE,BLUE |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-13020 |
AE111 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A070 |
AE111 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-12090 |
AE111 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-22060 |
AE111 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
AE111 |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE111 NO.1 |
1 | ||
| 82824-12190 |
AE111 NO.2 |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE111 NO.1 |
1 | ||
| 82824-12190 |
AE111 NO.2 |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82711-2B660 | ||||
| 82711-3F040 | ||||
| 82715-12150 | ||||
| 90105-08096 | ||||
| 90119-06052 | ||||
| 90119-06311 | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||

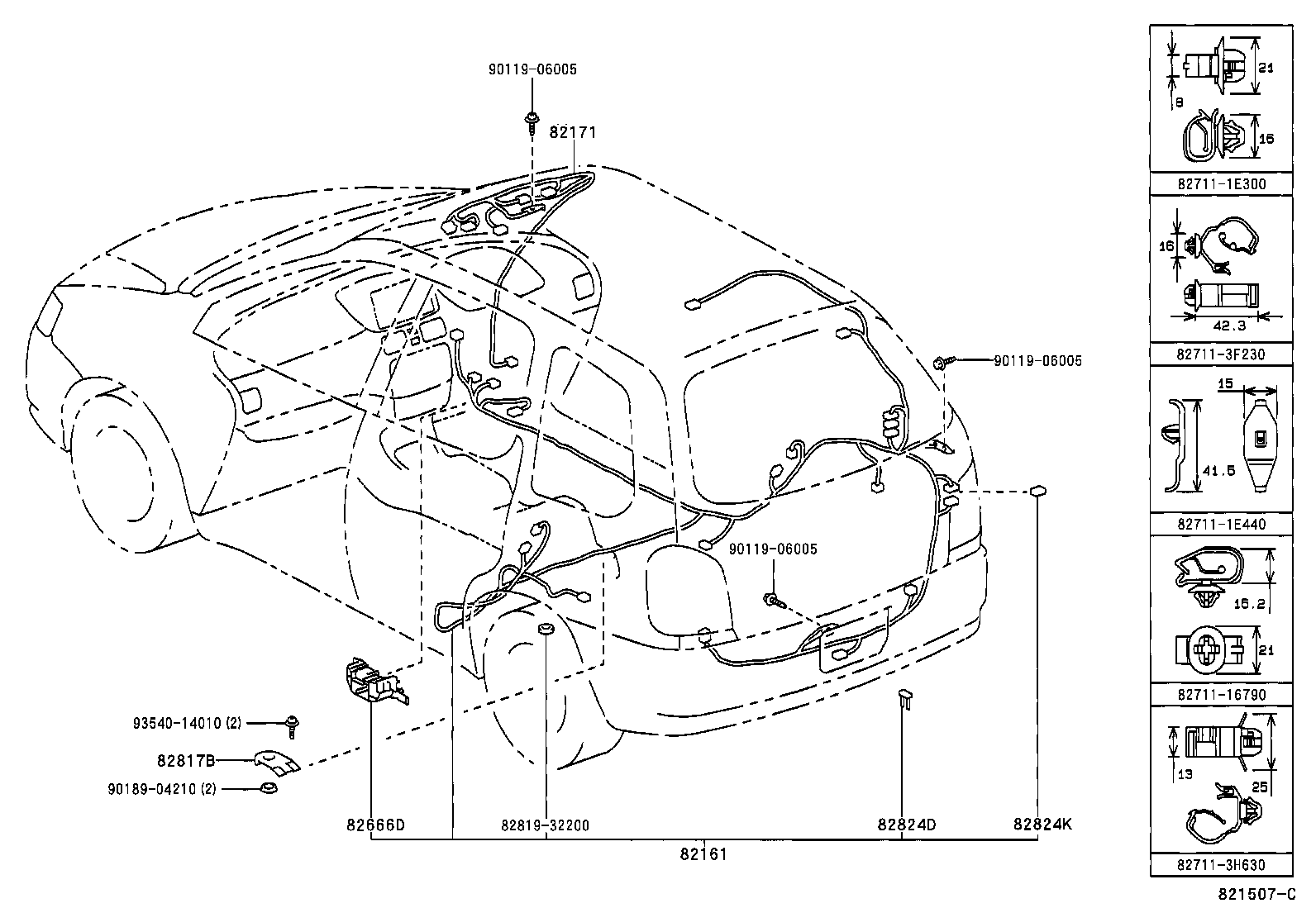

ILLUST NO. 5 OF 7(9805- )
FLOOR & ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-1F680 |
AE111 |
1 | ||
| 82161-1F570 |
AE111 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-13170 |
AE111 |
1 | ||
| 82171-13180 |
AE111 W(MOON ROOF) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12140 |
AE111 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-13150 |
AE111..06S |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
AE111 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
AE111 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E300 | ||||
| 82711-1E440 | ||||
| 82711-3F230 | ||||
| 82711-3H630 | ||||
| 82819-32200 | ||||
| 90119-06005 | ||||
| 90189-04210 | ||||
| 93540-14010 | ||||

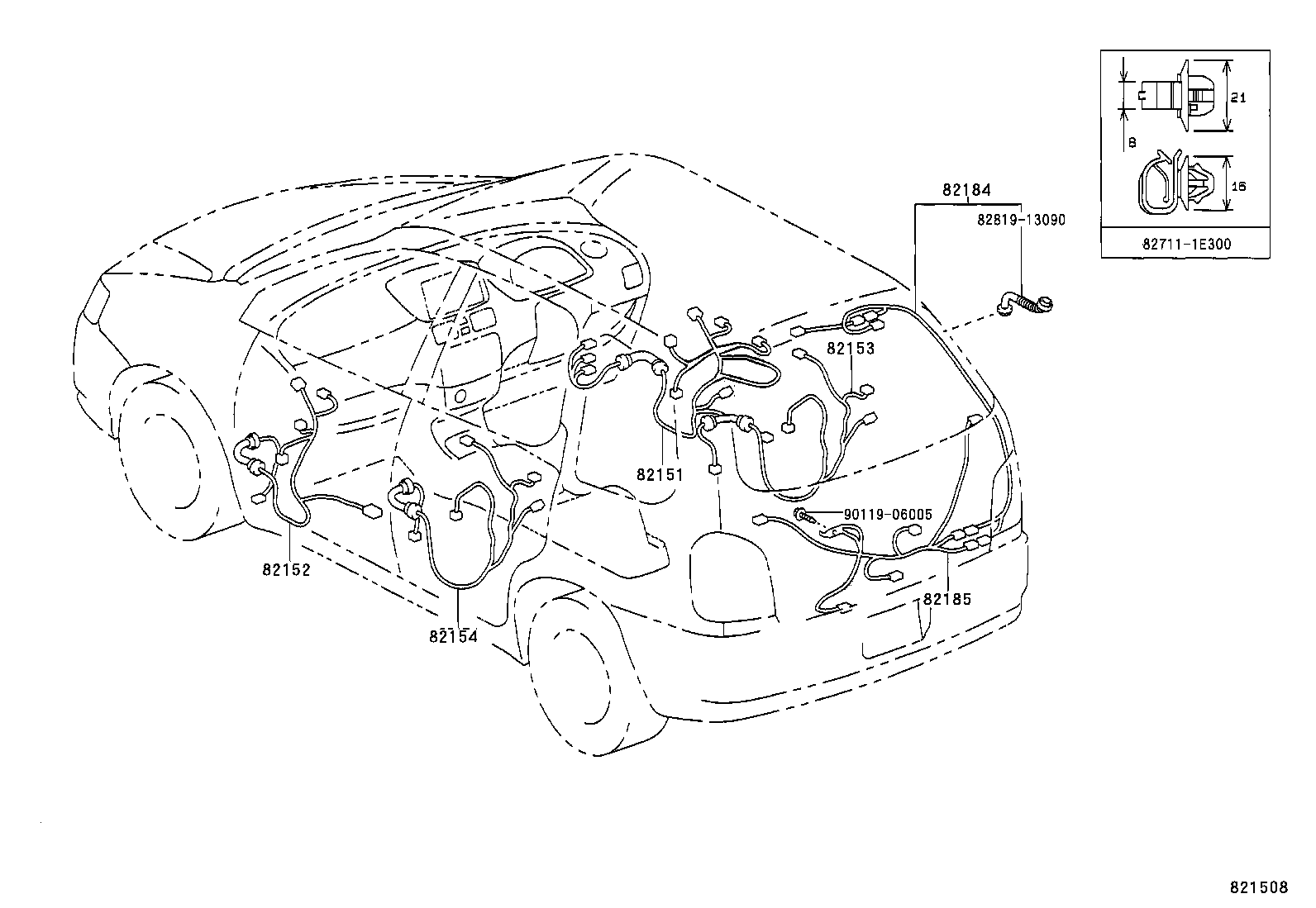

ILLUST NO. 4 OF 7(9805- )
DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-13170 |
AE111 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-13070 |
AE111 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-13020 |
AE111..06S |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-13020 |
AE111..06S |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-13220 |
AE111 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13460 |
AE111 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 82819-13090 | ||||
| 90119-06005 | ||||

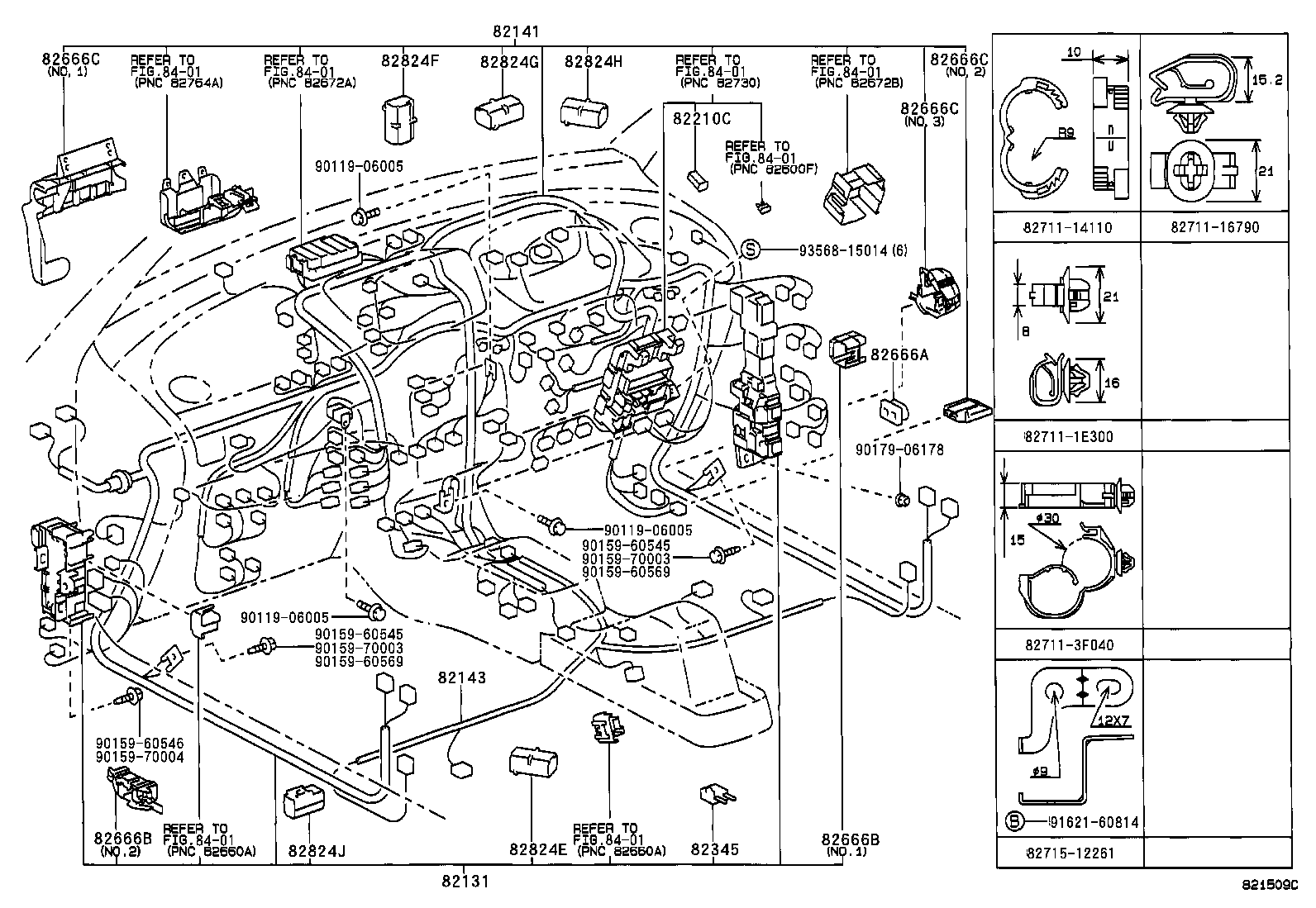

ILLUST NO. 3 OF 7(9805- )
COWL & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-13180 |
AE111 |
1 | ||
| 82135-13100 |
AE111 W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82135-13090 |
AE111 |
1 | ||
| 82135-13190 |
AE111 W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1F830 |
AE111 |
1 | ||
| 82145-13151 |
AE111 |
1 | ||
| 82145-13150 |
AE111 |
1 | ||
| 82141-1F840 |
AE111 W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82145-13160 |
AE111 W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82145-13161 |
AE111 W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-13080 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 82143-13140 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 82143-13070 |
AE111 |
1 | ||
| 82143-13130 |
AE111 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
AE111 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
AE111 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
AE111 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08228 |
AE111 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
AE111 100A,TERM.:MALE,BLUE |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE111 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-13040 |
AE111 |
1 | ||
| 82666-13041 |
AE111 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12150 |
AE111 NO.2 |
1 | ||
| 82666-12110 |
AE111 NO.1 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12150 |
AE111 NO.2 |
1 | ||
| 82666-12110 |
AE111 NO.1 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-13020 |
AE111 NO.1 |
1 | ||
| 82666-12180 |
AE111 NO.2 |
1 | ||
| 82666-12220 |
AE111 NO.3 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-13020 |
AE111 NO.1 |
1 | ||
| 82666-12180 |
AE111 NO.2 |
1 | ||
| 82666-12220 |
AE111 NO.3 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-13020 |
AE111 NO.1 |
1 | ||
| 82666-12180 |
AE111 NO.2 |
1 | ||
| 82666-12220 |
AE111 NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
AE111 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE111 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
AE111 |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
AE111 |
2 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-44040 |
AE111 |
2 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-16790 | ||||
| 82711-1E300 | ||||
| 82711-3F040 | ||||
| 82715-12261 | ||||
| 90119-06005 | ||||
| 90159-60545 | ||||
| 90159-60546 | ||||
| 90159-60569 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90179-06178 | ||||
| 91621-60814 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
