AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

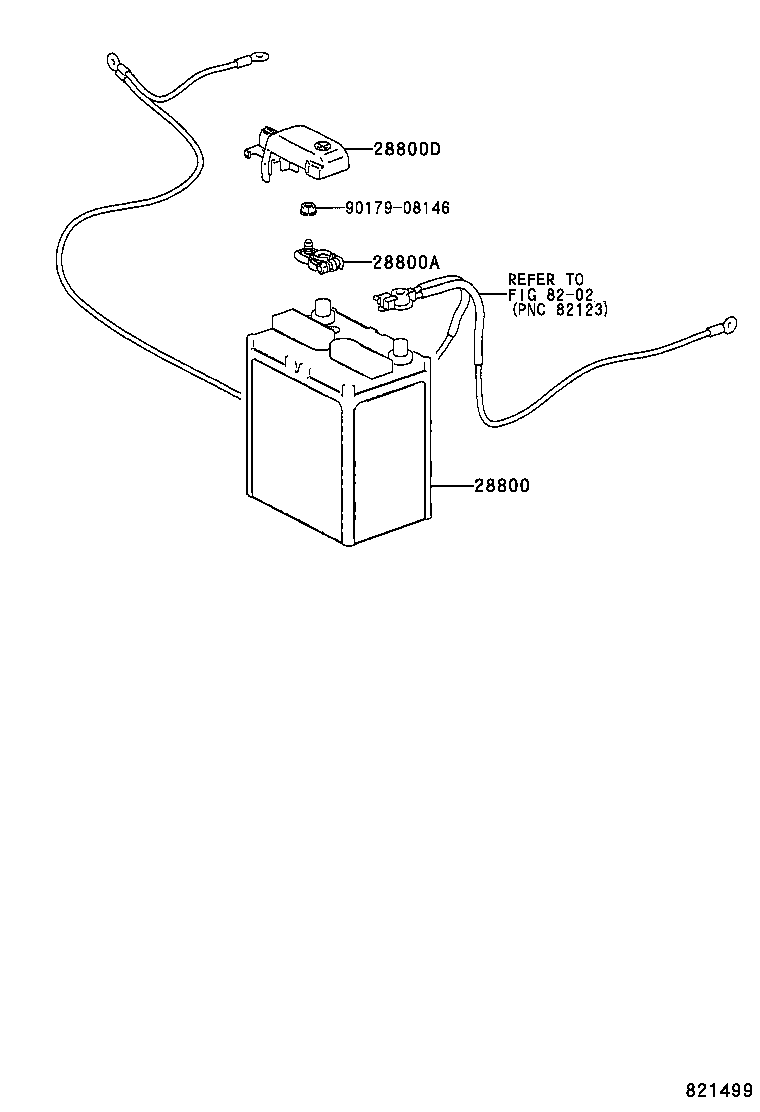

Click highlighted areas on diagram

diagram 28800 28800A 28800D 8202 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-16070

4AFE..AE111

34B19L

 1
28800-16061

4AFE..AE111

34B19L,MATSUSHITA

 1
28800-16170

4AFE..AE111

34B19L,SINKOUBE

 1
28800-26040

4AFE..AE111

34B19L,GS

 1
28800-16041

4AFE..AE111

34B19L,GS

 1
28800-16071

4AFE..AE111

34B19L,FURUKAWA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05034

4AFE..AE111

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12290

4AFE..AE111

 1
Common parts
90179-08146
Linked diagrams
8202
