AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

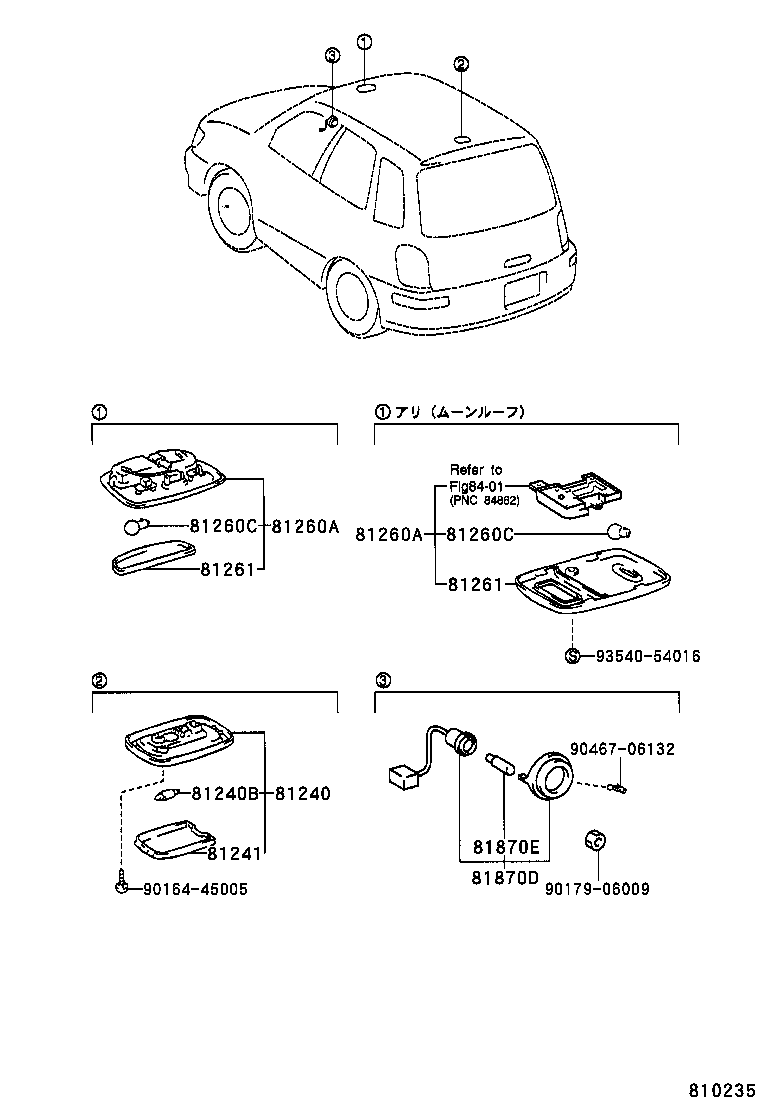

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260A 81260A 81260C 81260C 81261 81261 81870D 81870E 9016445005 9017906009 9046706132 9354054016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12060B6

AE111

MD.CHARCOAL,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AE111

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE111

 1
81260A - LAMP ASSY, MAP
81260-16061B1

AE111

MD.CHARCOAL,TRIM1#

 1
81260-13010B2

AE111

W(MOON ROOF),MD.CHARCOAL,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-16061B1

AE111

MD.CHARCOAL,TRIM1#

 1
81260-13010B2

AE111

W(MOON ROOF),MD.CHARCOAL,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

AE111

12V 8W

 2
90981-12014

AE111

12V 10W,W(MOON ROOF)

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

AE111

12V 8W

 2
90981-12014

AE111

12V 10W,W(MOON ROOF)

 1
81261 - LENS AND COVER, MAP LAMP
81261-16060

AE111

 1
81261-13010B1

AE111

W(MOON ROOF),MD. CHARCOAL,TRIM1#

 1
81261 - LENS AND COVER, MAP LAMP
81261-16060

AE111

 1
81261-13010B1

AE111

W(MOON ROOF),MD. CHARCOAL,TRIM1#

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-20050

AE111

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

AE111

14V 1.4W

 1
Common parts
90164-45005
90179-06009
90467-06132
93540-54016
