AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

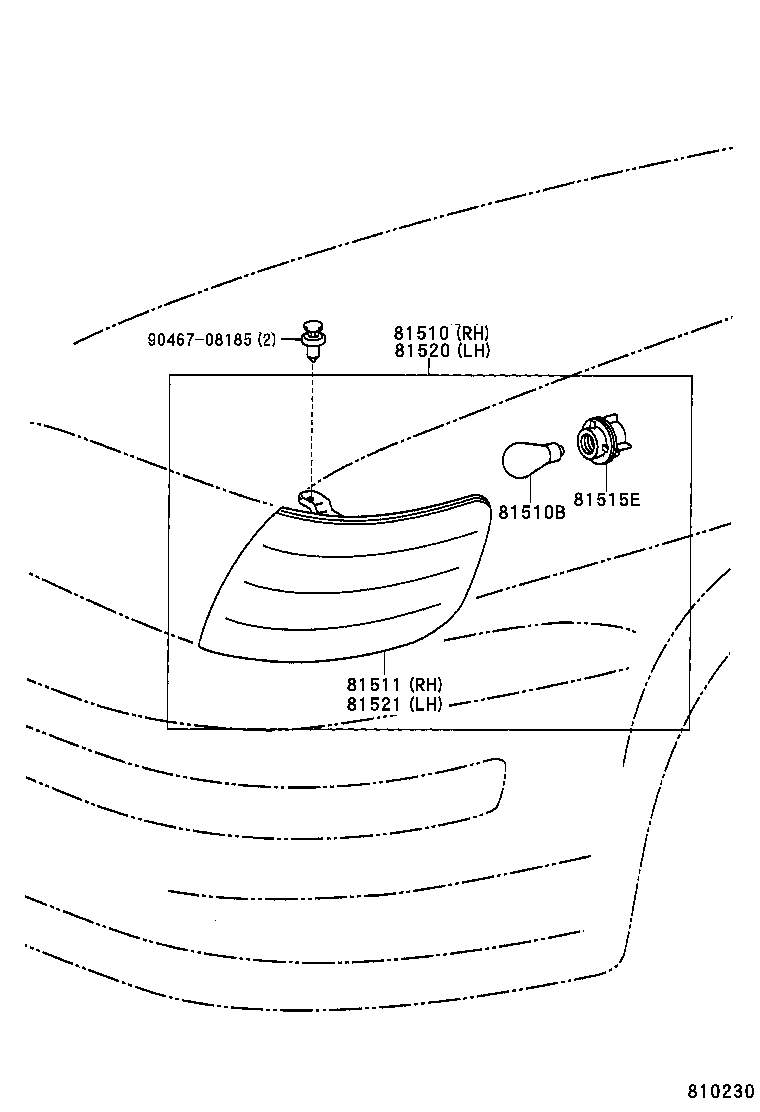

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515E 81520 81521 9046708185
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-13030

AE111

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009

AE111

12V 21W,AMBER

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-13030

AE111

 1
81515E - SOCKET PLUG ASSY
90075-60006

AE111

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-13030

AE111

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-13030

AE111

 1
Common parts
90467-08185
