AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

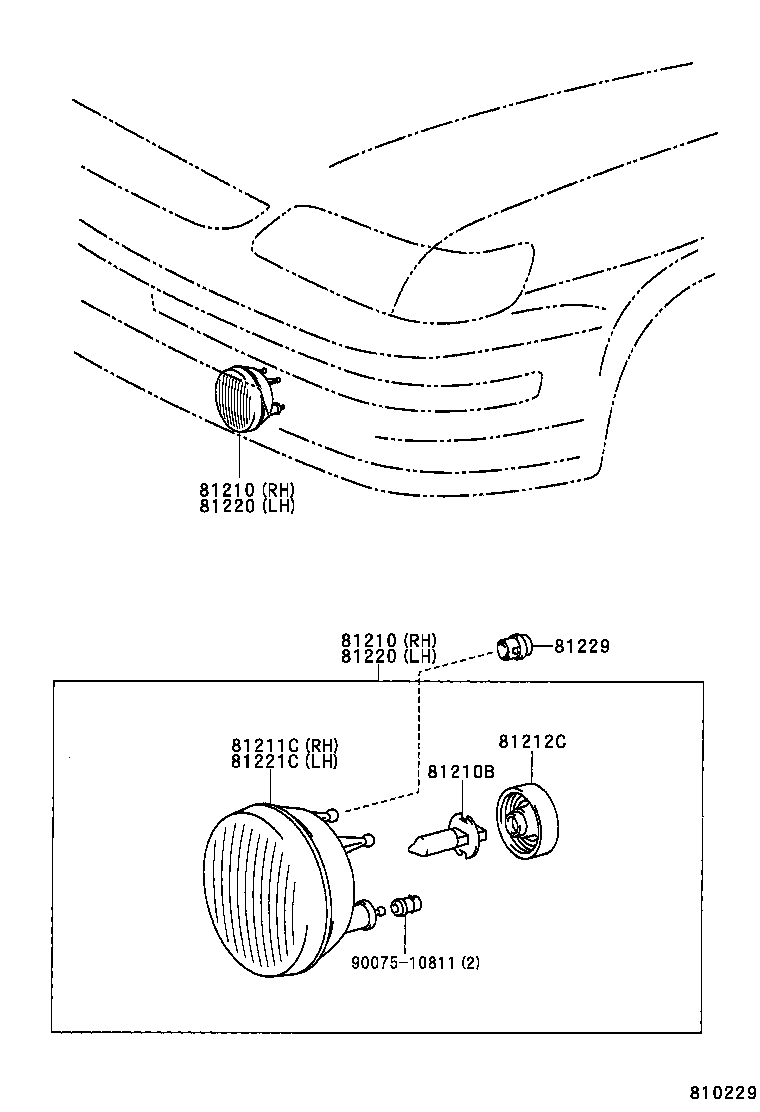

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-13040 |
AE111 |
1 | ||
| 81210-13090 |
AE111 |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-13040 |
AE111 |
1 | ||
| 81210-13090 |
AE111 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13060 |
AE111 12V 55W,HALOGEN |
2 | ||
| 90981-13057 |
AE111 12V 35W |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-13040 |
AE111 |
1 | ||
| 81211-13090 |
AE111 |
1 | ||
| 81212C - COVER, FOG LAMP | ||||
| 90075-65003 |
AE111 |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-13040 |
AE111 |
1 | ||
| 81220-13090 |
AE111 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-13040 |
AE111 |
1 | ||
| 81220-13090 |
AE111 |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-13040 |
AE111 |
1 | ||
| 81221-13090 |
AE111 |
1 | ||
| 81229 - BRACKET, FOG LAMP | ||||
| 81481-10030 |
AE111 |
4 | ||
| Common parts | ||||
| 90075-10811 | ||||
(9904- )

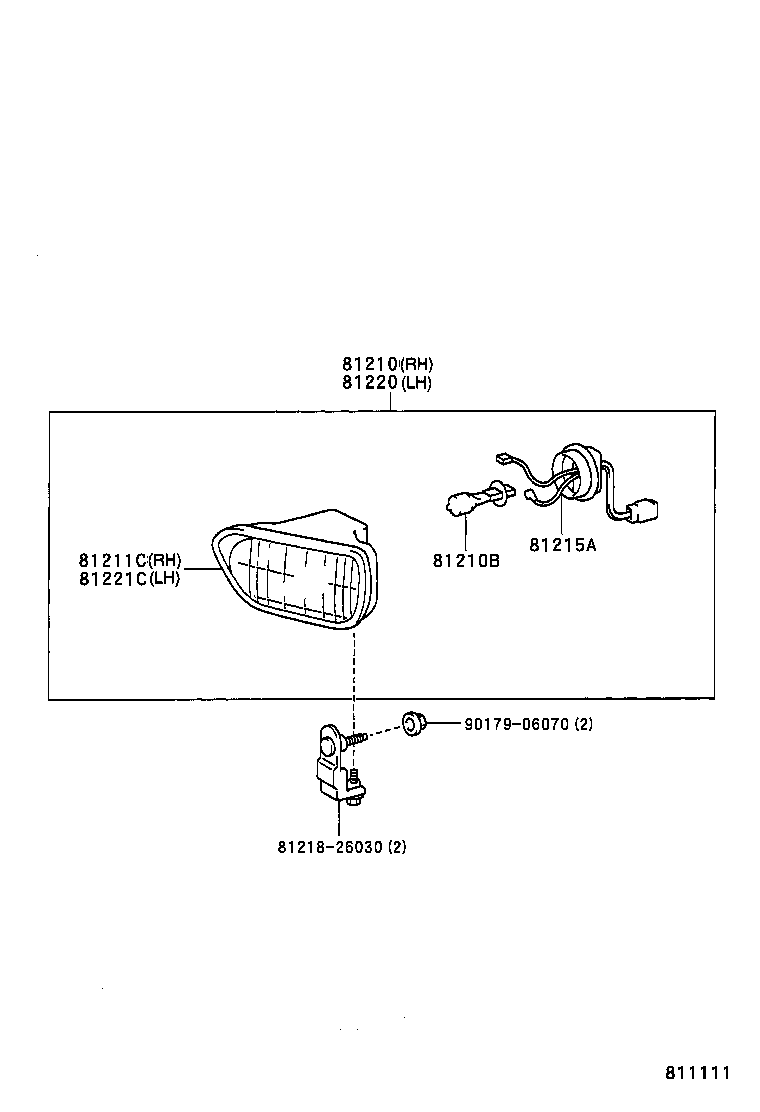

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-13040 |
AE111 |
1 | ||
| 81210-13090 |
AE111 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13060 |
AE111 12V 55W,HALOGEN |
2 | ||
| 90981-13057 |
AE111 12V 35W |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-13040 |
AE111 |
1 | ||
| 81211-13090 |
AE111 |
1 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-13090 |
AE111 |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-13040 |
AE111 |
1 | ||
| 81220-13090 |
AE111 |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-13040 |
AE111 |
1 | ||
| 81221-13090 |
AE111 |
1 | ||
| Common parts | ||||
| 81218-26030 | ||||
| 90179-06070 | ||||
