AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

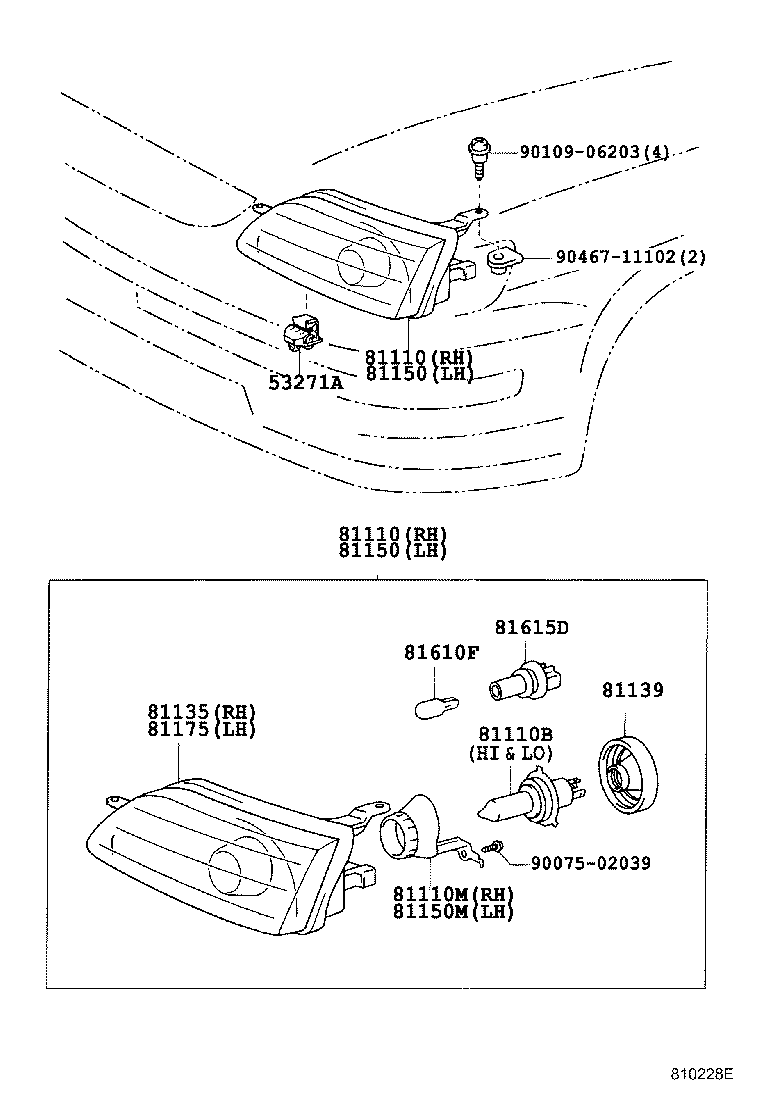

(9805-9904)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
AE111 |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-13130 |
AE111 |
1 | ||
| 81110-13210 |
AE111 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-13130 |
AE111 |
1 | ||
| 81110-13210 |
AE111 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 |
AE111 12V 60/55W,*HAL *WH |
2 | ||
| 81110M - SHADE, BULB, RH | ||||
| 90075-99126 |
AE111 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-13130 |
AE111 |
1 | ||
| 81130-13210 |
AE111 |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
AE111 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-13130 |
AE111 |
1 | ||
| 81150-13210 |
AE111 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-13130 |
AE111 |
1 | ||
| 81150-13210 |
AE111 |
1 | ||
| 81150M - SHADE, BULB, LH | ||||
| 90075-99127 |
AE111 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-13130 |
AE111 |
1 | ||
| 81170-13210 |
AE111 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
AE111 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
AE111 |
2 | ||
| Common parts | ||||
| 90075-02039 | ||||
| 90109-06203 | ||||
| 90467-11102 | ||||

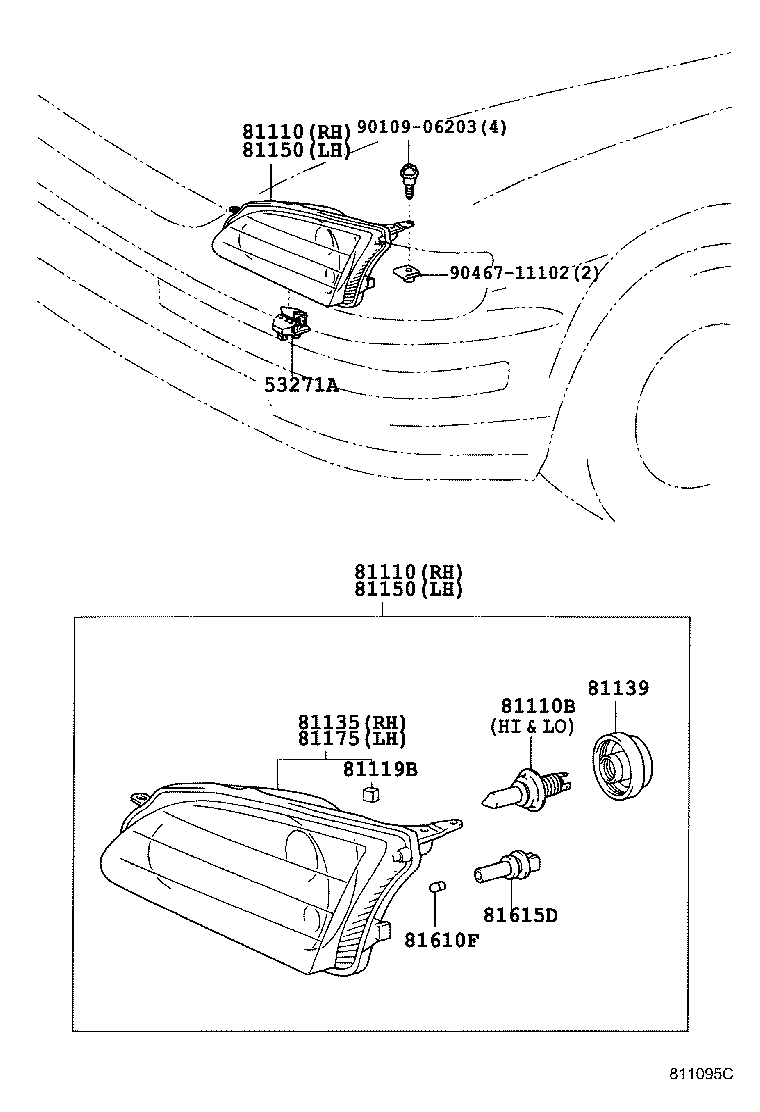

(9904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
AE111 |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-13130 |
AE111 |
1 | ||
| 81110-13210 |
AE111 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-13130 |
AE111 |
1 | ||
| 81110-13210 |
AE111 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 |
AE111 12V 60/55W,*HAL *WH |
2 | ||
| 81119B - FILTER, HEADLAMP | ||||
| 81119-13210 |
AE111 |
4 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-13130 |
AE111 |
1 | ||
| 81130-13210 |
AE111 |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
AE111 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-13130 |
AE111 |
1 | ||
| 81150-13210 |
AE111 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-13130 |
AE111 |
1 | ||
| 81150-13210 |
AE111 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-13130 |
AE111 |
1 | ||
| 81170-13210 |
AE111 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
AE111 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
AE111 |
2 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90467-11102 | ||||
