AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

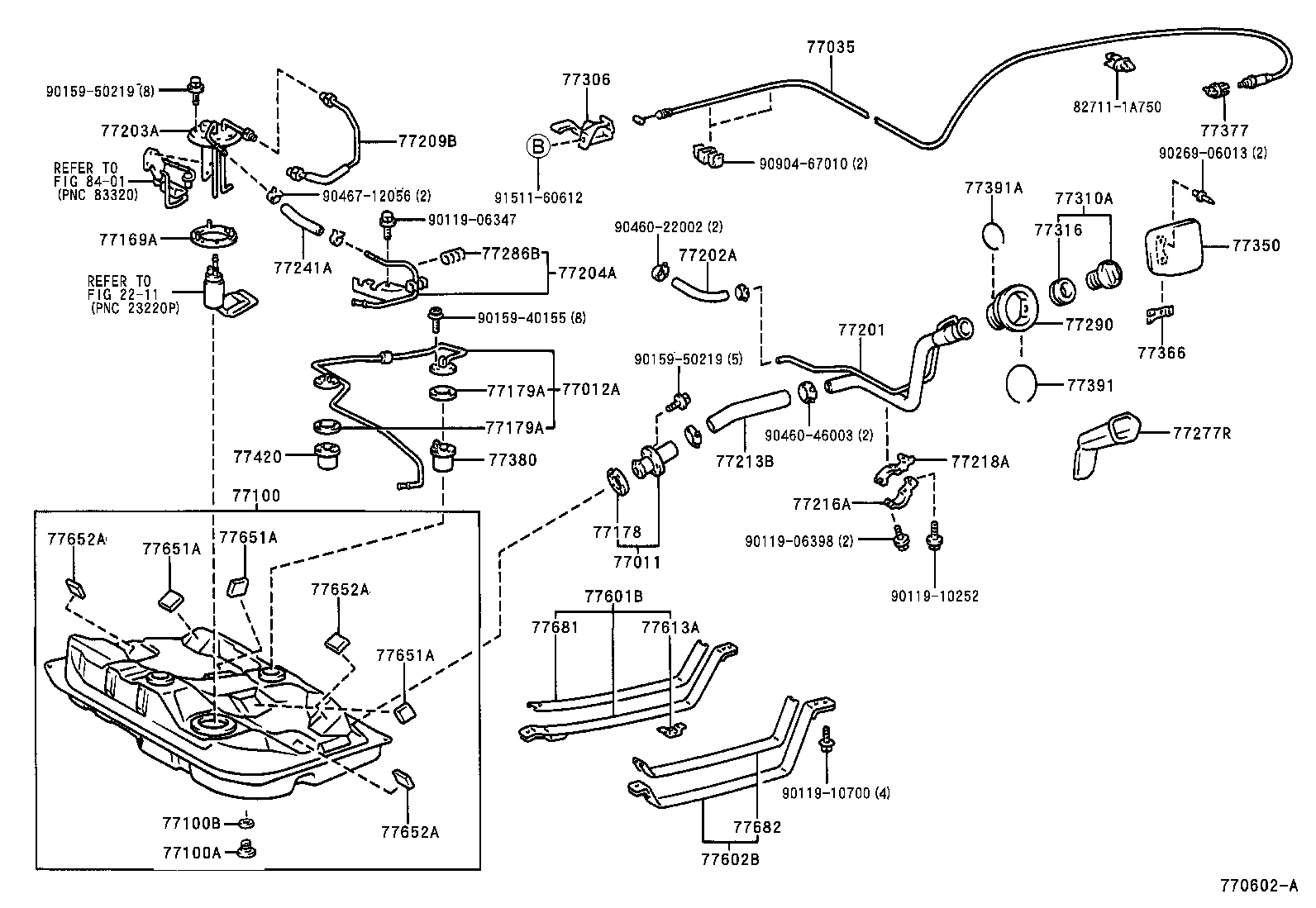

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12090 |
AE111 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12140 |
AE111 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-13080 |
AE111 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-13910 |
AE111 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE111 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE111 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-12030 |
AE111 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE111 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE111 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE111 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12500 |
AE111 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95311-13022 |
AE111 L=220 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-12170 |
AE111 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-12020 |
AE111 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-12080 |
AE111 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12160 |
AE111 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12070 |
AE111 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12030 |
AE111 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
AE111 *H,L=110 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12160 |
AE111 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-12040 |
AE111 |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-13030 |
AE111 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13060 |
AE111 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
AE111 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE111 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13060 |
AE111 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12090 |
AE111 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AE111 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
AE111 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AE111 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12030 |
AE111 |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
AE111 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12210 |
AE111 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12130 |
AE111 |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
AE111 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE111 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE111 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE111 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE111 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE111 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE111 |
3 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
AE111 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AE111 |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-12056 | ||||
| 90904-67010 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

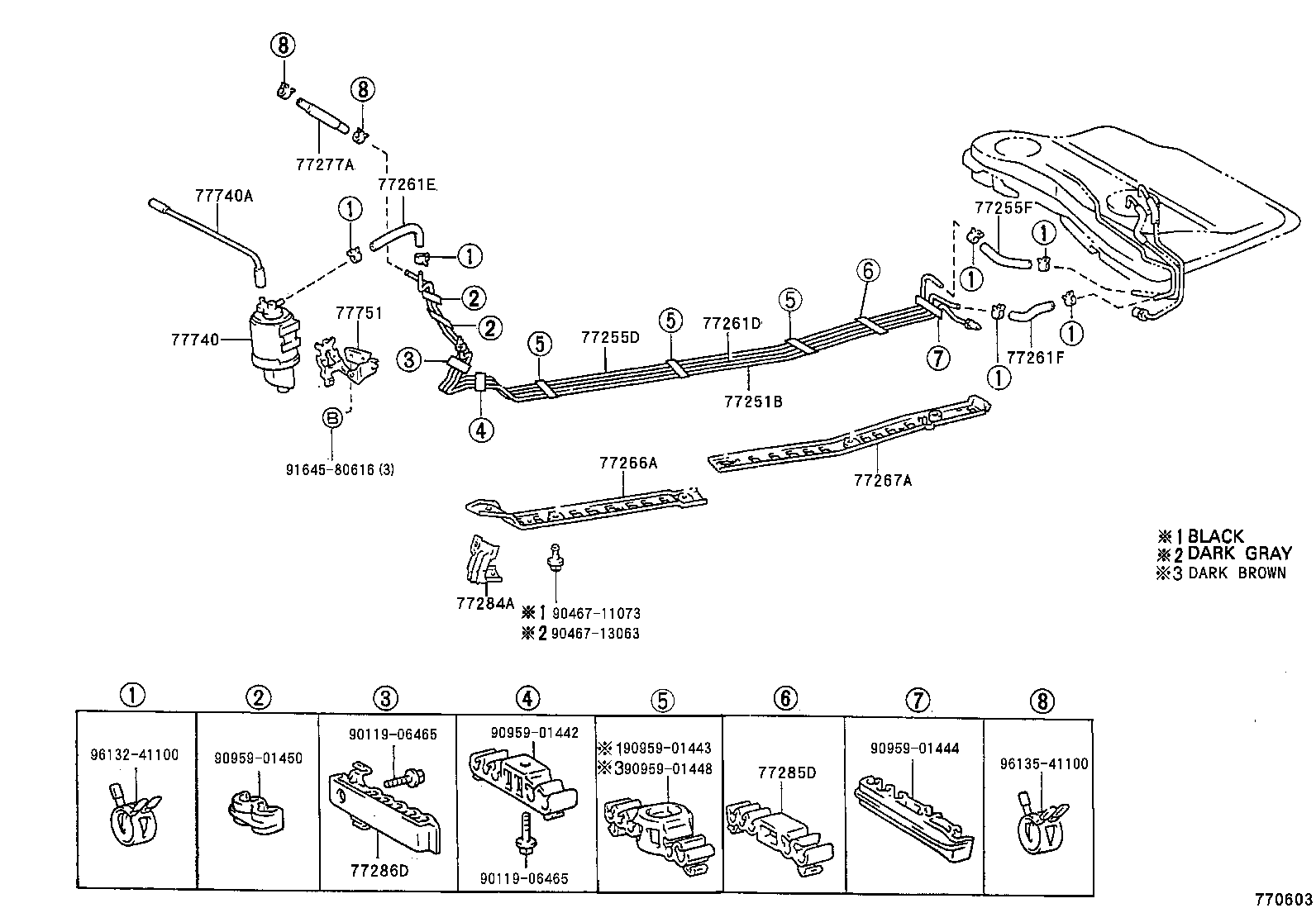

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12570 |
AE111 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12510 |
AE111 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
AE111 *H,L=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12370 |
AE111 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12200 |
AE111 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE111 *H,L=160 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE111 |
2 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE111 |
2 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12139 |
AE111 L=500 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE111 |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-12020 |
AE111 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12040 |
AE111 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12630 |
AE111 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04147 |
AE111 L=260 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12100 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90959-01442 | ||||
| 90959-01443 | ||||
| 90959-01444 | ||||
| 90959-01448 | ||||
| 90959-01450 | ||||
| 91645-80616 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||
