AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-9904)

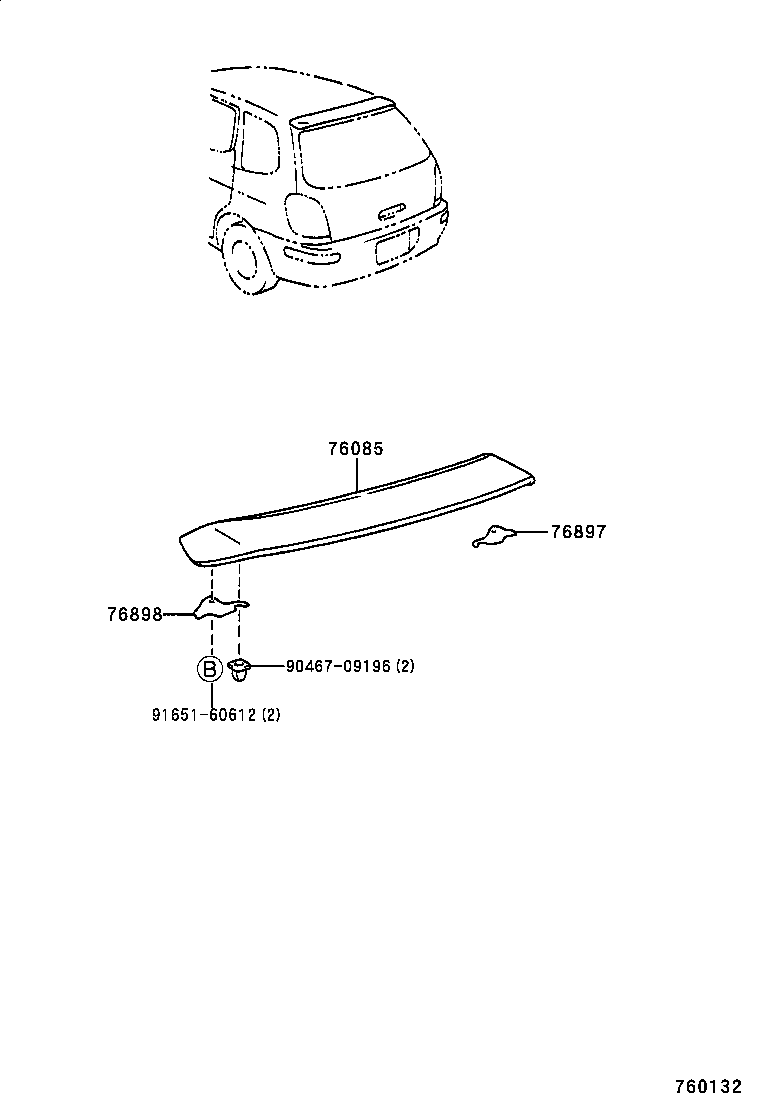

Click highlighted areas on diagram

diagram 76085 76897 76898 9046709196 9165160612
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76871-13903

AE111

 1
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-13020

AE111

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76897-13020

AE111

 1
Common parts
90467-09196
91651-60612

(9904- )

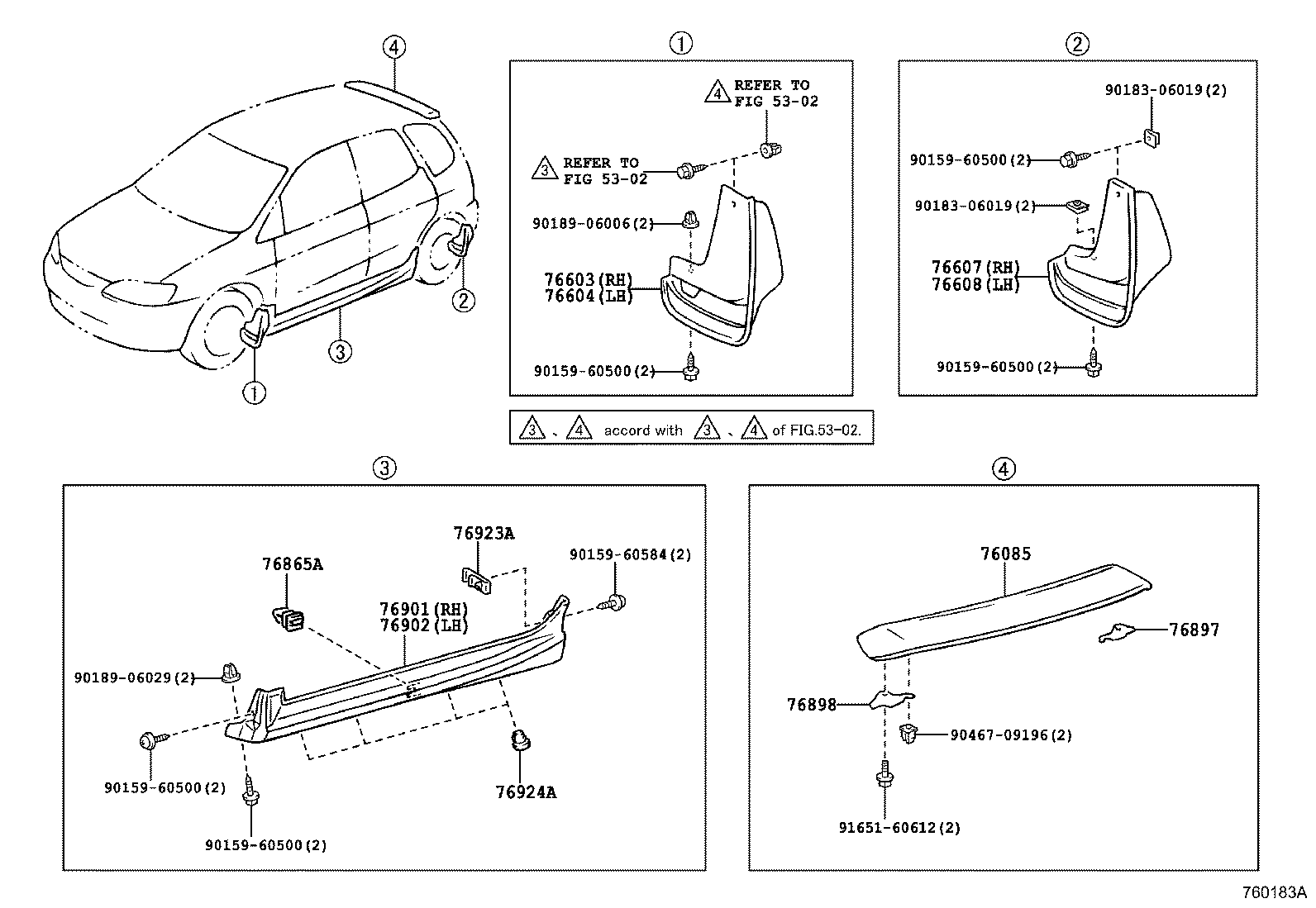

Click highlighted areas on diagram

diagram 5302 5302 76085 76603 76604 76607 76608 76865A 76897 76898 76901 76902 76923A 76924A 9015960500 9015960500 9015960500 9015960500 9015960500 9015960584 9018306019 9018306019 9018906006 9018906029 9046709196 9165160612
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76871-13903

AE111

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-13010

AE111

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-13010

AE111

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-13090

AE111

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-13090

AE111

 1
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-13020

AE111

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76897-13020

AE111

 1
Common parts
90159-60500
90159-60584
90183-06019
90189-06006
90189-06029
90467-09196
91651-60612
Linked diagrams
5302
