AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

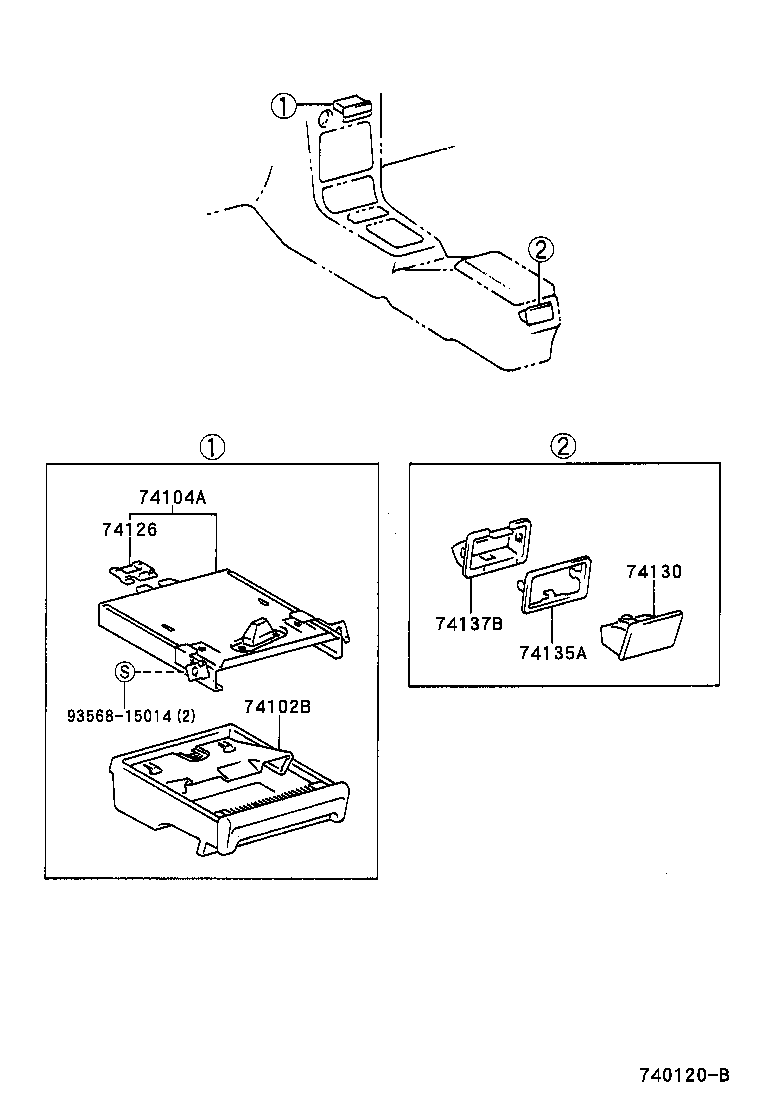

Click highlighted areas on diagram

diagram 74102B 74104A 74126 74130 74135A 74137B 9356815014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-13010

AE111

 1
74126 - SUPPORT, FRONT ASH RECEPTACLE RET, NO.3
74126-32010

AE111

 1
Common parts
93568-15014
