AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

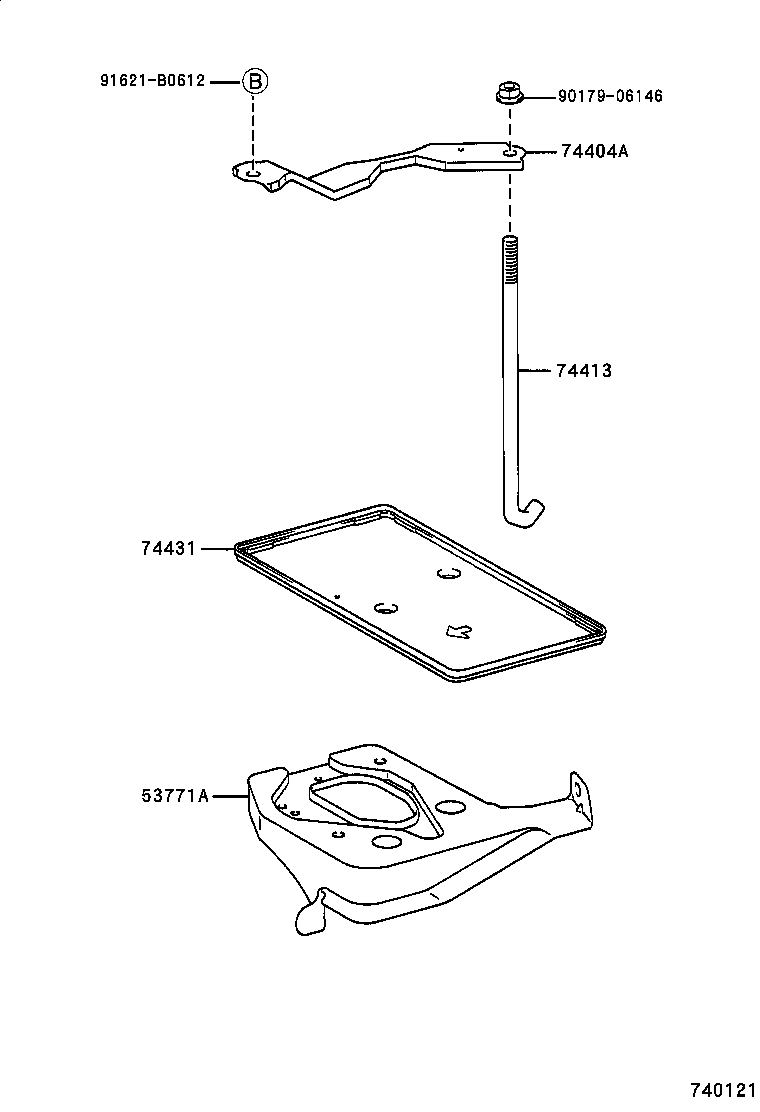

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53771A - SUPPORT, BATTERY CARRIER | ||||
| 53771-13010 |
AE111 |
1 | ||
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-13010 |
AE111 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-12061 |
AE111 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-12020 |
AE111 |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| 91621-B0612 | ||||
