AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

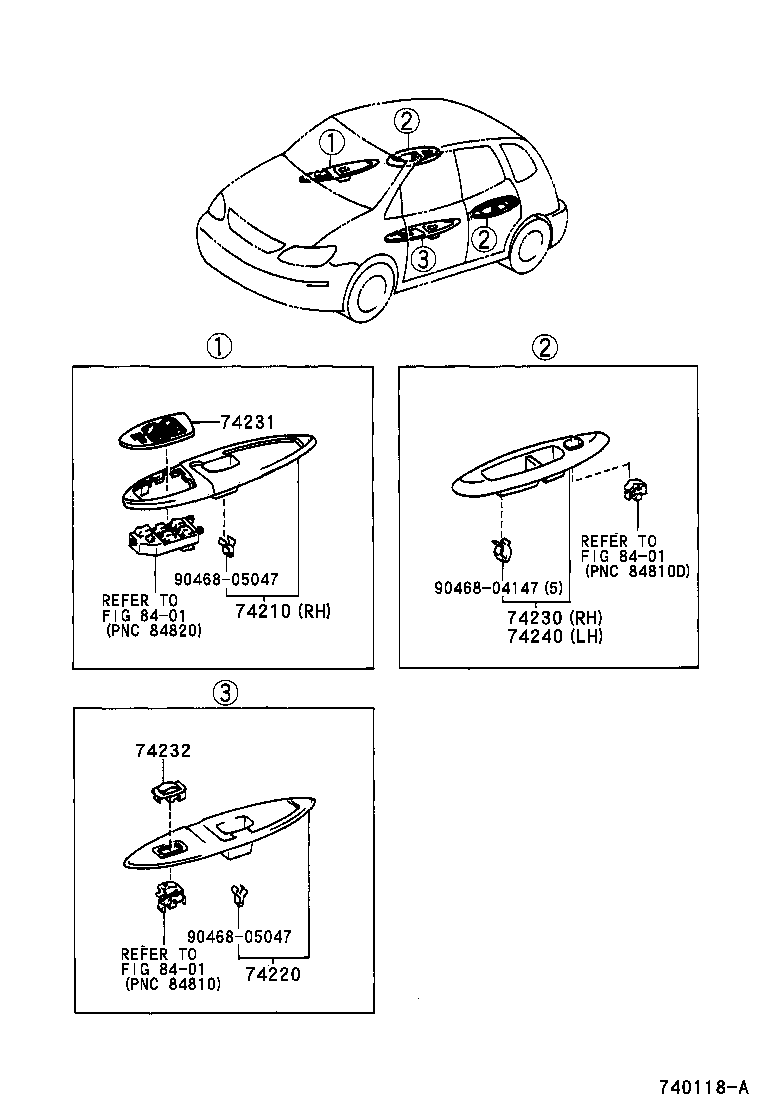

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-13020B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 84656-32020B2 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90468-04147 | ||||
| 90468-05047 | ||||
| Linked diagrams | ||||
| 8401 | ||||

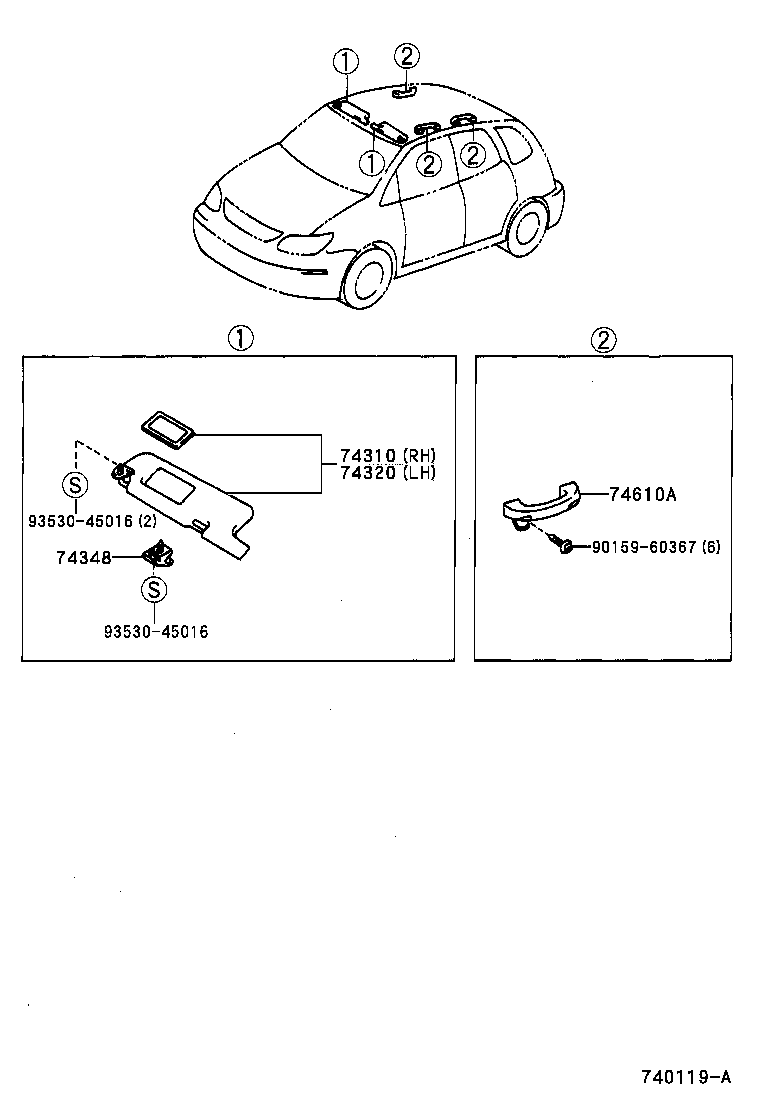

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-13310B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-13190B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020B9 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-20030B6 |
AE111..06S MD.CHARCOAL,TRIM1# |
4 | ||
| Common parts | ||||
| 90159-60367 | ||||
| 93530-45016 | ||||
