AE111R-FPPEK (1998)
Toyota Spacio

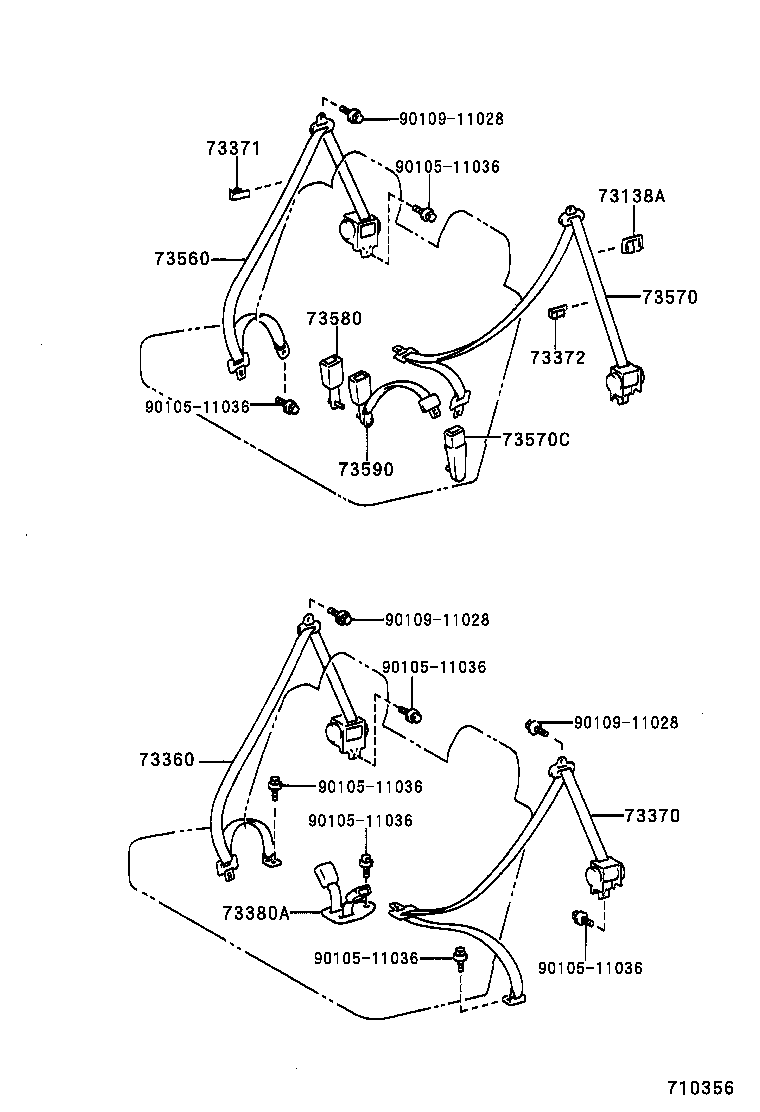

ILLUST NO. 2 OF 2(9805- )06S
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73138A - COVER, SHOULDER BELT ANCHOR, UPPER LH | ||||
| 73138-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-13271B1 |
AE111..06S GRAY,TRIM1# |
1 | ||
| 73360-13271B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-13211B1 |
AE111..06S GRAY,TRIM1# |
1 | ||
| 73370-13211B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-16050B5 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-13050B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-13100B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 73380-13100B1 |
AE111..06S GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73360-13251B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 73360-13251B1 |
AE111..06S GRAY,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73370-13200B1 |
AE111..06S GRAY,TRIM1# |
1 | ||
| 73370-13200B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 73570C - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-13020B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 73590-13020B2 |
AE111..06S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11028 | ||||

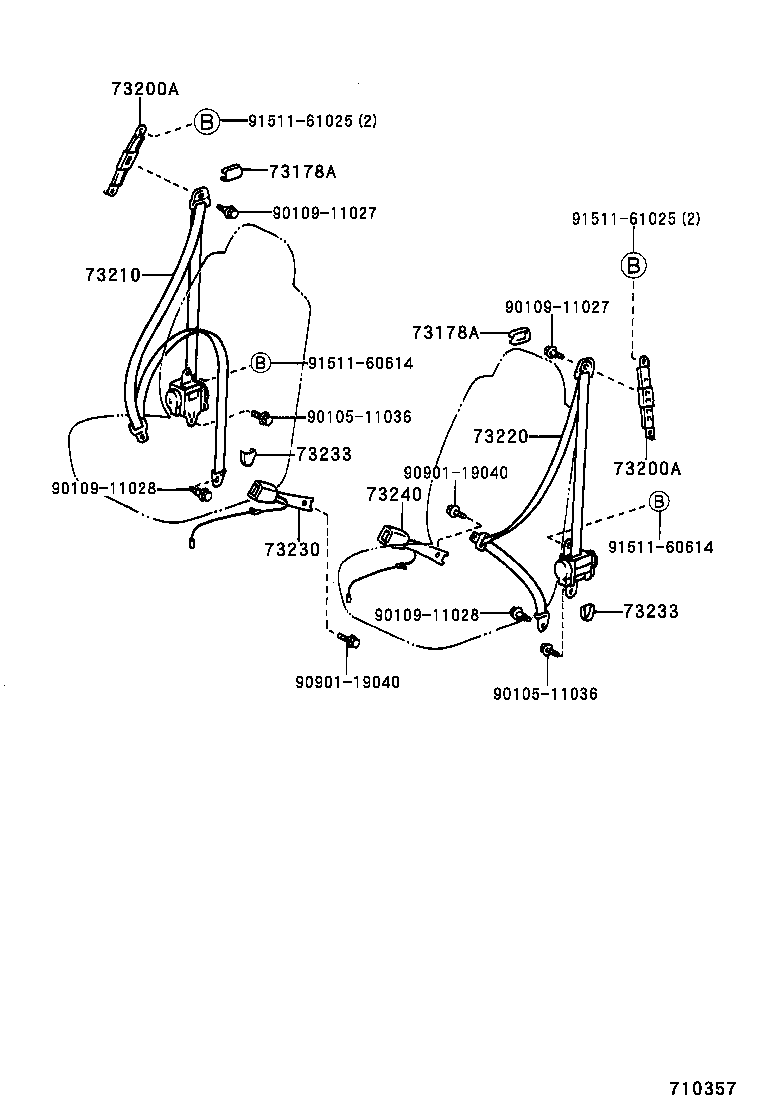

ILLUST NO. 1 OF 2(9805- )
FRONT SERT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12040B4 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12040B4 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-60020B0 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-60020B0 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-13111B0 |
AE111 SHADOW GRAY,TRIM1# |
1 | ||
| 73210-13111B1 |
AE111 GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-13071B0 |
AE111 SHADOW GRAY,TRIM1# |
1 | ||
| 73220-13071B1 |
AE111 GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-13040B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010B4 |
AE111 DK. CHARCOAL,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010B4 |
AE111 DK. CHARCOAL,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-16410B2 |
AE111 W(FRONT ROTATION SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-12580B2 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11027 | ||||
| 90109-11028 | ||||
| 90901-19040 | ||||
| 91511-60614 | ||||
| 91511-61025 | ||||
