AE111R-FPPEK (1998)
Toyota Spacio
(9805- )06S

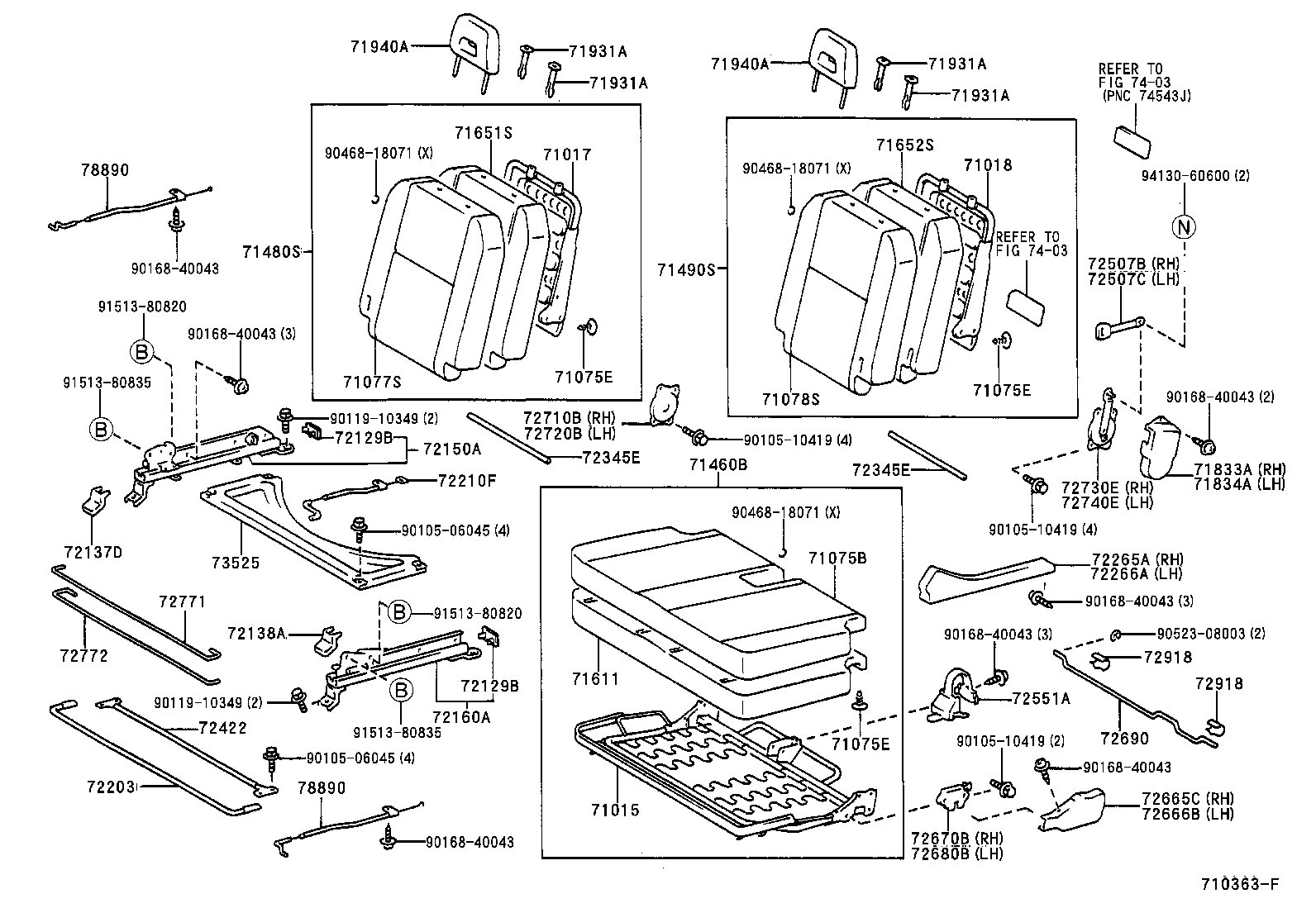

REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-13060 |
AE111..06S |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-13210 |
AE111..06S |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-13080 |
AE111..06S |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-13680B3 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 71065-13130B0 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06016C0 |
AE111..06S BLACK,TRIM1# |
8 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06016C0 |
AE111..06S BLACK,TRIM1# |
8 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06016C0 |
AE111..06S BLACK,TRIM1# |
8 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-13821B2 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71077-1F270B0 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-13520B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 71078-13650B0 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-13840B3 |
AE111..06S ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71560-13260B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1F620B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71480-1F281B2 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-13530B0 |
AE111..06S ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71490-13630B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-13260 |
AE111..06S |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-13220 |
AE111..06S |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-13100 |
AE111..06S |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-46010B1 |
AE111..06S MD.CHARCOAL,TRIM1# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-46010B1 |
AE111..06S MD.CHARCOAL,TRIM1# |
4 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-13030 |
AE111..06S |
4 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-13030 |
AE111..06S |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-13020B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72137-13020B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72160-13020 |
AE111..06S |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72170-13020 |
AE111..06S |
1 | ||
| 72203 - HANDLE SUB-ASSY, REAR SEAT TRACK | ||||
| 72203-13010 |
AE111..06S |
1 | ||
| 72210F - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-13020B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13010B1 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-13010B1 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-13010 |
AE111..06S REAR NO.1 SEAT |
1 | ||
| 72345-13030 |
AE111..06S REAR NO.2 SEAT |
2 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-13010 |
AE111..06S REAR NO.1 SEAT |
1 | ||
| 72345-13030 |
AE111..06S REAR NO.2 SEAT |
2 | ||
| 72422 - ROD, VERTICAL ADJUSTER | ||||
| 72422-13010 |
AE111..06S |
1 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72507-13010B4 |
AE111 GRAY,TRIM1# |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72507-13010B4 |
AE111 GRAY,TRIM1# |
1 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-13050D0 |
AE111..06S RED,TRIM1# |
1 | ||
| 72665-13030B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-13020B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72666-13040D0 |
AE111..06S RED,TRIM1# |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-13010 |
AE111..06S |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-13010 |
AE111..06S |
1 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-13010 |
AE111..06S |
1 | ||
| 72710B - ADJUSTER ASSY, REAR SEAT BACK, INNER RH | ||||
| 72710-13010 |
AE111..06S |
1 | ||
| 72720B - ADJUSTER ASSY, REAR SEAT BACK, INNER LH | ||||
| 72720-13010 |
AE111..06S |
1 | ||
| 72730E - ADJUSTER ASSY, REAR SEAT BACK, OUTER RH | ||||
| 72730-13010 |
AE111..06S |
1 | ||
| 72740E - ADJUSTER ASSY, REAR SEAT BACK, OUTER LH | ||||
| 72740-13010 |
AE111..06S |
1 | ||
| 72771 - SPRING, REAR SEAT TURN NO.1 | ||||
| 72772-13010 |
AE111..06S |
1 | ||
| 72772 - SPRING, REAR SEAT TURN NO.2 | ||||
| 72772-13020 |
AE111..06S |
1 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-13010 |
AE111..06S |
2 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-13010 |
AE111..06S |
2 | ||
| 73525 - PANEL, REAR SEAT SUB FLOOR | ||||
| 73525-13010 |
AE111..06S |
1 | ||
| 78890 - CABLE ASSY, SUB SEAT LOCK CONTROL | ||||
| 78890-13010 |
AE111..06S |
2 | ||
| 78890 - CABLE ASSY, SUB SEAT LOCK CONTROL | ||||
| 78890-13010 |
AE111..06S |
2 | ||
| Common parts | ||||
| 90105-06045 | ||||
| 90105-10419 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90468-18071 | ||||
| 90523-08003 | ||||
| 91513-80820 | ||||
| 91513-80835 | ||||
| 94130-60600 | ||||
| Linked diagrams | ||||
| 7403 | ||||
(9805- )06S

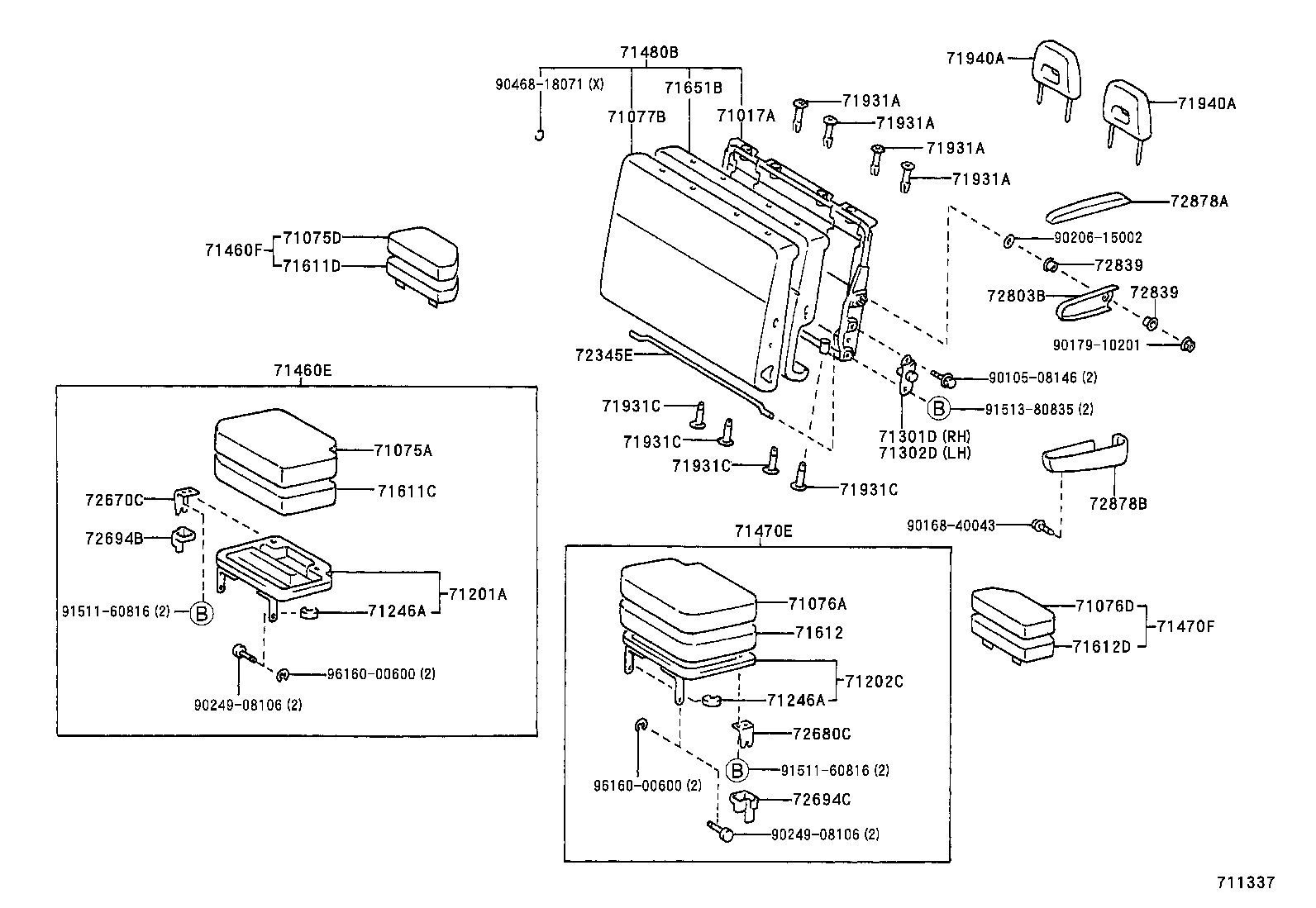

REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-13220 |
AE111..06S |
1 | ||
| 71075A - COVER SUB-ASSY, REAR SEAT CUSHION, FRONT RH | ||||
| 71065-13150B1 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71075-13661B3 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71075D - COVER SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71075-13670B2 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71065-13090B0 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71076A - COVER SUB-ASSY, REAR SEAT CUSHION, FRONT LH | ||||
| 71076-13091B3 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71076-13360B1 |
AE111..06S DARK CHARCOAL,TRIM1# |
1 | ||
| 71076D - COVER, REAR SEAT CUSHION, REAR LH | ||||
| 71076-13100B2 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71076-13370B0 |
AE111..06S DARK CHARCOAL,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-13810B2 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71077-1F240B0 |
AE111..06S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71201A - PANEL ASSY, REAR SEAT CUSHION, FRONT RH(FOR SEPARATE TY | ||||
| 71201-13230 |
AE111..06S |
1 | ||
| 71202C - PANEL ASSY, REAR SEAT CUSHION, FRONT LH(FOR SEPARATE TY | ||||
| 71201-13210 |
AE111..06S |
1 | ||
| 71246A - PLATE, REAR SEAT CUSHION SET | ||||
| 71246-13060 |
AE111..06S |
4 | ||
| 71246A - PLATE, REAR SEAT CUSHION SET | ||||
| 71246-13060 |
AE111..06S |
4 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-13080 |
AE111..06S |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-13070 |
AE111..06S |
1 | ||
| 71460E - CUSHION ASSY, REAR SEAT, FRONT RH | ||||
| 71560-13300B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71460-13861B3 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71460F - CUSHION ASSY, REAR SEAT, REAR RH | ||||
| 71460-13850B2 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71560-13310B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71470E - CUSHION ASSY, REAR SEAT, FRONT LH | ||||
| 71470-13101B3 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71470-13330B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71470F - CUSHION ASSY, REAR SEAT, REAR LH | ||||
| 71470-13090B2 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71470-13340B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1F680B0 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71480-1F290B2 |
AE111..06S ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71611C - PAD, REAR SEAT CUSHION, FRONT RH(FOR SEPARATE TYPE) | ||||
| 71611-13220 |
AE111..06S |
1 | ||
| 71611D - PAD SUB-ASSY, REAR SEAT CUSHION, REAR RH(FOR SEPARATE T | ||||
| 71503-13010 |
AE111..06S |
1 | ||
| 71612 - PAD, REAR SEAT CUSHION, FRONT LH(FOR SEPARATE TYPE) | ||||
| 71612-13090 |
AE111..06S |
1 | ||
| 71612D - PAD SUB-ASSY, REAR SEAT CUSHION, REAR LH(FOR SERPARATE | ||||
| 71504-13010 |
AE111..06S |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-13230 |
AE111..06S |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-13010B0 |
AE111..06S W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-13010B0 |
AE111..06S W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-13010B0 |
AE111..06S W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-13010B0 |
AE111..06S W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-46010B1 |
AE111..06S MD.CHARCOAL,TRIM1# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-46010B1 |
AE111..06S MD.CHARCOAL,TRIM1# |
4 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-13010 |
AE111..06S REAR NO.1 SEAT |
1 | ||
| 72345-13030 |
AE111..06S REAR NO.2 SEAT |
2 | ||
| 72670C - LOCK ASSY, REAR SEAT CUSHION, NO.2 RH | ||||
| 72670-13020 |
AE111..06S |
1 | ||
| 72680C - LOCK ASSY, REAR SEAT CUSHION, NO.2 LH | ||||
| 72680-13020 |
AE111..06S |
1 | ||
| 72694B - COVER, REAR SEAT CUSHION LOCK, RH | ||||
| 72694-13030B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72694C - COVER, REAR SEAT CUSHION LOCK, LH | ||||
| 72694-13040B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72803B - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 72803-13010 |
AE111..06S |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-13010 |
AE111..06S |
2 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-13010 |
AE111..06S |
2 | ||
| 72878A - COVER, SEAT ARMREST, NO.2 LH | ||||
| 72877-13020B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72878B - COVER, SEAT ARMREST, LH | ||||
| 72877-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08146 | ||||
| 90168-40043 | ||||
| 90179-10201 | ||||
| 90206-15002 | ||||
| 90249-08106 | ||||
| 90468-18071 | ||||
| 91511-60816 | ||||
| 91513-80835 | ||||
| 96160-00600 | ||||

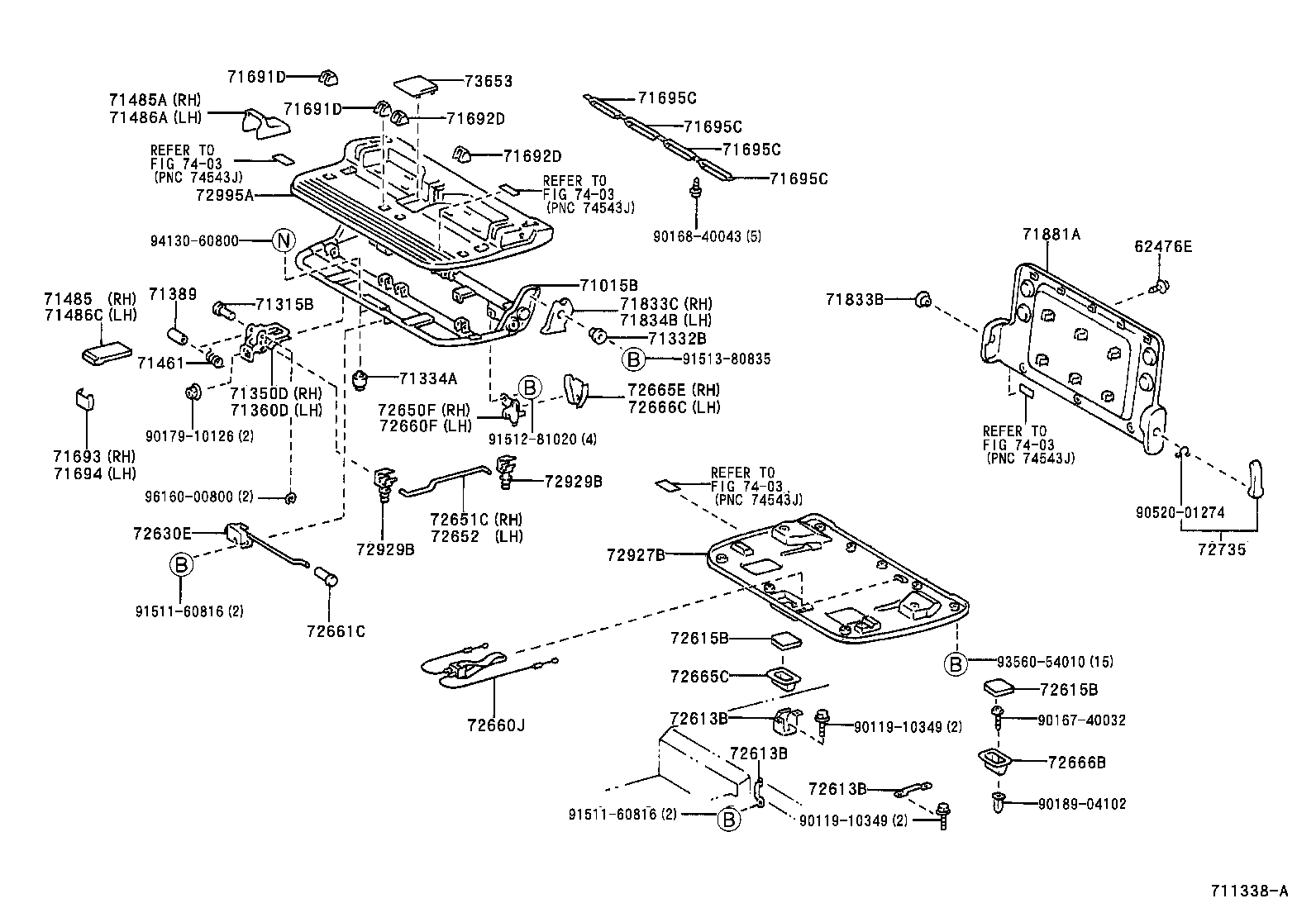

(9805- )06S
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62476E - CAP, REAR SEAT | ||||
| 62476-12010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
3 | ||
| 71015B - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-13030 |
AE111..06S |
1 | ||
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-13020 |
AE111..06S |
2 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-13010 |
AE111..06S |
2 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-13010 |
AE111..06S |
1 | ||
| 71350D - HINGE ASSY, REAR SEAT, NO.2 RH | ||||
| 71350-13020 |
AE111..06S |
1 | ||
| 71360D - HINGE ASSY, REAR SEAT, NO.2 LH | ||||
| 71360-13020 |
AE111..06S |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-13010 |
AE111..06S |
2 | ||
| 71461 - SPRING, REAR SEAT CUSHION | ||||
| 71461-13010 |
AE111..06S |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-13020B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 71485A - COVER, REAR SEAT HINGE, NO.2 RH | ||||
| 71485-13030B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 71486A - COVER, REAR SEAT HINGE, NO.2 LH | ||||
| 71486-13030B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-13020B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
2 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
2 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
2 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-13020B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-13020B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
1 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-13010 |
AE111..06S |
4 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-13010 |
AE111..06S |
4 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-13010 |
AE111..06S |
4 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-13010 |
AE111..06S |
4 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05091B2 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-13020B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-13020B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 71881A - BOARD, REAR SEAT BACK | ||||
| 71881-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-13080 |
AE111..06S REAR RH |
1 | ||
| 72614-13030 |
AE111..06S REAR LH |
1 | ||
| 72613-13100 |
AE111..06S FRONT |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-13080 |
AE111..06S REAR RH |
1 | ||
| 72614-13030 |
AE111..06S REAR LH |
1 | ||
| 72613-13100 |
AE111..06S FRONT |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-13080 |
AE111..06S REAR RH |
1 | ||
| 72614-13030 |
AE111..06S REAR LH |
1 | ||
| 72613-13100 |
AE111..06S FRONT |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-13040 |
AE111..06S |
2 | ||
| 72615-13040B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
2 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-13040 |
AE111..06S |
2 | ||
| 72615-13040B0 |
AE111..06S DK.CHARCOAL,TRIM1# |
2 | ||
| 72630E - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-13130 |
AE111..06S |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-13010 |
AE111..06S |
1 | ||
| 72651C - ROD, REAR SEAT LOCK, RH | ||||
| 72651-13071 |
AE111..06S |
1 | ||
| 72652 - ROD, REAR SEAT LOCK, LH | ||||
| 72651-13061 |
AE111..06S |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-13020 |
AE111..06S |
1 | ||
| 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK | ||||
| 72660-13030B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 72660-13030B1 |
AE111..06S GRAY,TRIM1# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-12010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72661-12010D0 |
AE111..06S RED,TRIM1# |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-13050D0 |
AE111..06S RED,TRIM1# |
1 | ||
| 72665-13030B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72665E - COVER, REAR SEAT LOCK, NO.2 RH | ||||
| 72665-13040D0 |
AE111..06S RED,TRIM1# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-13020B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72666-13040D0 |
AE111..06S RED,TRIM1# |
1 | ||
| 72666C - COVER, REAR SEAT LOCK, NO.2 LH | ||||
| 72666-13030D0 |
AE111..06S RED,TRIM1# |
1 | ||
| 72735 - LEVER, REAR SEAT RECLINING RELEASE | ||||
| 72735-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-13030B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 72929B - HOLDER, REAR SEAT CUSHION BAND | ||||
| 72929-13020 |
AE111..06S RH |
2 | ||
| 72929-13010 |
AE111..06S LH |
2 | ||
| 72929B - HOLDER, REAR SEAT CUSHION BAND | ||||
| 72929-13020 |
AE111..06S RH |
2 | ||
| 72929-13010 |
AE111..06S LH |
2 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-13030B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| 73653 - COVER, REAR SEAT BELT INNER ANCHOR, RH | ||||
| 73653-13010B0 |
AE111..06S MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40032 | ||||
| 90168-40043 | ||||
| 90179-10126 | ||||
| 90189-04102 | ||||
| 90520-01274 | ||||
| 91511-60816 | ||||
| 91512-81020 | ||||
| 91513-80835 | ||||
| 93560-54010 | ||||
| 94130-60800 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
