AE111R-FPPEK (1998)
Toyota Spacio

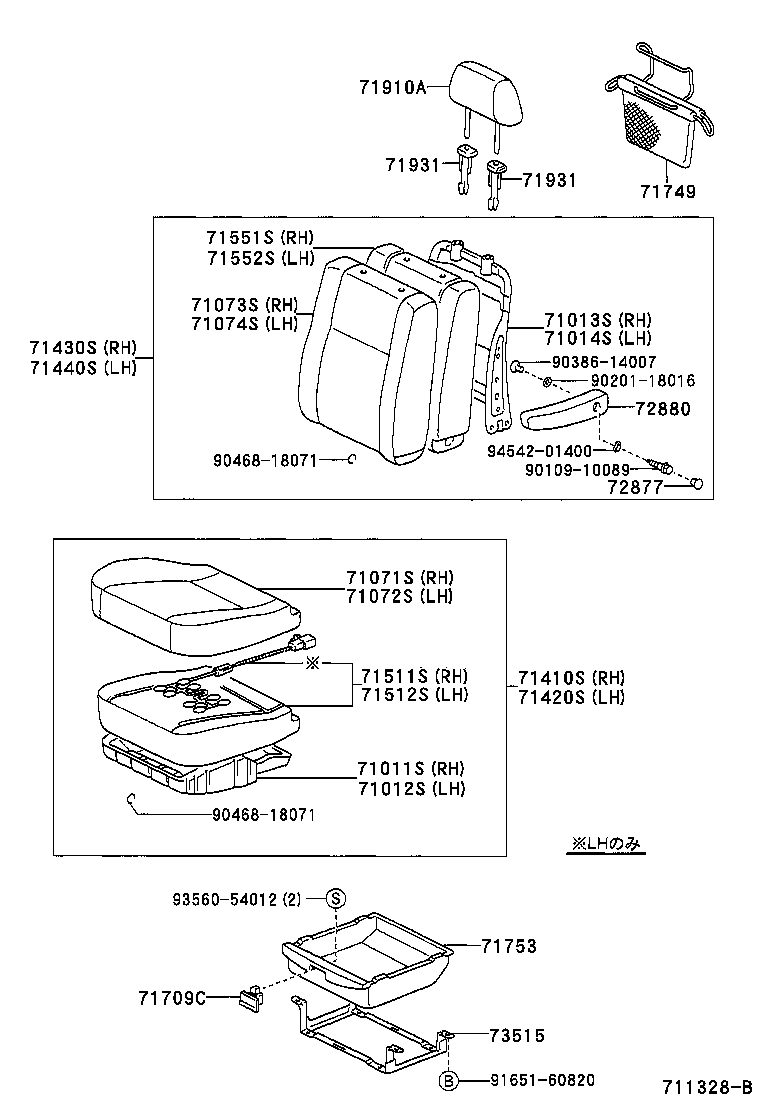

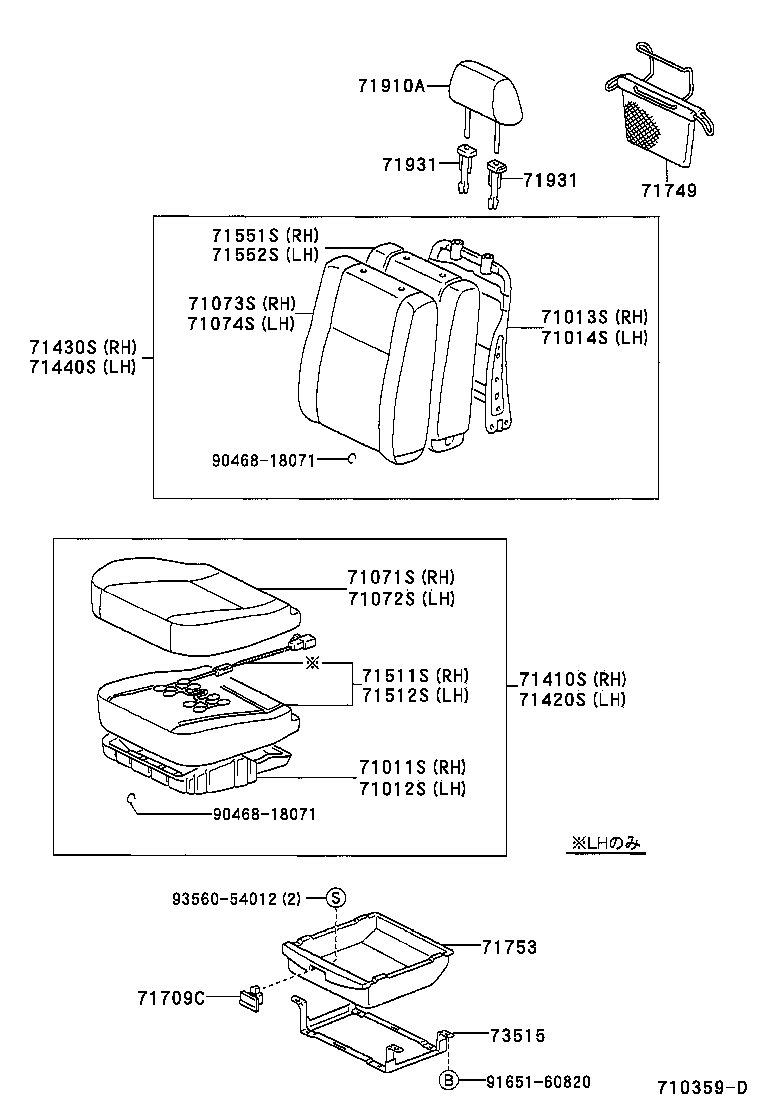

ILLUST NO. 1 OF 4(9805-9904)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-20430 |
AE111 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-10230 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71011-13010 |
AE111 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-13060 |
AE111 |
1 | ||
| 71013-13040 |
AE111 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-13040 |
AE111 |
1 | ||
| 71013-13050 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-13410B2 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-13560B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13520B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-13600B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-13630B0 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-13530B0 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-13391B2 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-13570B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13351B2 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-13510B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-13341B2 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-13540B0 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-13610B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71410-13410B2 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-13580B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420-13710B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420-13720B0 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420-13590B0 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-13411B2 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71430-13570B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-13421B2 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440-13690B0 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440-13411B2 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440-13660B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-13030 |
AE111 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-13020 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71512-13010 |
AE111 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-13050 |
AE111 |
1 | ||
| 71551-13030 |
AE111 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-13040 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71551-13030 |
AE111 |
1 | ||
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
AE111 BLACK,TRIM10 |
1 | ||
| 55560-95J00B3 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 71749 - NET, FRONT SEAT BACK POCKET | ||||
| 71749-13010B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 71749-13010B1 |
AE111..06S SHADOW DRAY,TRIM1# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-46010B1 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91651-60820 | ||||
| 93560-54012 | ||||

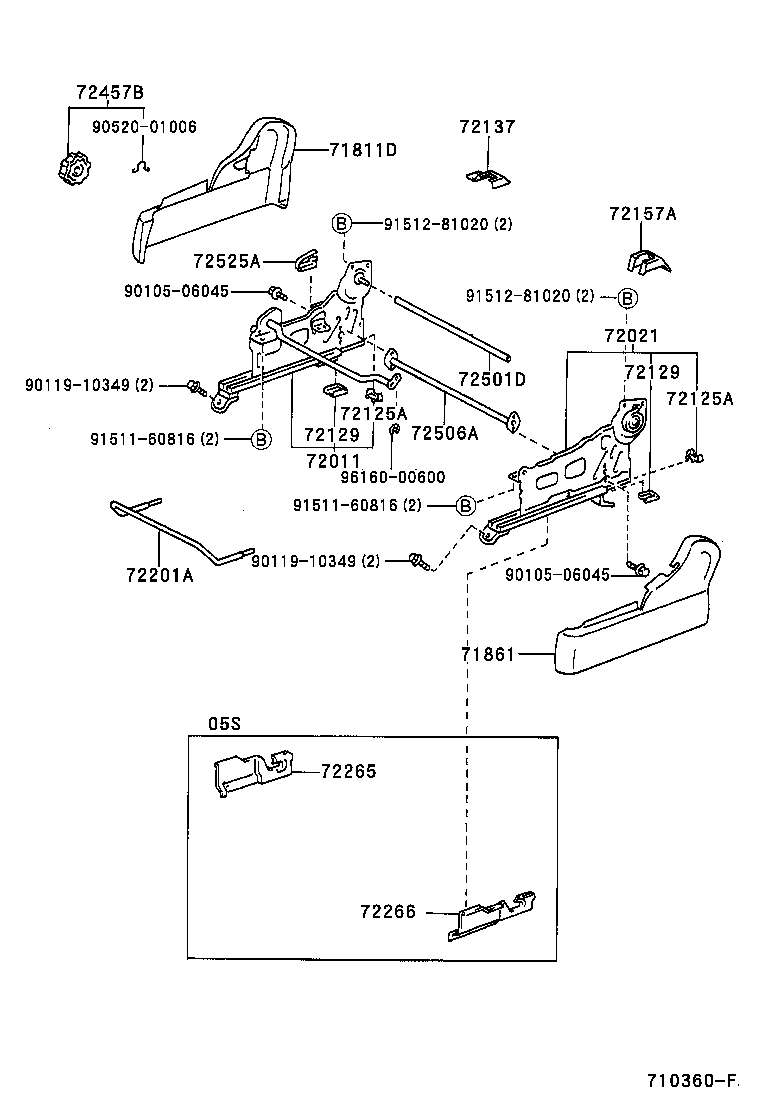

ILLUST NO. 2 OF 4(9805- )
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-13020B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AE111 |
4 | ||
| 72125-16020 |
AE111 W(FRONT ROTATION SEAT) |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AE111 |
4 | ||
| 72125-16020 |
AE111 W(FRONT ROTATION SEAT) |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
2 | ||
| 72129-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
2 | ||
| 72129-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-13010 |
AE111 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010P0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20050 |
AE111 |
1 | ||
| 72506A - ROD SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72506-13010 |
AE111 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B8 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-06045 | ||||
| 90119-10349 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91512-81020 | ||||
| 96160-00600 | ||||

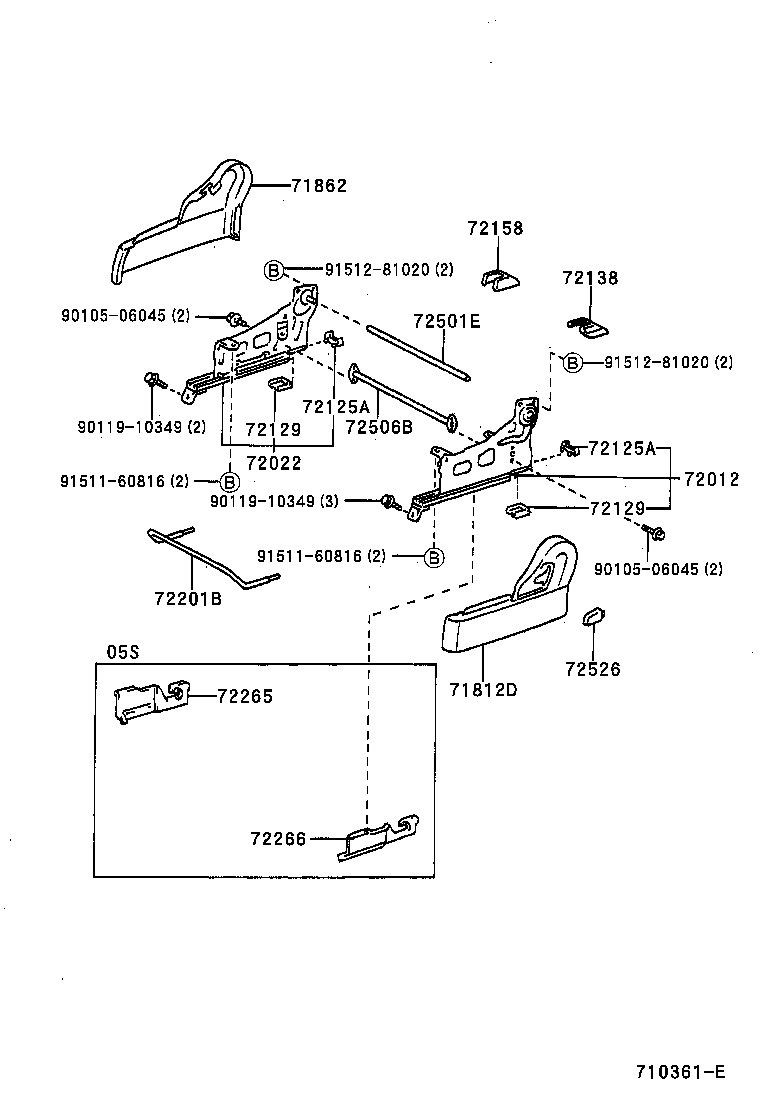

ILLUST NO. 3 OF 4(9805- )
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-13020B0 |
AE111 W(FRONT ROTATION SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-13020B0 |
AE111 W(FRONT ROTATION SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-13020 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 72012-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-13040 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 72022-13030B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AE111 |
4 | ||
| 72125-16020 |
AE111 W(FRONT ROTATION SEAT) |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AE111 |
4 | ||
| 72125-16020 |
AE111 W(FRONT ROTATION SEAT) |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
2 | ||
| 72129-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
2 | ||
| 72129-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 72138-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 72158-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-13010 |
AE111 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20050 |
AE111 |
1 | ||
| 72345-13020 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 72506B - ROD SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72506-13010 |
AE111 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B8 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-06045 | ||||
| 90119-10349 | ||||
| 91511-60816 | ||||
| 91512-81020 | ||||

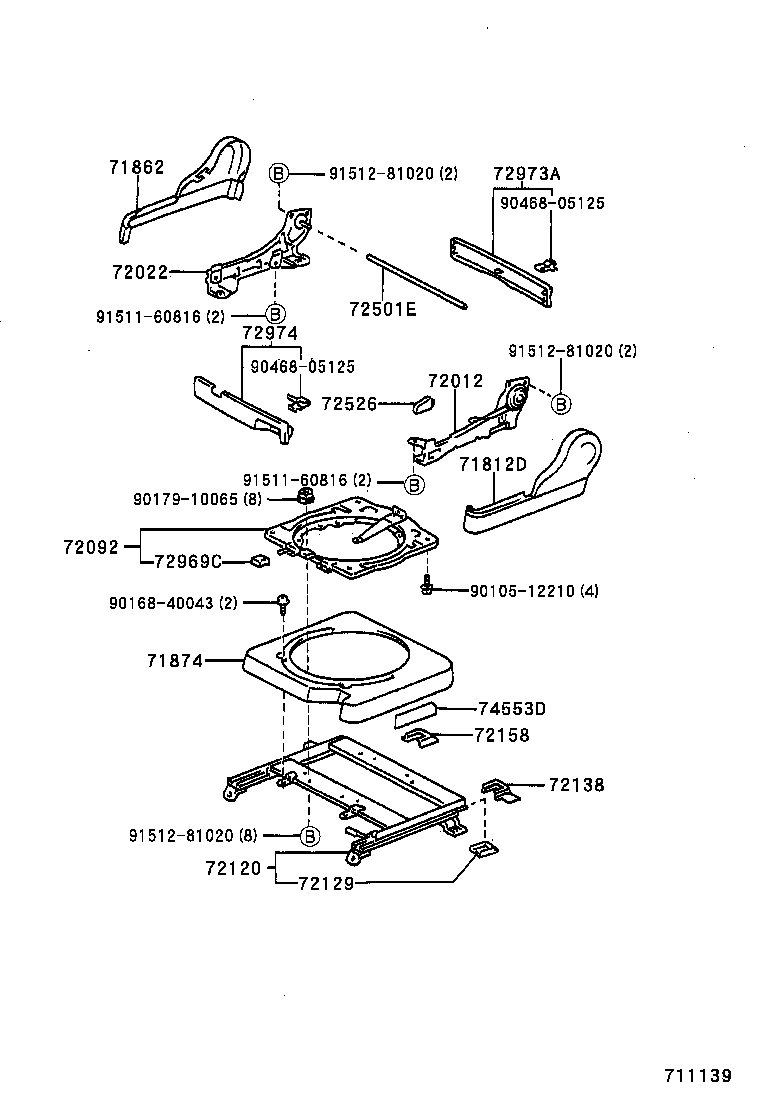

ILLUST NO. 4 OF 4(9805- )
PASSENGER SIDE W(ROTATION SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-13020B0 |
AE111 W(FRONT ROTATION SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-13020B0 |
AE111 W(FRONT ROTATION SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-13020 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 72012-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-13040 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 72022-13030B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72092 - PLATE SUB-ASSY, SEAT TURN, UPPER LH | ||||
| 72092-13020B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
2 | ||
| 72129-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 72138-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-13020B0 |
AE111 W(FRONT ROTATION SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 72158-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20050 |
AE111 |
1 | ||
| 72345-13020 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B8 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72969C - KNOB, REAR SEAT TURN LOCK, LH | ||||
| 72969-28050B2 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72973A - COVER, REAR SEAT TURN TABLE | ||||
| 72973-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 72974 - COVER, REAR SEAT TURN LOCK | ||||
| 72974-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 74553D - LABEL, FRONT SEAT CAUTION | ||||
| 74553-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90105-12210 | ||||
| 90168-40043 | ||||
| 90179-10065 | ||||
| 90468-05125 | ||||
| 91511-60816 | ||||
| 91512-81020 | ||||
ILLUST NO. 1 OF 4(9904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-20430 |
AE111 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-10230 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71011-13010 |
AE111 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-13060 |
AE111 |
1 | ||
| 71013-13040 |
AE111 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-13040 |
AE111 |
1 | ||
| 71013-13050 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-13410B2 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-13560B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13520B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-13600B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-13630B0 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-13530B0 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-13391B2 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-13570B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13351B2 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-13510B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-13341B2 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-13540B0 |
AE111 W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-13610B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71410-13410B2 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-13580B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420-13710B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420-13720B0 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71420-13590B0 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-13411B2 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71430-13570B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-13421B2 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440-13690B0 |
AE111 ***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440-13411B2 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71440-13660B0 |
AE111 ***,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-13030 |
AE111 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-13020 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71512-13010 |
AE111 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-13050 |
AE111 |
1 | ||
| 71551-13030 |
AE111 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-13040 |
AE111 W(FRONT ROTATION SEAT) |
1 | ||
| 71551-13030 |
AE111 |
1 | ||
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
AE111 BLACK,TRIM10 |
1 | ||
| 55560-95J00B3 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 71749 - NET, FRONT SEAT BACK POCKET | ||||
| 71749-13010B0 |
AE111..06S SHADOW GRAY,TRIM1# |
1 | ||
| 71749-13010B1 |
AE111..06S SHADOW DRAY,TRIM1# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-13010B0 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-46010B1 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-13030B0 |
AE111 W(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE111 W/O(LOCK),MD.CHARCOAL,TRIM1# |
2 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72878-28330B3 |
AE111 DK.CHARCOAL,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-13010B0 |
AE111 MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90109-10089 | ||||
| 90201-18016 | ||||
| 90386-14007 | ||||
| 90468-18071 | ||||
| 91651-60820 | ||||
| 93560-54012 | ||||
| 94542-01400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
