AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

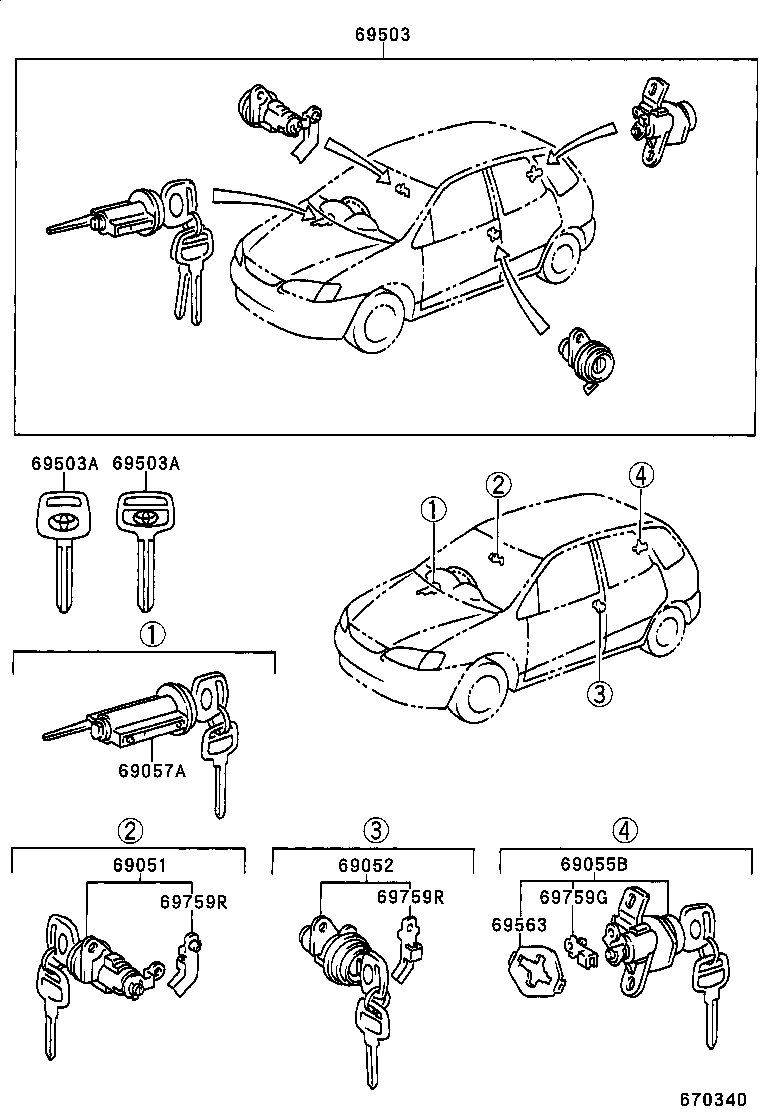

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-13210 |
AE111 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-13200 |
AE111 |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-13260 |
AE111 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-12340 |
AE111 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-13530 |
AE111 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE111 MASTER KEY |
2 | ||
| 90999-00185 |
AE111 MASTER KEY,W(*68) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE111 MASTER KEY |
2 | ||
| 90999-00185 |
AE111 MASTER KEY,W(*68) |
1 | ||
| 69563 - PAD, BACK DOOR LOCK CYLINDER | ||||
| 69563-13010 |
AE111 |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-20090 |
AE111 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AE111 WHITE |
1 | ||
| 69759-12090 |
AE111 YELLOW |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AE111 WHITE |
1 | ||
| 69759-12090 |
AE111 YELLOW |
1 | ||
