AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

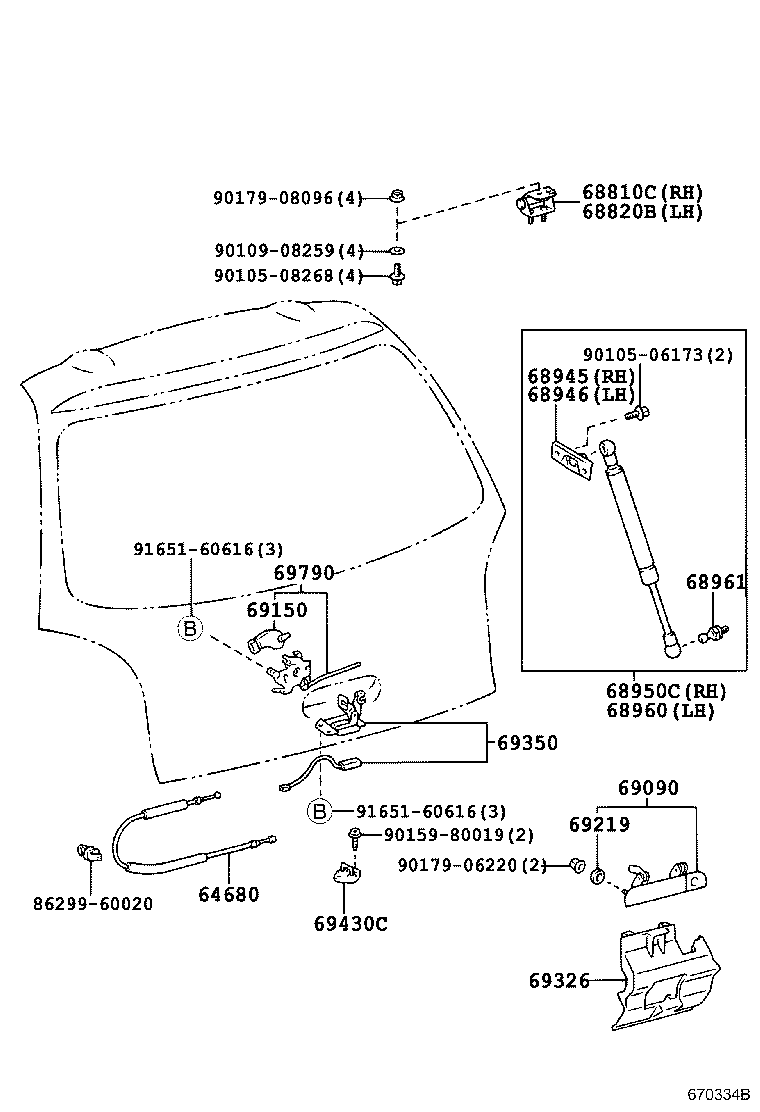

Click highlighted areas on diagram

diagram 64680 68810C 68820B 68945 68946 68950C 68960 68961 69090 69150 69219 69326 69350 69430C 69790 8629960020 9010506173 9010508268 9010908259 9015980019 9017906220 9017908096 9165160616 9165160616
Part # Description Qty Price
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-13040

AE111

 1
68810C - HINGE ASSY, BACK DOOR, RH
68801-13100

AE111

 1
68820B - HINGE ASSY, BACK DOOR, LH
68801-13100

AE111

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-13030

AE111

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-13030

AE111

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-80051

AE111

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-19655

AE111

 1
68961 - BOLT, BACK DOOR STAY
68961-23010

AE111

 2
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-13020C0

AE111

BLACK ME,2DB ,205

 1
69090-13020A0

AE111

SUPER WHITE 2,040

 1
69090-13020J0

AE111

DK.BLUE MC.,8K8

 1
69090-13020B1

AE111

SILVER ME.,1C0

 1
69090-13020C0

AE111

BLACK ME,205

 1
69090-13020B0

AE111

SILVER ME,199

 1
69090-13020G2

AE111

GREEN M.M.,6R9

 1
69090-13020J1

AE111

BLUE MC.,8M6

 1
69090-13020D1

AE111

SUPER RED II,3E5

 1
69090-13020G1

AE111

YELLOW GREEN ME.OP.,6Q9

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-13020

AE111

 1
69219 - SEAL, BACK DOOR OUTSIDE HANDLE
69219-13010

AE111

 2
69326 - PLATE, BACK DOOR OUTSIDE HANDLE
69326-13020

AE111

 1
69350 - LOCK ASSY, BACK DOOR
69350-13220

AE111

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-13030

AE111

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-13030

AE111

 1
Common parts
86299-60020
90105-06173
90105-08268
90109-08259
90159-80019
90179-06220
90179-08096
91651-60616
