AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

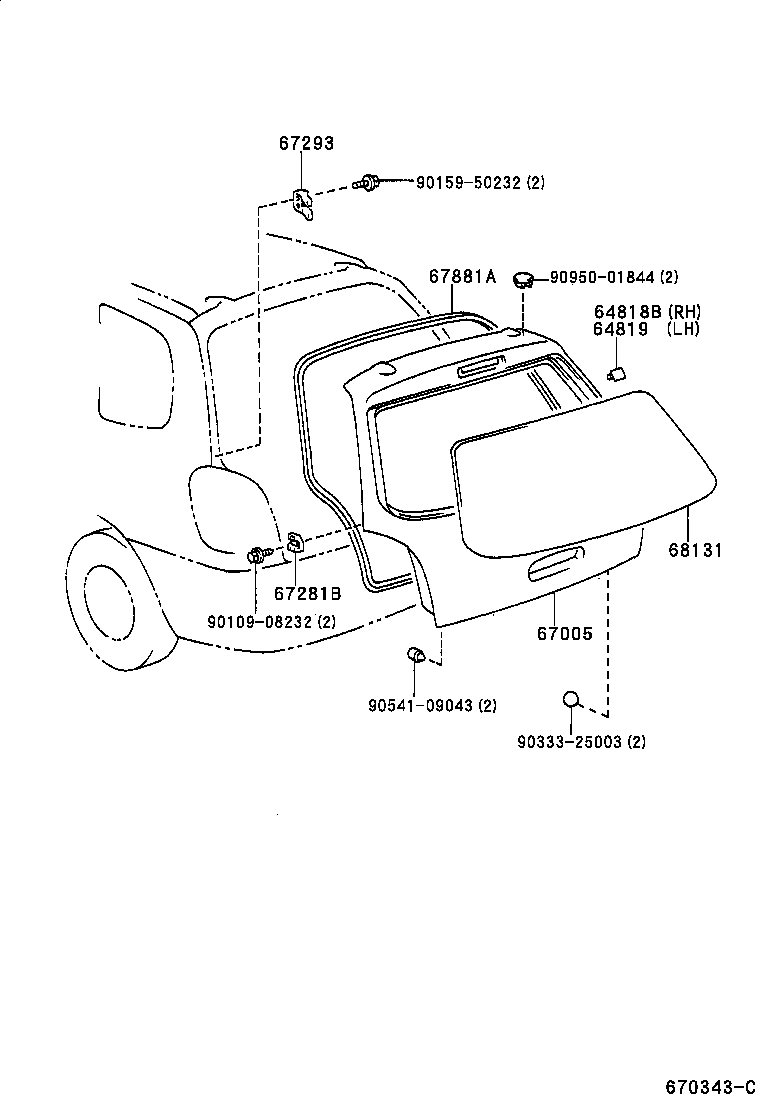

ILLUST NO. 2 OF 2(9805- )

Click highlighted areas on diagram

diagram 64818B 64819 67005 67281B 67293 67881A 68131 9010908232 9015950232 9033325003 9054109043 9095001844
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-13050

AE111

 1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-13020

AE111

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1F510

AE111

W(REAR SPOILER)

 1
67005-1F500

AE111

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-12061

AE111

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-13030

AE111

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-13210

AE111

 1
68131 - GLASS, BACK DOOR
68131-13480

AE111

*EHTT,T=3.5,GREEN

 1
Common parts
90109-08232
90159-50232
90333-25003
90541-09043
90950-01844

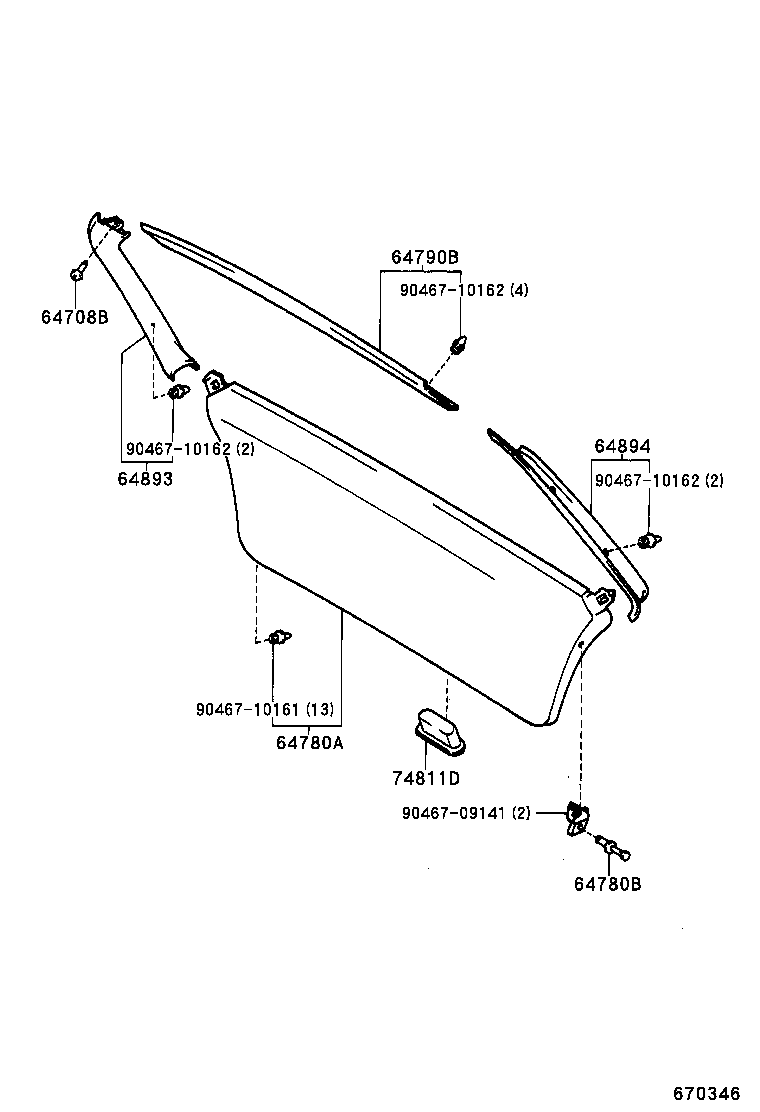

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

diagram 64708B 64780A 64780B 64790B 64893 64894 74811D 9046709141 9046710161 9046710162 9046710162 9046710162
Part # Description Qty Price
64708B - CLIP, BACK DOOR TRIM
90467-0707222

AE111

BLACK,TRIM1#

 2
64780A - PANEL ASSY, BACK DOOR TRIM
64780-13070B0

AE111

MD.CHARCOAL,TRIM1#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-07073B1

AE111

MD.CHARCOAL,TRIM1#

 2
64790B - PANEL ASSY, BACK DOOR TRIM, UPPER
64790-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
64893 - COVER, BACK DOOR TRIM, UPPER, RH
64893-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
64894 - COVER, BACK DOOR TRIM, UPPER, LH
64894-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
74811D - HANDLE, DOOR PULL
74811-13010B2

AE111

MD.CHARCOAL,TRIM1#

 1
Common parts
90467-09141
90467-10161
90467-10162
