AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

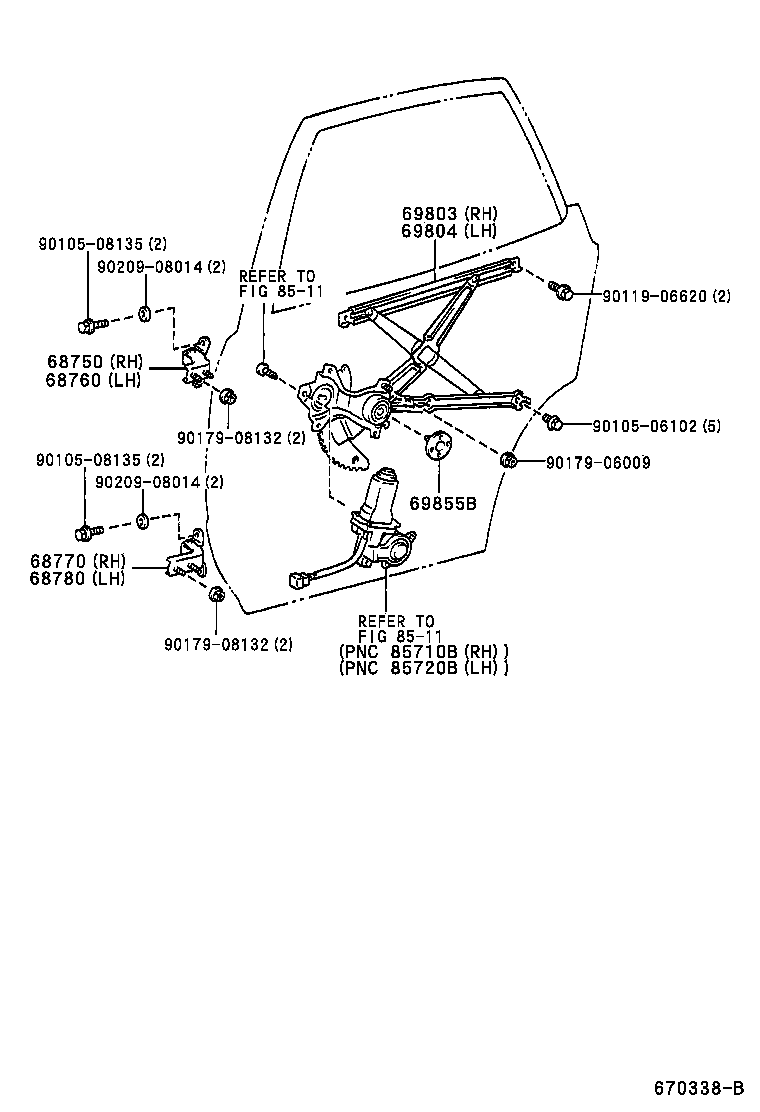

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69855B 8511 8511 9010506102 9010508135 9010508135 9011906620 9017906009 9017908132 9017908132 9020908014 9020908014
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32060

AE111

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32060

AE111

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12100

AE111

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12090

AE111

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-13010

AE111

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-13010

AE111

 1
69855B - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

AE111

 2
Common parts
90105-06102
90105-08135
90119-06620
90179-06009
90179-08132
90209-08014
Linked diagrams
8511
