AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

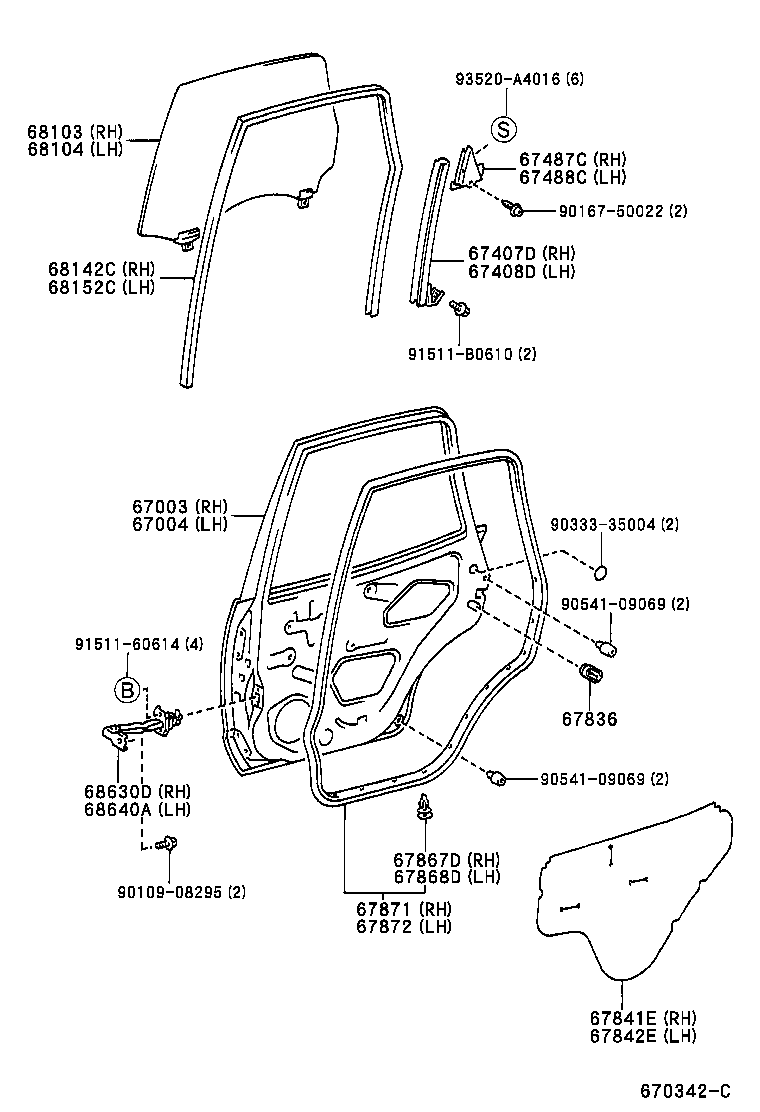

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-13260 |
AE111 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-13260 |
AE111 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-13050 |
AE111 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-13050 |
AE111 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-13030 |
AE111 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-13030 |
AE111 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
AE111 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-13040 |
AE111 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-13040 |
AE111 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE111 |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE111 |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-13120 |
AE111 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-13110 |
AE111 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-13230 |
AE111 *TT,T=3.5,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-13220 |
AE111 *TT,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-13100 |
AE111 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-13060 |
AE111 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-13010 |
AE111 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90167-50022 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 91511-60614 | ||||
| 91511-B0610 | ||||
| 93520-A4016 | ||||

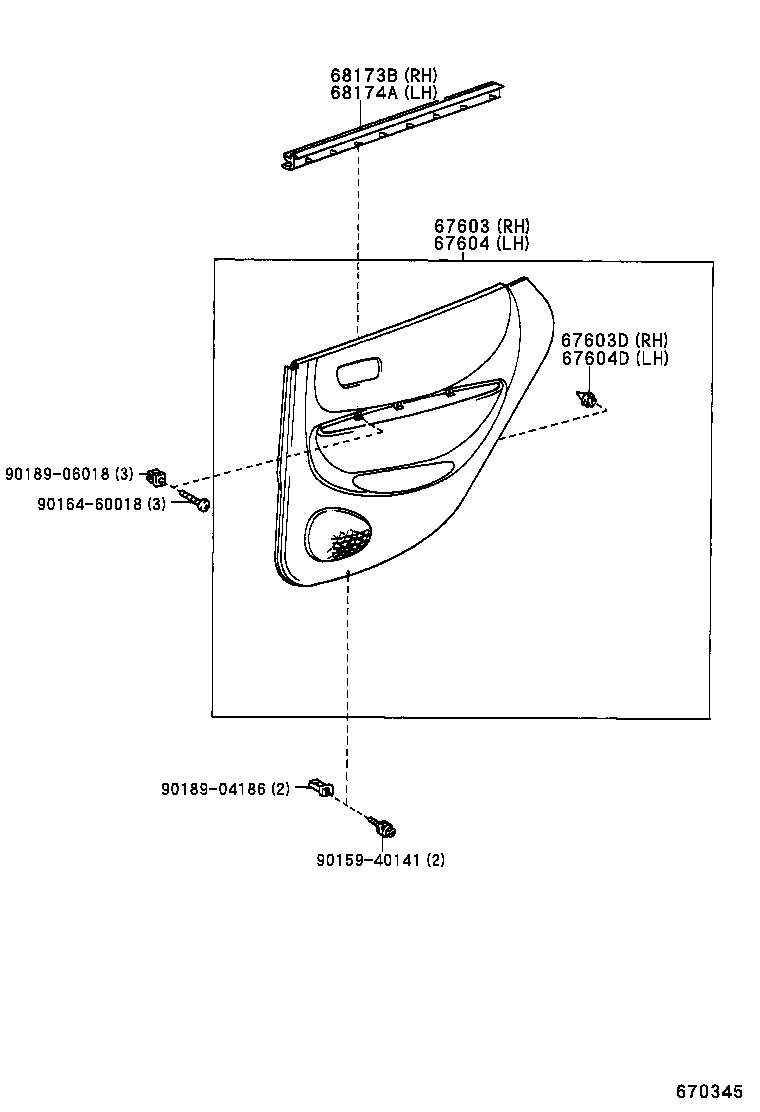

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-13670B0 |
AE111 DARK CHARCOAL,TRIM1# |
1 | ||
| 67630-13570B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE111 |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-13570B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 67640-13670B0 |
AE111 DARK CHARCOAL,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE111 |
6 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-13020 |
AE111 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-13020 |
AE111 |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60018 | ||||
| 90189-04186 | ||||
| 90189-06018 | ||||
