AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

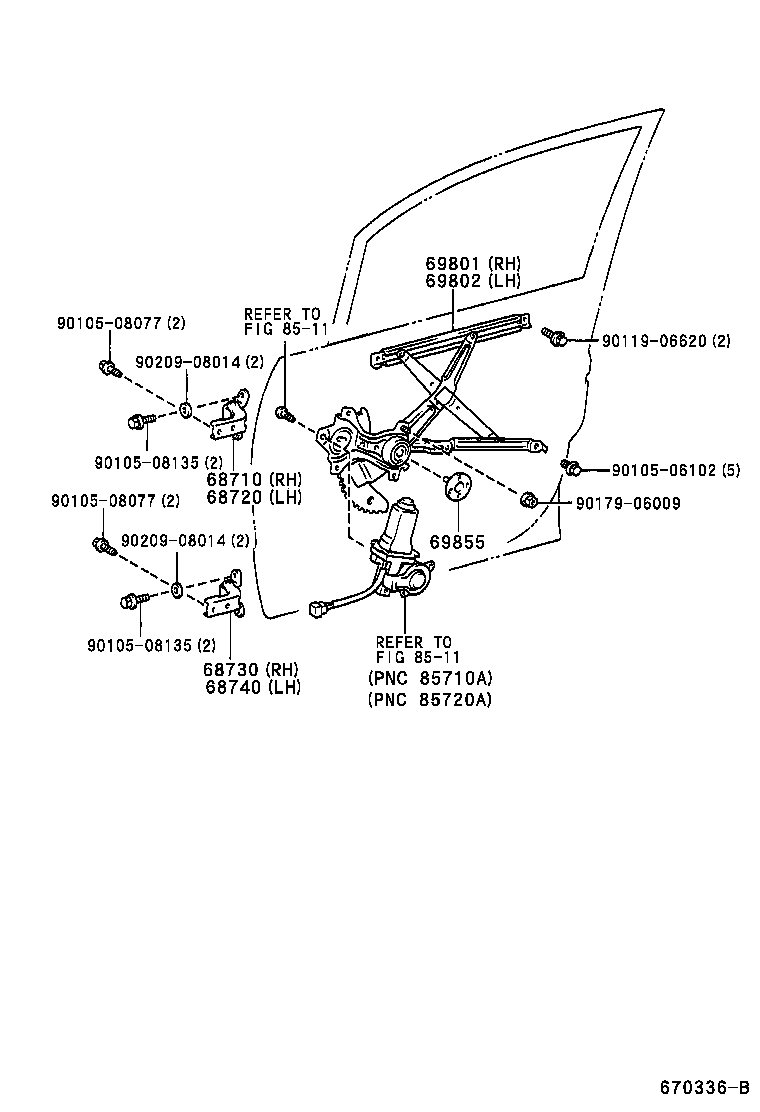

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 69855 8511 8511 9010506102 9010508077 9010508077 9010508135 9010508135 9011906620 9017906009 9020908014 9020908014
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12150

AE111

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150

AE111

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-12150

AE111

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-12150

AE111

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-13010

AE111

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-13010

AE111

 1
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

AE111

 2
Common parts
90105-06102
90105-08077
90105-08135
90119-06620
90179-06009
90209-08014
Linked diagrams
8511
