AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

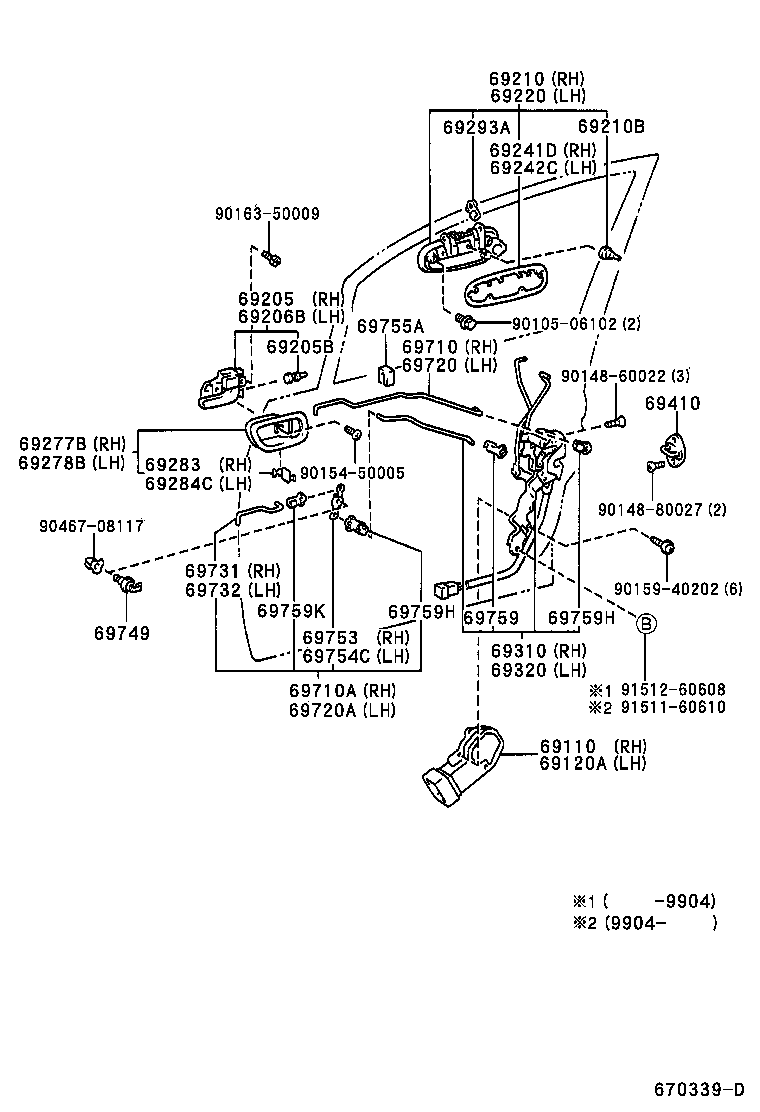

Click highlighted areas on diagram

diagram 69110 69120A 69205 69205B 69206B 69210 69210B 69220 69241D 69242C 69277B 69278B 69283 69284C 69293A 69310 69320 69410 69710 69710A 69720 69720A 69731 69732 69749 69753 69754C 69755A 69759 69759H 69759H 69759K 9010506102 9014860022 9014880027 9015450005 9015940202 9016350009 9046708117 9151160610 9151260608
Part # Description Qty Price
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-13020

AE111

W(KEY LESS ENTRY)

 1
69110-13010

AE111

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-13010

AE111

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30120B4

AE111

MD.CHARCOAL,TRIM1#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

AE111

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30120B4

AE111

MD.CHARCOAL,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12290B3

AE111

SILVER ME,199

 1
69210-12290J0

AE111

DK.BLUE MC.,8K8

 1
69210-12290C0

AE111

BLACK ME,2DB ,205

 1
69210-12290A0

AE111

SUPER WHITE 2,040

 1
69210-12290J9

AE111

BLUE MC.,8M6

 1
69210-12290C0

AE111

BLACK ME,205

 1
69210-12290G5

AE111

YELLOW GREEN ME.OP.,6Q9

 1
69210-12290G7

AE111

GREEN M.M.,6R9

 1
69210-12290D4

AE111

SUPER RED II,3E5

 1
69210-12290B7

AE111

SILVER ME.,1C0

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018

AE111

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12290J0

AE111

DK.BLUE MC.,8K8

 1
69220-12290A0

AE111

SUPER WHITE 2,040

 1
69220-12290C0

AE111

BLACK ME,205

 1
69220-12290G7

AE111

GREEN M.M.,6R9

 1
69220-12290B3

AE111

SILVER ME,199

 1
69220-12290D4

AE111

SUPER RED II,3E5

 1
69220-12290J9

AE111

BLUE MC.,8M6

 1
69220-12290C0

AE111

BLACK ME,2DB ,205

 1
69220-12290B6

AE111

SILVER ME.,1C0

 1
69220-12290G5

AE111

YELLOW GREEN ME.OP.,6Q9

 1
69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH
69241-12100

AE111

 1
69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH
69242-12050

AE111

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-30150B3

AE111

MD.CHARCOAL,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-30080B3

AE111

MD.CHARCOAL,TRIM1#

 1
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-30040B4

AE111

MD.CHARCOAL,TRIM1#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-30040B4

AE111

MD.CHARCOAL,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

AE111

YELLOW

 2
69293-12030

AE111

NATURAL

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-13040

AE111

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-13030

AE111

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AE111

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-13010

AE111

 1
69710A - LEVER ASSY, FRONT DOOR LOCK CONTROL, RH
69710-13010

AE111

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-13010

AE111

 1
69720A - LEVER ASSY, FRONT DOOR LOCK CONTROL, LH
69720-13010

AE111

 1
69731 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69731-13010

AE111

 1
69732 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69732-13010

AE111

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32030

AE111

 2
69753 - BELLCRANK, DOOR LOCK CONTROL, RH
69753-12110

AE111

 1
69754C - BELLCRANK, DOOR LOCK CONTROL, LH
69754-12040

AE111

 1
69755A - SILENCER, FRONT DOOR LOCK LINK
69759-20390

AE111

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24080

AE111

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-33030

AE111

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-33030

AE111

 2
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24050

AE111

GREEN

 2
69759-24060

AE111

GRAY

 2
Common parts
90105-06102
90148-60022
90148-80027
90154-50005
90159-40202
90163-50009
90467-08117
91511-60610
91512-60608
