AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

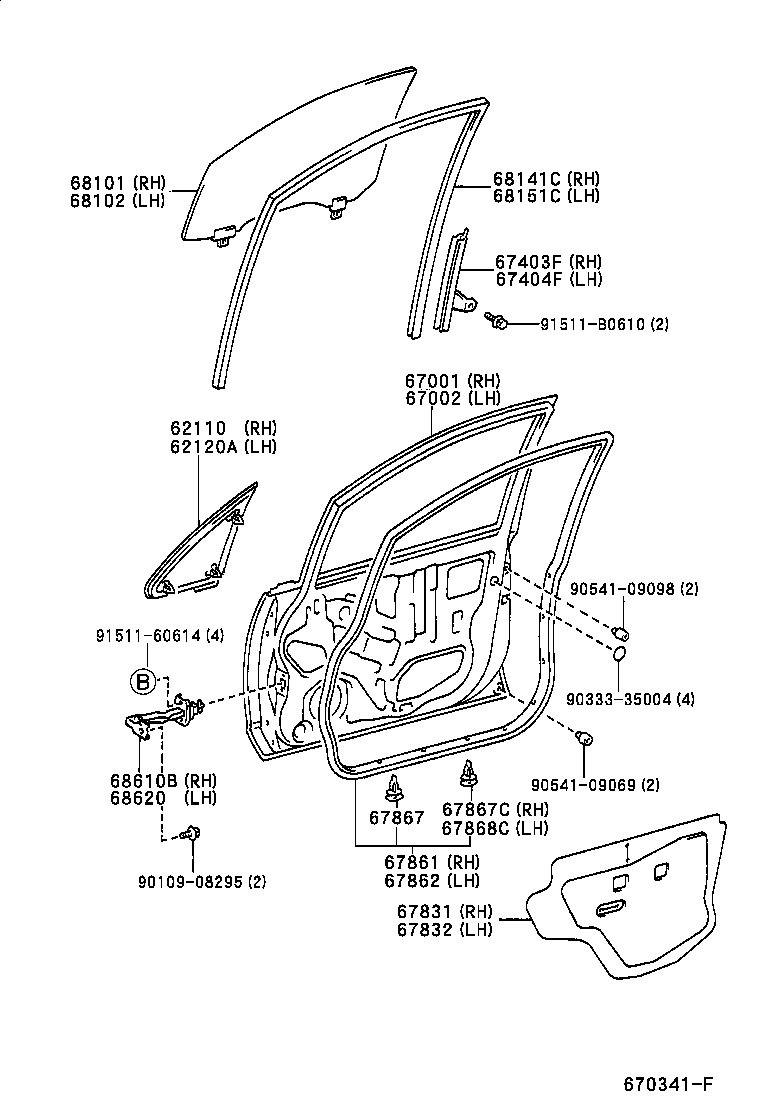

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62110 - WINDOW ASSY, FRONT SIDE FIX, RH | ||||
| 62110-13030 |
AE111 *TT,T=3.5,GREEN |
1 | ||
| 62120A - WINDOW ASSY, FRONT SIDE FIX, LH | ||||
| 62120-13030 |
AE111 *TT,T=3.5,GREEN |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-13110 |
AE111 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-13090 |
AE111 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-13010 |
AE111 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-13010 |
AE111 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-13050 |
AE111 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-13040 |
AE111 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-13020 |
AE111 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-13020 |
AE111 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
AE111 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE111 |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE111 |
16 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-13030 |
AE111 *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-13030 |
AE111 *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-13130 |
AE111 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-13030 |
AE111 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-13010 |
AE111 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 90541-09098 | ||||
| 91511-60614 | ||||
| 91511-B0610 | ||||

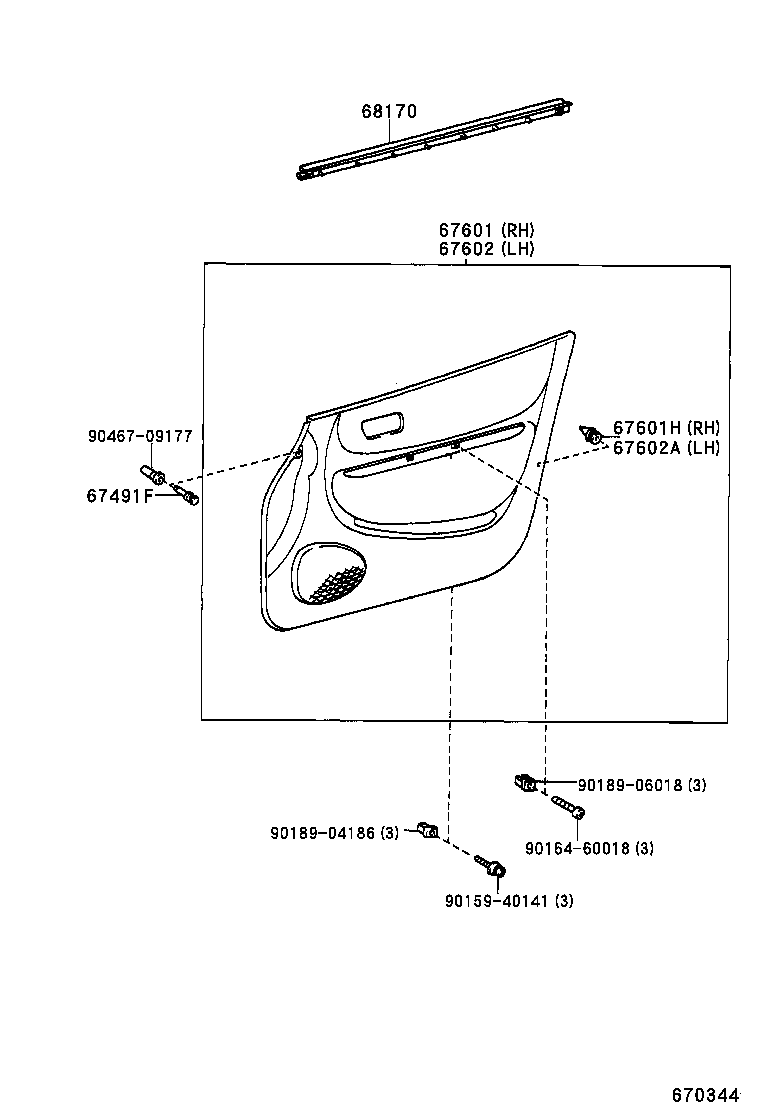

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-07066B8 |
AE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-13660B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-13780B0 |
AE111 DARK CHARCOAL,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AE111 |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-13590B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-13690B0 |
AE111 DARK CHARCOAL,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111 |
5 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-13020 |
AE111 |
2 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60018 | ||||
| 90189-04186 | ||||
| 90189-06018 | ||||
| 90467-09177 | ||||
