AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )06S

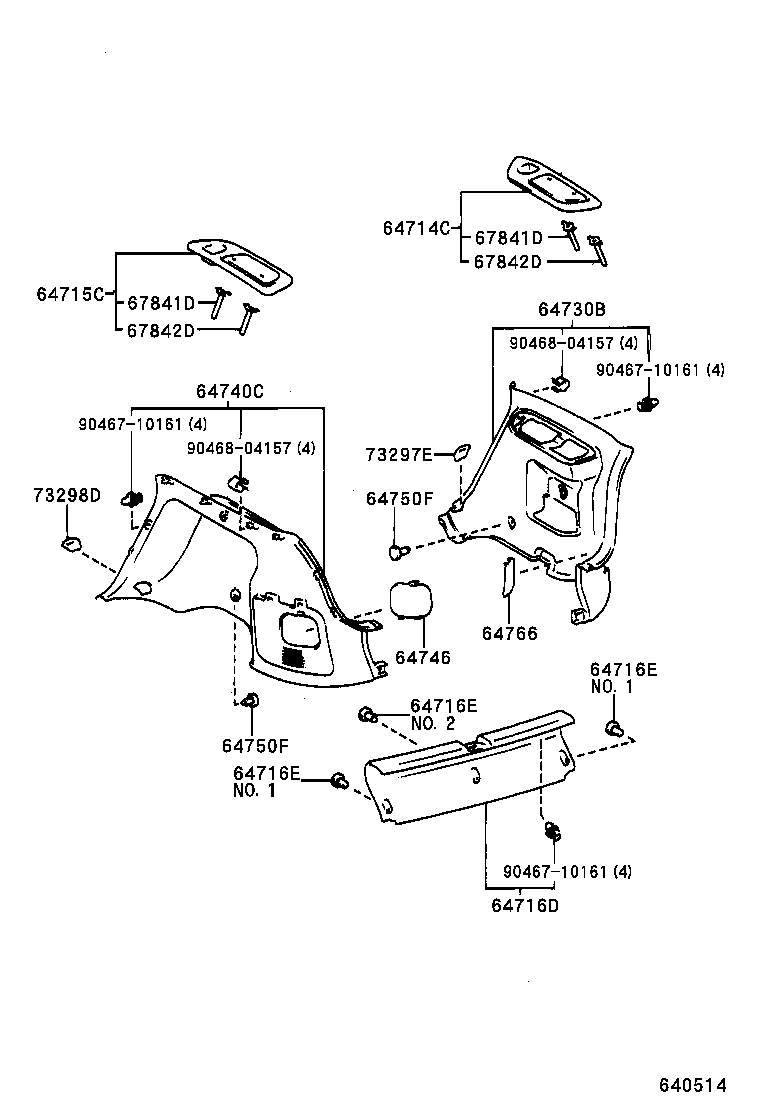

Click highlighted areas on diagram

diagram 64714C 64715C 64716D 64716E 64716E 64716E 64730B 64740C 64746 64750F 64750F 64766 67841D 67841D 67842D 67842D 73297E 73298D 9046710161 9046710161 9046710161 9046804157 9046804157
Part # Description Qty Price
64714C - COVER, DECK SIDE TRIM, RH
64714-13040B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
64714-13090B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-13040B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
64715-13090B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
64716D - COVER, DECK TRIM, REAR
64716-13100B0

AE111

MD.CHARCOAL,TRIM1#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-07059B3

AE111

MD.CHARCOAL,TRIM1#,NO.2

 1
90467-04017B0

AE111

MD.CHARCOAL,TRIM1#,NO.1

 2
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-07059B3

AE111

MD.CHARCOAL,TRIM1#,NO.2

 1
90467-04017B0

AE111

MD.CHARCOAL,TRIM1#,NO.1

 2
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-07059B3

AE111

MD.CHARCOAL,TRIM1#,NO.2

 1
90467-04017B0

AE111

MD.CHARCOAL,TRIM1#,NO.1

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-13080B0

AE111..06S

MD. CHARCOAL,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-13070B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-07059B3

AE111..06S

MD.CHARCOAL,TRIM1#

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-07059B3

AE111..06S

MD.CHARCOAL,TRIM1#

 2
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-13090B0

AE111

MD.CHARCOAL,TRIM1#

 1
67841D - COVER, QUARTER SERVICE HOLE, RH
67841-13050B0

AE111..06S

MD.CHARCOAL,TRIM1#

 2
67841D - COVER, QUARTER SERVICE HOLE, RH
67841-13050B0

AE111..06S

MD.CHARCOAL,TRIM1#

 2
67842D - COVER, QUARTER SERVICE HOLE, LH
67841-13050B0

AE111..06S

MD.CHARCOAL,TRIM1#

 2
67842D - COVER, QUARTER SERVICE HOLE, LH
67841-13050B0

AE111..06S

MD.CHARCOAL,TRIM1#

 2
73297E - COVER, DECK TRIM SIDE BELT HOLE, RH
73297-13020B0

AE111

MD.CHARCOAL,TRIM1#

 1
73298D - COVER,DECK TRIM SIDE BELT HOLE, LH
73298-13010B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
Common parts
90467-10161
90468-04157
