AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

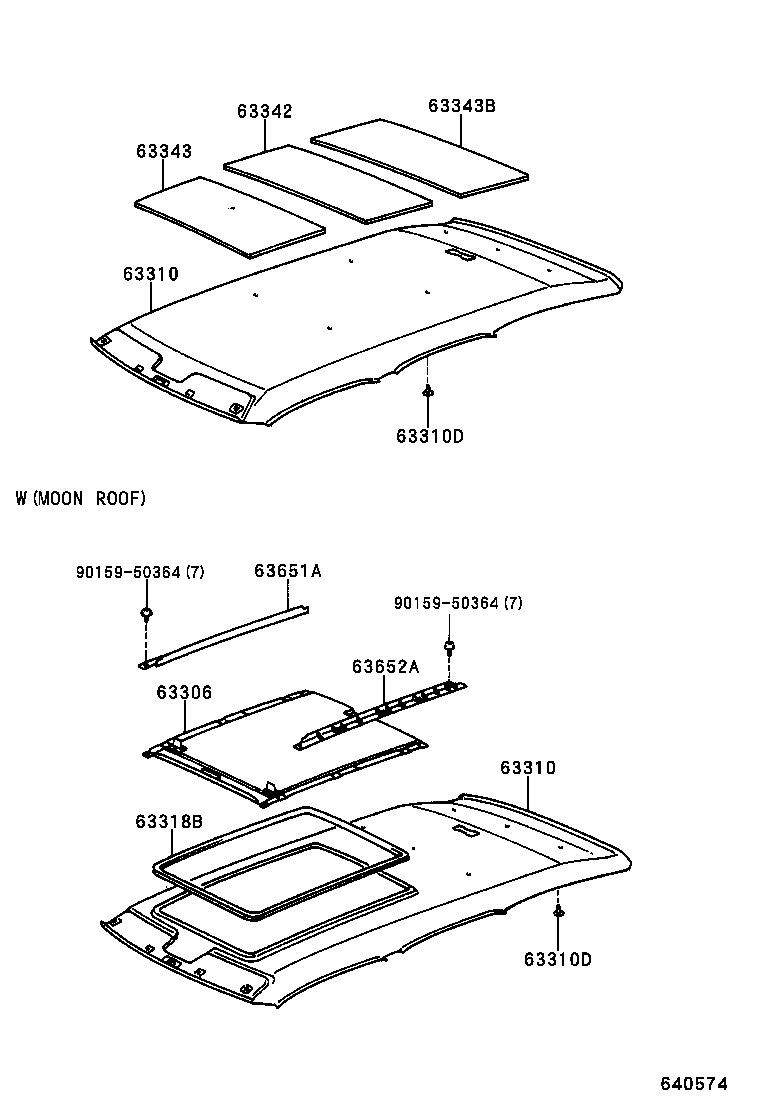

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310D 63318B 63342 63343 63343B 63651A 63652A 9015950364 9015950364
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-13020B0

AE111

MEDIUM CHARCOAL,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-13460B0

AE111..06S

W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#

 1
63310-13440B0

AE111..06S

MEDIUM CHARCOAL,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-13460B0

AE111..06S

W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#

 1
63310-13440B0

AE111..06S

MEDIUM CHARCOAL,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05129B2

AE111

W(MOON ROOF),MD.CHARCOAL,TRIM1#

 6
90467-05129B2

AE111

MD.CHARCOAL,TRIM1#

 7
63310D - CLIP, ROOF HEADLINING
90467-05129B2

AE111

W(MOON ROOF),MD.CHARCOAL,TRIM1#

 6
90467-05129B2

AE111

MD.CHARCOAL,TRIM1#

 7
63318B - MOULDING, ROOF HEADLINING SET, NO.1
63318-13020B0

AE111

MD.CHARCOAL,TRIM1#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-13100

AE111

 1
63343 - PAD, ROOF SILENCER, NO.3
63357-90B05

AE111

 1
63341-13120

AE111

 1
63343B - PAD, ROOF SILENCER, REAR
63343-13040

AE111

 1
63651A - GARNISH, SUNSHADE, NO.1 RH
63651-13010

AE111

 1
63652A - GARNISH, SUNSHADE, NO.1 LH
63652-13010

AE111

 1
Common parts
90159-50364
