AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

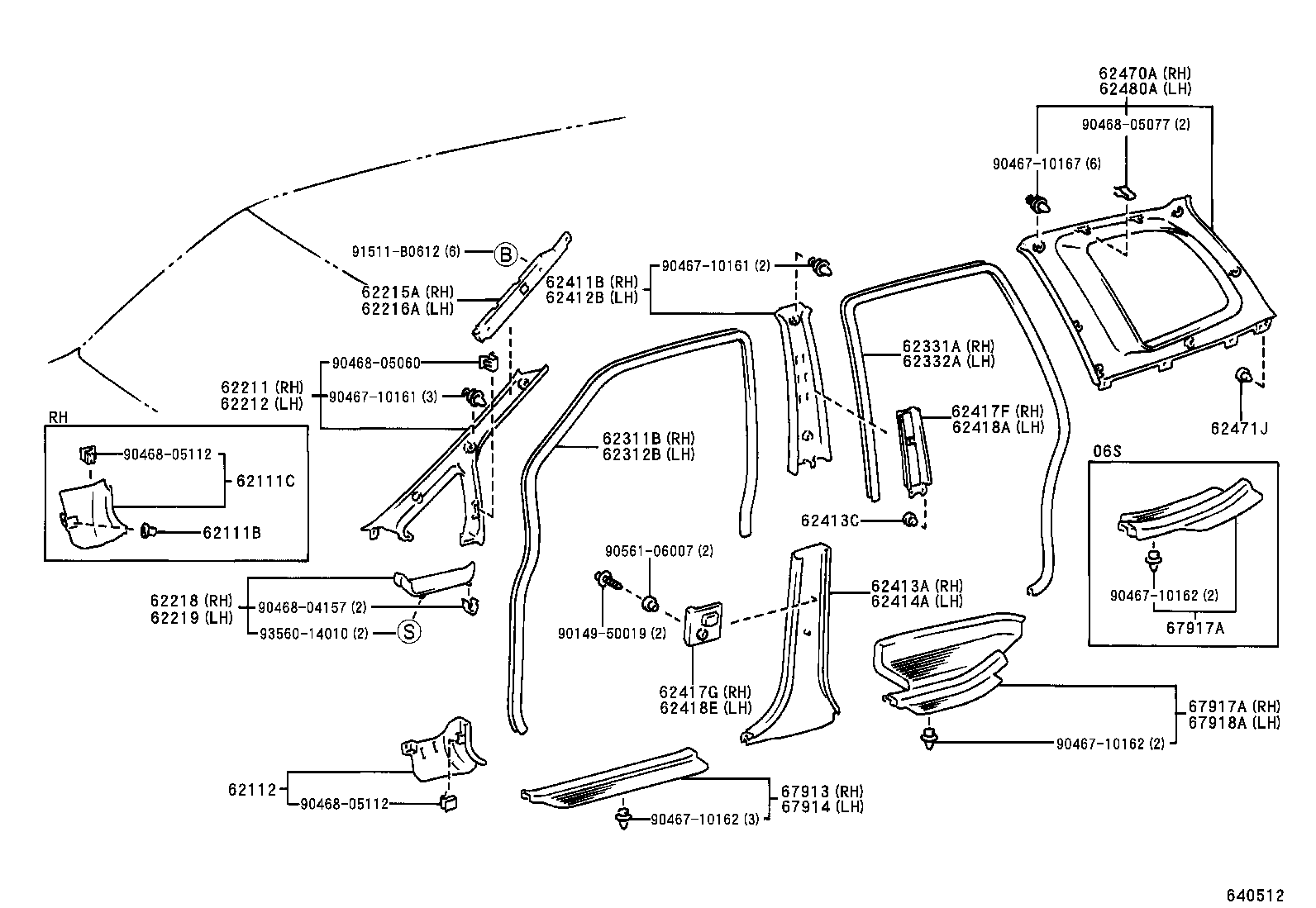

Click highlighted areas on diagram

diagram 62111B 62111C 62112 62211 62212 62215A 62216A 62218 62219 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62413C 62414A 62417F 62417G 62418A 62418E 62470A 62471J 62480A 67913 67914 67917A 67917A 67918A 9014950019 9046710161 9046710161 9046710162 9046710162 9046710162 9046710167 9046804157 9046805060 9046805077 9046805112 9046805112 9056106007 91511B0612 9356014010
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0505022

AE111

BLACK,TRIM1#

 1
62111C - BOARD, COWL SIDE TRIM, RH
62111-12231B1

AE111

MD.CHARCOAL,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-12230B1

AE111

MD.CHARCOAL,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-13050B0

AE111

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-13050B0

AE111

MD.CHARCOAL,TRIM1#

 1
62215A - INSERT, FRONT PILLAR GARNISH, RH
62215-13010

AE111

 1
62216A - INSERT, FRONT PILLAR GARNISH, LH
62216-13010

AE111

 1
62218 - PIECE, FRONT PILLAR GARNISH CORNER, RH
62218-13020B0

AE111

MD.CHARCOAL,TRIM1#

 1
62219 - PIECE, FRONT PILLAR GARNISH CORNER, LH
62219-13020B0

AE111

MD.CHARCOAL,TRIM1#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-13011B0

AE111

MD.CHARCOAL,TRIM1#

 1
62311-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-13011B0

AE111

MD.CHARCOAL,TRIM1#

 1
62312-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-13011B0

AE111

MD.CHARCOAL,TRIM1#

 1
62331-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
62332-13011B0

AE111

MD.CHARCOAL,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-13040B0

AE111

MD.CHARCOAL,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-13040B0

AE111

MD.CHARCOAL,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-13030B0

AE111

MD.CHARCOAL,TRIM1#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-07059B3

AE111

MD.CHARCOAL,TRIM1#

 6
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-13030B0

AE111

MD.CHARCOAL,TRIM1#

 1
62417F - PAD, CENTER PILLAR GARNISH, RH
62417-13010

AE111

 1
62417G - PAD, CENTER PILLAR GARNISH, LOWER RH
62417-13020

AE111

 1
62418A - PAD, CENTER PILLAR GARNISH, LH
62418-13010

AE111

 1
62418E - PAD, CENTER PILLAR GARNISH, LOWER LH
62418-13020

AE111

 1
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-13040B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-07059B3

AE111

MD.CHARCOAL,TRIM1#

 2
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-13040B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-12240B1

AE111

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-12210B1

AE111

MD.CHARCOAL,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-13040B0

AE111

MD.CHARCOAL,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-13040B0

AE111

MD.CHARCOAL,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-13040B0

AE111..06S

MD.CHARCOAL,TRIM1#

 1
Common parts
90149-50019
90467-10161
90467-10162
90467-10167
90468-04157
90468-05060
90468-05077
90468-05112
90561-06007
91511-B0612
93560-14010
