AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

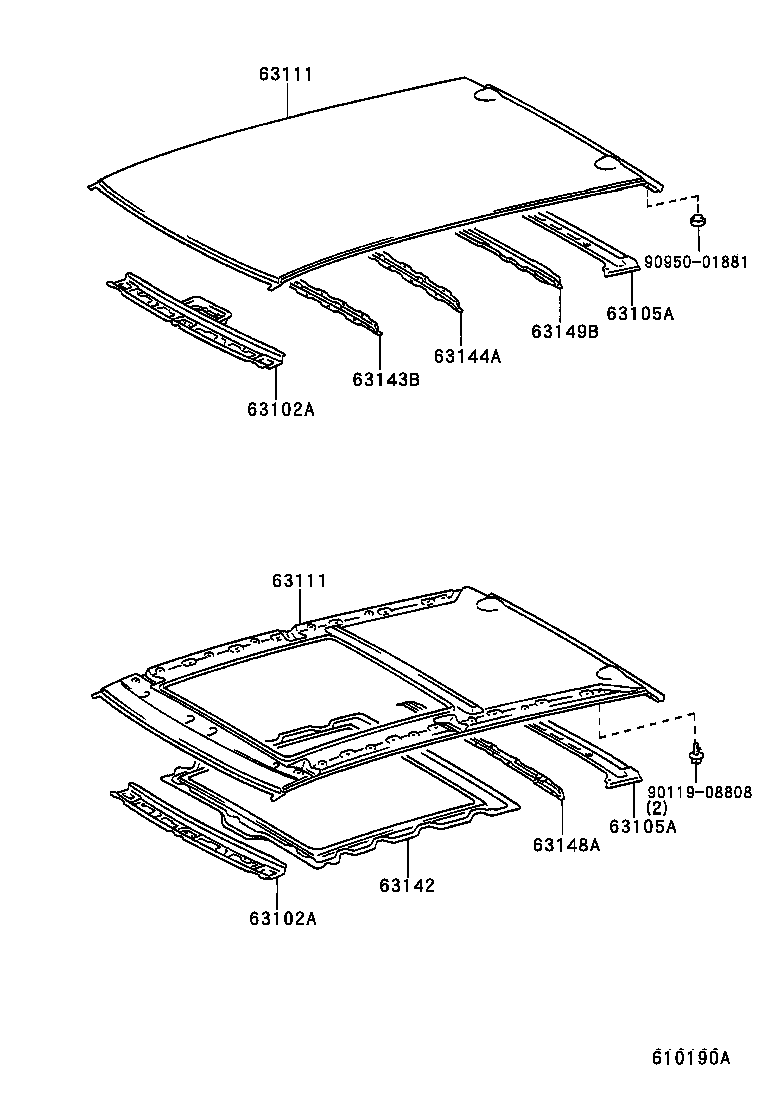

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-13040 |
AE111 |
1 | ||
| 63102-13050 |
AE111 W(MOON ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-13040 |
AE111 |
1 | ||
| 63102-13050 |
AE111 W(MOON ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13150 |
AE111 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13150 |
AE111 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13240 |
AE111 W(ROOF RAIL) |
1 | ||
| 63111-13230 |
AE111 W(MOON ROOF) |
1 | ||
| 63111-13220 |
AE111 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13240 |
AE111 W(ROOF RAIL) |
1 | ||
| 63111-13230 |
AE111 W(MOON ROOF) |
1 | ||
| 63111-13220 |
AE111 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-13070 |
AE111 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-13050 |
AE111 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-13020 |
AE111 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-13010 |
AE111 |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63149-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-08808 | ||||
| 90950-01881 | ||||

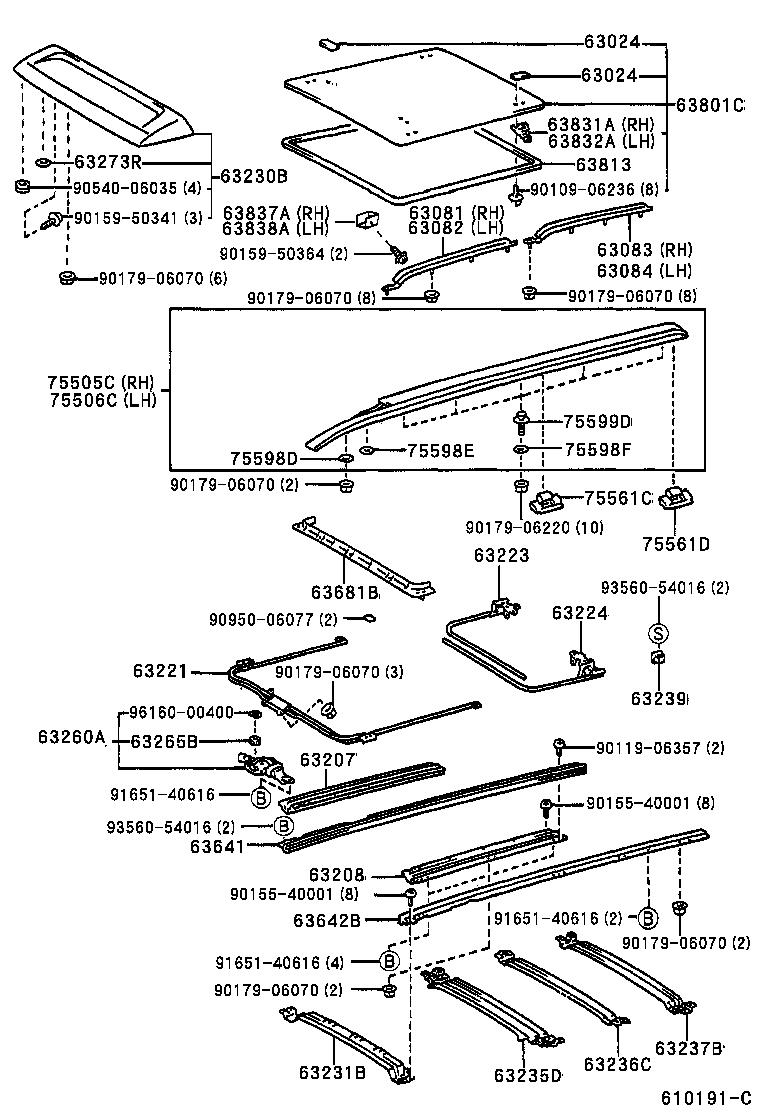

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-95700 |
AE111 |
6 | ||
| 63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-95700 |
AE111 |
6 | ||
| 63081 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT RH | ||||
| 63081-13010 |
AE111 |
1 | ||
| 63082 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT LH | ||||
| 63082-13010 |
AE111 |
1 | ||
| 63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH | ||||
| 63083-13010 |
AE111 |
1 | ||
| 63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH | ||||
| 63084-13010 |
AE111 |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-13020 |
AE111 |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-13020 |
AE111 |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-13020 |
AE111 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-13020 |
AE111 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-13020 |
AE111 |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-13010 |
AE111 |
1 | ||
| 63231B - FRAME, SLIDING ROOF HOUSING, FRONT | ||||
| 63231-13010 |
AE111 |
1 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-13010 |
AE111 |
1 | ||
| 63236C - FRAME, SLIDING ROOF HOUSING, NO.2 | ||||
| 63236-13030 |
AE111 |
1 | ||
| 63237B - FRAME, SLIDING ROOF HOUSING, REAR | ||||
| 63237-13010 |
AE111 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-13010 |
AE111 |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-13020 |
AE111 |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
AE111 |
1 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-21010 |
AE111 |
2 | ||
| 63641 - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63681-13020 |
AE111 |
1 | ||
| 63642B - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63682-13010 |
AE111 |
1 | ||
| 63681B - RAIL, SUNSHADE, NO.1 FRONT | ||||
| 63681-13010 |
AE111 |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-13010 |
AE111 *TT,T=5.0,GRAY |
1 | ||
| 63813 - WEATHERSTRIP, REAR SLIDE ROOF | ||||
| 63813-13010 |
AE111 |
1 | ||
| 63831A - SHOE, REAR SLIDE ROOF, RH | ||||
| 60383-13010 |
AE111 |
2 | ||
| 63832A - SHOE, REAR SLIDE ROOF, LH | ||||
| 60384-13010 |
AE111 |
2 | ||
| 63837A - GARNISH, REAR SLIDE ROOF, RH | ||||
| 63837-13010 |
AE111 |
1 | ||
| 63838A - GARNISH, REAR SLIDE ROOF, LH | ||||
| 63838-13010 |
AE111 |
1 | ||
| 75505C - GARNISH SUB-ASSY, ROOF SIDE, FRONT RH | ||||
| 75505-13040 |
AE111 |
1 | ||
| 75506C - GARNISH SUB-ASSY, ROOF SIDE, FRONT LH | ||||
| 75506-13040 |
AE111 |
1 | ||
| 75561C - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-13030 |
AE111 |
1 | ||
| 75561-13030 |
AE111 |
18 | ||
| 75561D - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2 | ||||
| 75561-13040 |
AE111 |
1 | ||
| 75561-13040 |
AE111 |
2 | ||
| 75598D - PACKING ROOF SIDE GARNISH, NO.1 | ||||
| 75598-13010 |
AE111 |
2 | ||
| 75598E - PACKING, ROOF SIDE GARNISH, NO.2 | ||||
| 75598-13020 |
AE111 |
2 | ||
| 75598F - PACKING, ROOF SIDE GARNISH, NO.3 | ||||
| 75598-13030 |
AE111 |
10 | ||
| 75599D - BOLT, ROOF SIDE GARNISH | ||||
| 75599-95D00 |
AE111 |
10 | ||
| Common parts | ||||
| 90109-06236 | ||||
| 90119-06357 | ||||
| 90155-40001 | ||||
| 90159-50341 | ||||
| 90159-50364 | ||||
| 90179-06070 | ||||
| 90179-06220 | ||||
| 90540-06035 | ||||
| 90950-06077 | ||||
| 91651-40616 | ||||
| 93560-54016 | ||||
| 96160-00400 | ||||

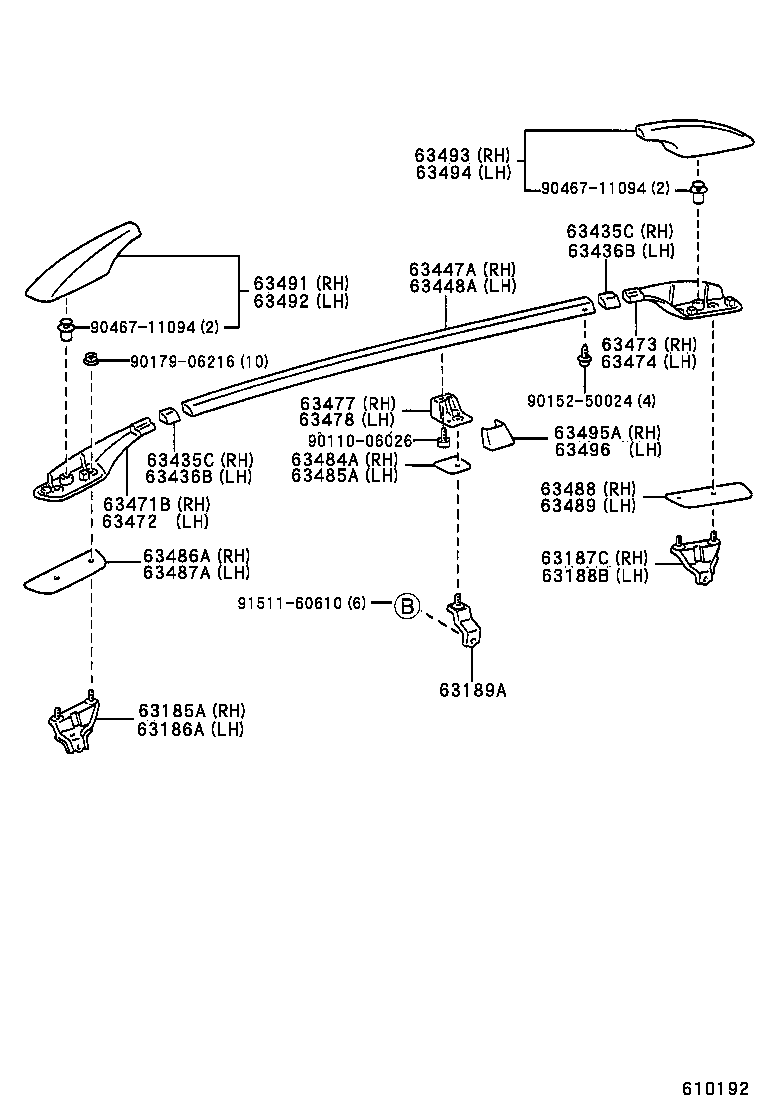

(9805- )
Click highlighted areas on diagram
W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-13040 |
AE111 |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-13040 |
AE111 |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-13010 |
AE111 |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-13010 |
AE111 |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13040 |
AE111 |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13030 |
AE111 RH |
1 | ||
| 63436-13040 |
AE111 LH |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13030 |
AE111 RH |
1 | ||
| 63436-13040 |
AE111 LH |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13040 |
AE111 RH |
1 | ||
| 63436-13020 |
AE111 LH |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13040 |
AE111 RH |
1 | ||
| 63436-13020 |
AE111 LH |
1 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-13050 |
AE111 |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-13050 |
AE111 |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-13040 |
AE111 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-13040 |
AE111 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-13050 |
AE111 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-13050 |
AE111 |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-13040 |
AE111 |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-13040 |
AE111 |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-13040 |
AE111 |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-13040 |
AE111 |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-13040 |
AE111 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-13040 |
AE111 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-13050 |
AE111 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-13050 |
AE111 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13040 |
AE111 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13040 |
AE111 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-13050 |
AE111 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-13050 |
AE111 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-13040 |
AE111 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-13040 |
AE111 |
1 | ||
| Common parts | ||||
| 90110-06026 | ||||
| 90152-50024 | ||||
| 90179-06216 | ||||
| 90467-11094 | ||||
| 91511-60610 | ||||
