AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

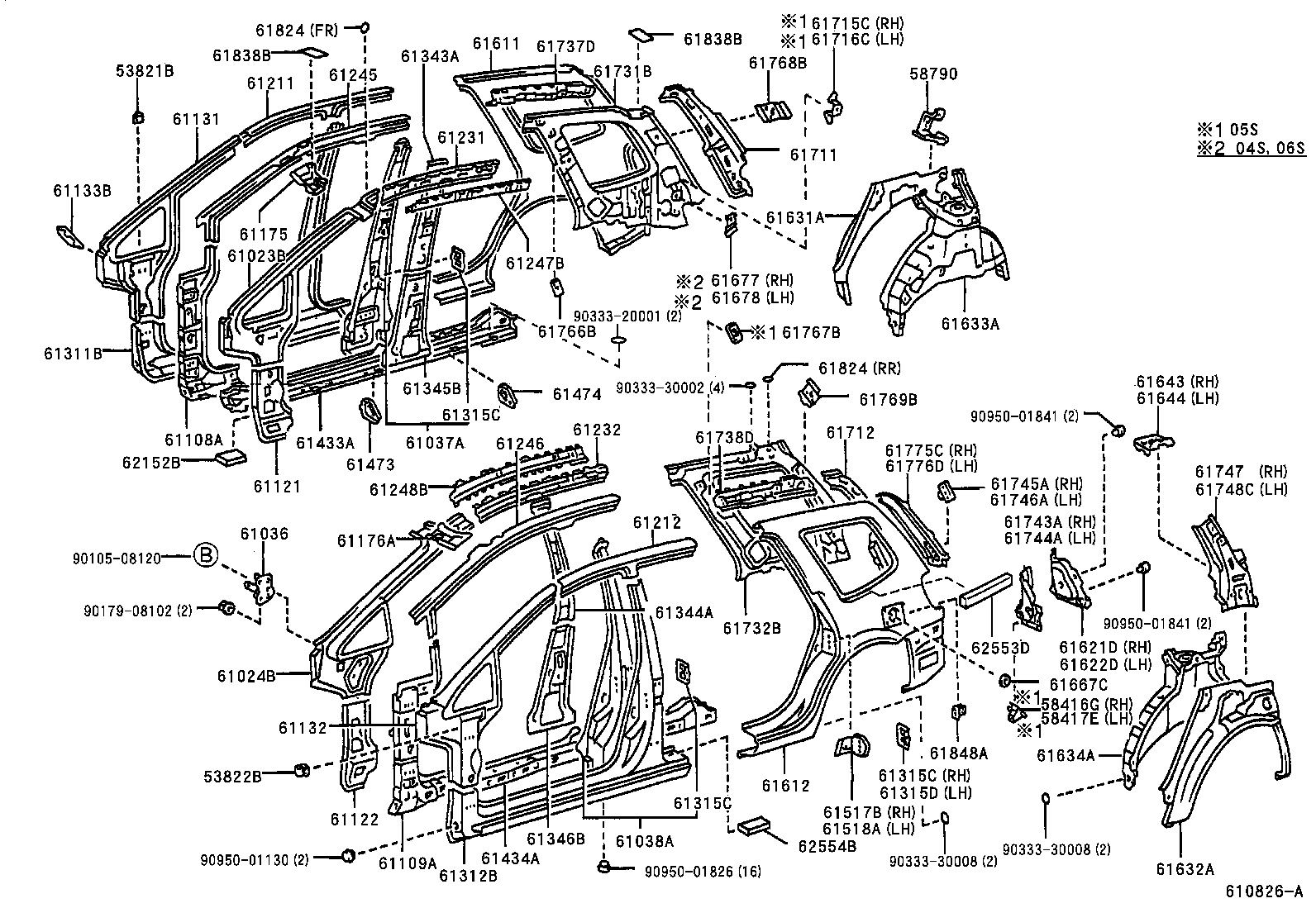

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
AE111 |
2 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
AE111 |
2 | ||
| 58790 - CARRIER ASSY, JACK | ||||
| 58791-13080 |
AE111 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-13900 |
AE111 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-13900 |
AE111 |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-13010 |
AE111 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-13010 |
AE111 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-13010 |
AE111 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-13010 |
AE111 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-13010 |
AE111 |
1 | ||
| 61121 - PANEL, COWL SIDE, OUTER RH | ||||
| 61121-13010 |
AE111 |
1 | ||
| 61122 - PANEL, COWL SIDE, OUTER LH | ||||
| 61122-13010 |
AE111 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-13010 |
AE111 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-13010 |
AE111 |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-13010 |
AE111 |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-13010 |
AE111 |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-13010 |
AE111 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-13060 |
AE111 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-13060 |
AE111 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-13160 |
AE111 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-13130 |
AE111 |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-13010 |
AE111 |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-13010 |
AE111 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-13010 |
AE111 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61248-13010 |
AE111 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-13010 |
AE111 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-13010 |
AE111 |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61315-22020 |
AE111 |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61315-22020 |
AE111 |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61315-22020 |
AE111 |
1 | ||
| 61315D - RETAINER, DOOR LOCK STRIKER, LH | ||||
| 61315-22020 |
AE111 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-13010 |
AE111 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-13010 |
AE111 |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-13010 |
AE111 |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-13010 |
AE111 |
1 | ||
| 61433A - REINFORCEMENT, ROCKER PANEL, OUTER RH | ||||
| 61433-13010 |
AE111 |
1 | ||
| 61434A - REINFORCEMENT, ROCKER PANEL, OUTER LH | ||||
| 61434-13010 |
AE111 |
1 | ||
| 61473 - PLATE, PILLAR NO.3, LOWER | ||||
| 61473-13010 |
AE111 |
1 | ||
| 61474 - PLATE, PILLAR NO.4, LOWER | ||||
| 61474-13010 |
AE111 |
1 | ||
| 61517B - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61517-13010 |
AE111 |
1 | ||
| 61518A - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61518-13010 |
AE111 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-13340 |
AE111 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-13340 |
AE111 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-13041 |
AE111 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-13041 |
AE111 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-13100 |
AE111 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-13090 |
AE111 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-13200 |
AE111..06S |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-13190 |
AE111..06S |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-13040 |
AE111 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61643-13040 |
AE111 |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-12110 |
AE111 |
2 | ||
| 61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61677-13020 |
AE111..06S |
1 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61678-13020 |
AE111..06S |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-13110 |
AE111 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-13110 |
AE111 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-13370 |
AE111 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-13380 |
AE111 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-13050 |
AE111 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61709-13020 |
AE111 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-13030 |
AE111 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-13030 |
AE111 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-13090 |
AE111 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-13080 |
AE111 |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-13040 |
AE111 |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-13070 |
AE111 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-12220 |
AE111 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-13060 |
AE111 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-13060 |
AE111 |
1 | ||
| 61775C - FRAME, BACK DOOR OPENING SIDE, RH | ||||
| 61775-13010 |
AE111 |
1 | ||
| 61776D - FRAME, BACK DOOR OPENING SIDE, LH | ||||
| 61776-13010 |
AE111 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-13010 |
AE111 FRONT |
2 | ||
| 61825-13010 |
AE111 REAR |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-13010 |
AE111 FRONT |
2 | ||
| 61825-13010 |
AE111 REAR |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-20060 |
AE111 |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-20060 |
AE111 |
2 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-13010 |
AE111 |
1 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62151-20160 |
AE111 |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-13020 |
AE111 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12130 |
AE111 |
2 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-08102 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01130 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
