AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

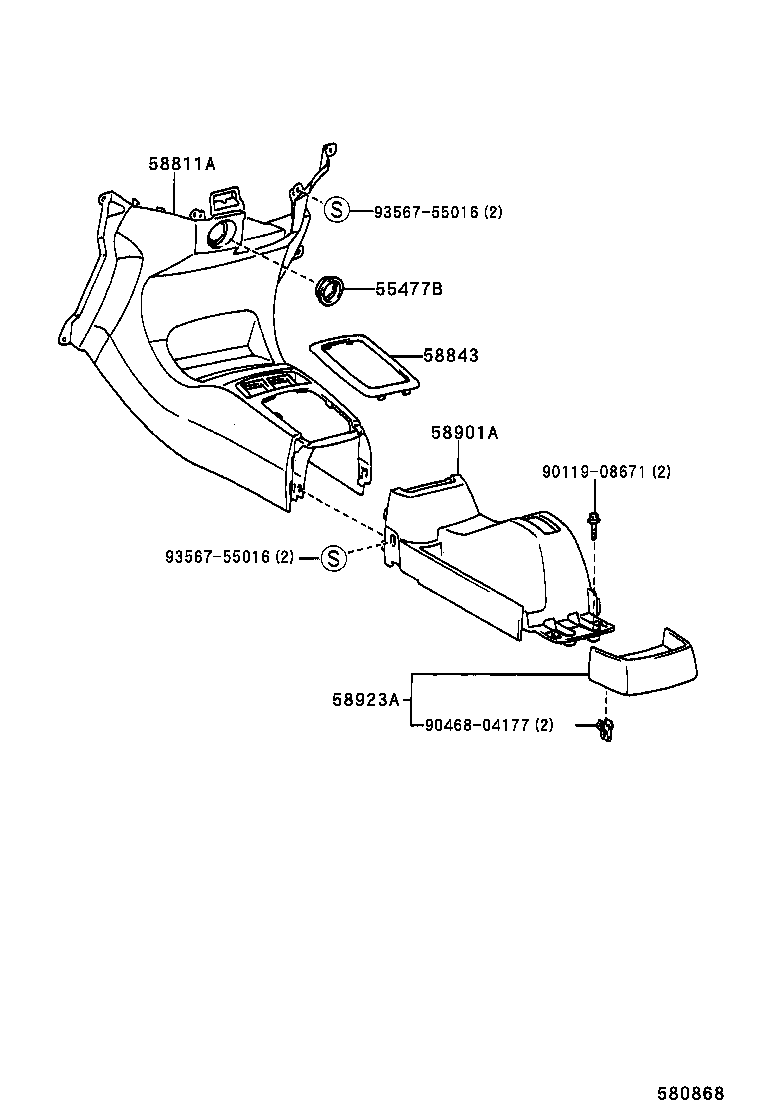

(9805-9904)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477B - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-20110 |
AE111 |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-13040B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58811-13020B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-12090B1 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08671 | ||||
| 90468-04177 | ||||
| 93567-55016 | ||||

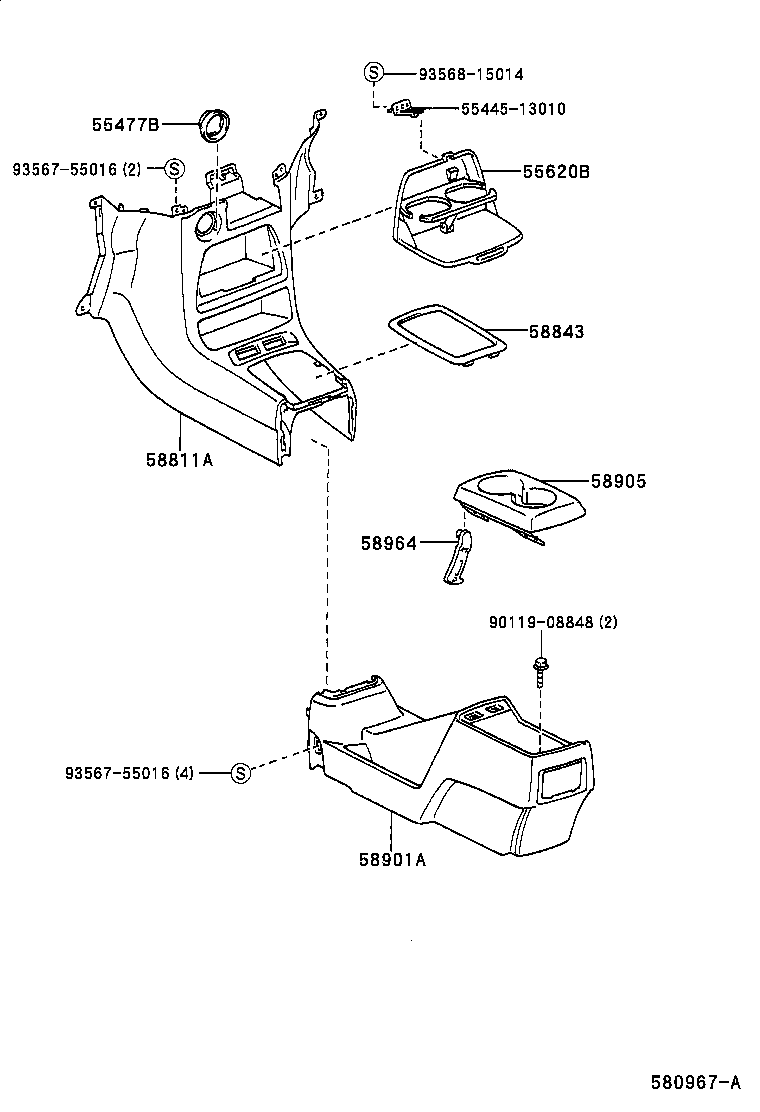

(9904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477B - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-20110 |
AE111 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-13040B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58811-13020B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-12090B1 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-13010B0 |
AE111 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 55445-13010 | ||||
| 90119-08848 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||
