AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

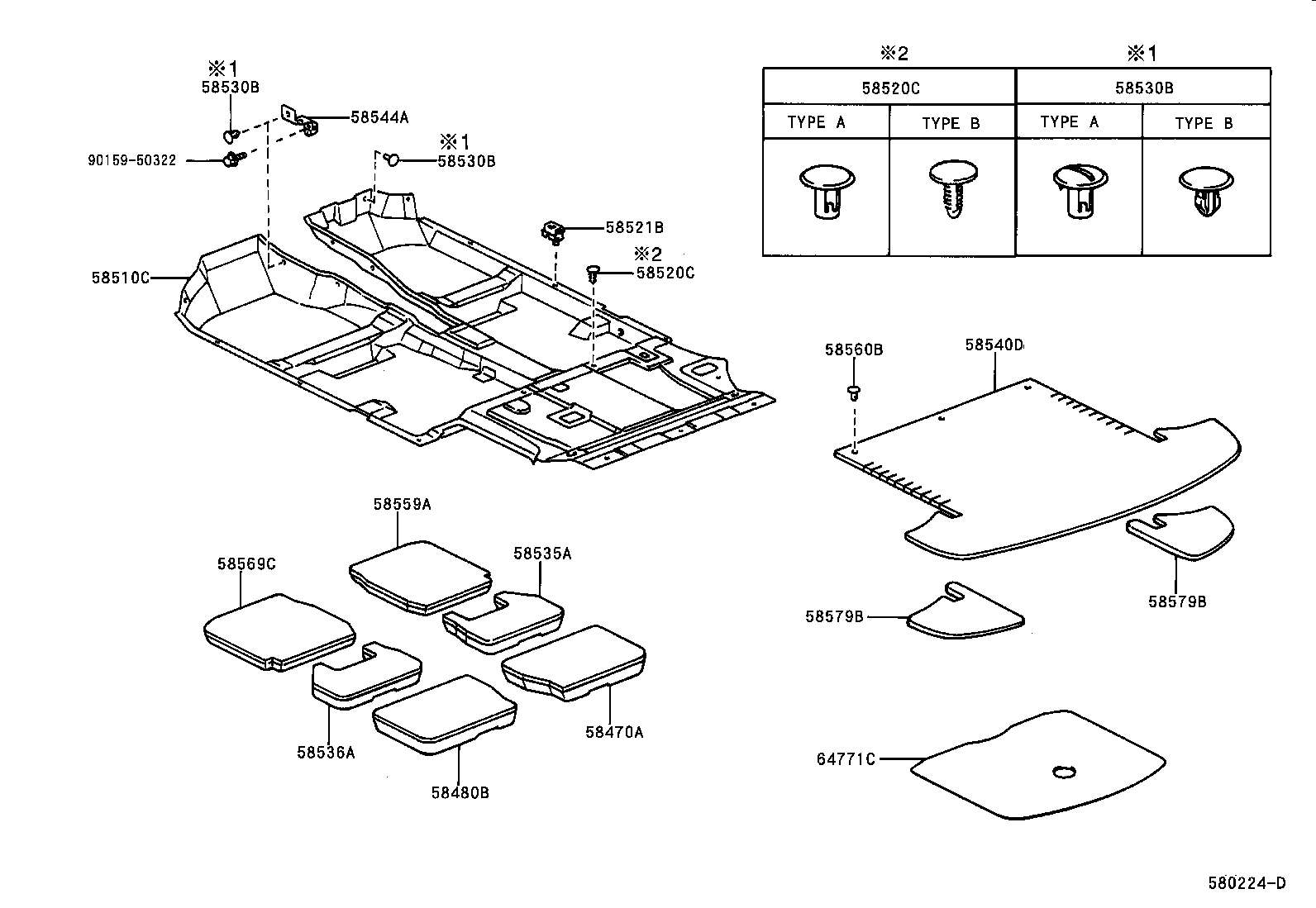

Click highlighted areas on diagram

diagram 58470A 58480B 58510C 58520C 58520C 58521B 58530B 58530B 58530B 58535A 58536A 58540D 58544A 58559A 58560B 58569C 58579B 58579B 64771C 9015950322
Part # Description Qty Price
58470A - BOARD ASSY, REAR FLOOR, NO.1
58470-13010

AE111

 1
58480B - BOARD ASSY, REAR FLOOR, NO.2
58480-13010

AE111

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1F071B0

AE111..06S

DARK CHARCOAL,TRIM1#

 1
58510-1F070B0

AE111..06S

DARK CHARCOAL,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07042B5

AE111..06S

TYPE B:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#

 3
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07042B5

AE111..06S

TYPE B:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#

 3
58521B - HOOK, FLOOR CARPET
58521-12120

AE111

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0906822

AE111

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 1
90467-09118

AE111

TYPE B:REFER TO ILLUSTRATION

 4
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0906822

AE111

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 1
90467-09118

AE111

TYPE B:REFER TO ILLUSTRATION

 4
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0906822

AE111

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 1
90467-09118

AE111

TYPE B:REFER TO ILLUSTRATION

 4
58535A - BOARD, FRONT FLOOR MAT, REAR NO.1
58535-13020

AE111

 1
58536A - BOARD, FRONT FLOOR MAT, REAR NO.2
58536-13020

AE111

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-13260B3

AE111..06S

MEDIUM CHARCOAL,TRIM1#

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-13040

AE111

 1
58559A - PAD, FRONT FLOOR SIDE, RH
58559-13010

AE111

 1
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-09160B2

AE111..06S

TYPE A:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#

 3
58569C - PAD, FRONT FLOOR SIDE, LH
58569-13010

AE111

 1
58579B - PAD, REAR FLOOR
58579-13040

AE111..06S

RH

 1
58579-13050

AE111..06S

LH

 1
58579B - PAD, REAR FLOOR
58579-13040

AE111..06S

RH

 1
58579-13050

AE111..06S

LH

 1
64771C - COVER, SPARE WHEEL
58401-13050

AE111..06S

 1
Common parts
90159-50322
