AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

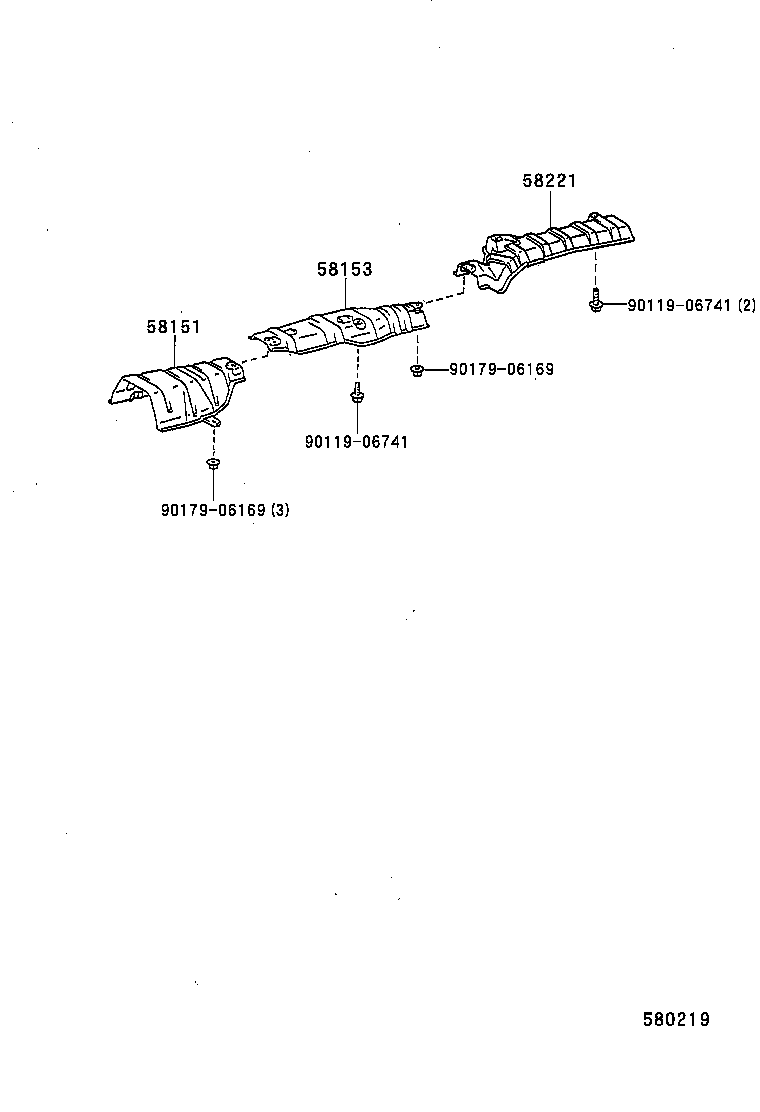

Click highlighted areas on diagram

diagram 58151 58153 58221 9011906741 9011906741 9017906169 9017906169
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-12200

AE111

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12150

AE111

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-12110

AE111

 1
Common parts
90119-06741
90179-06169
