AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

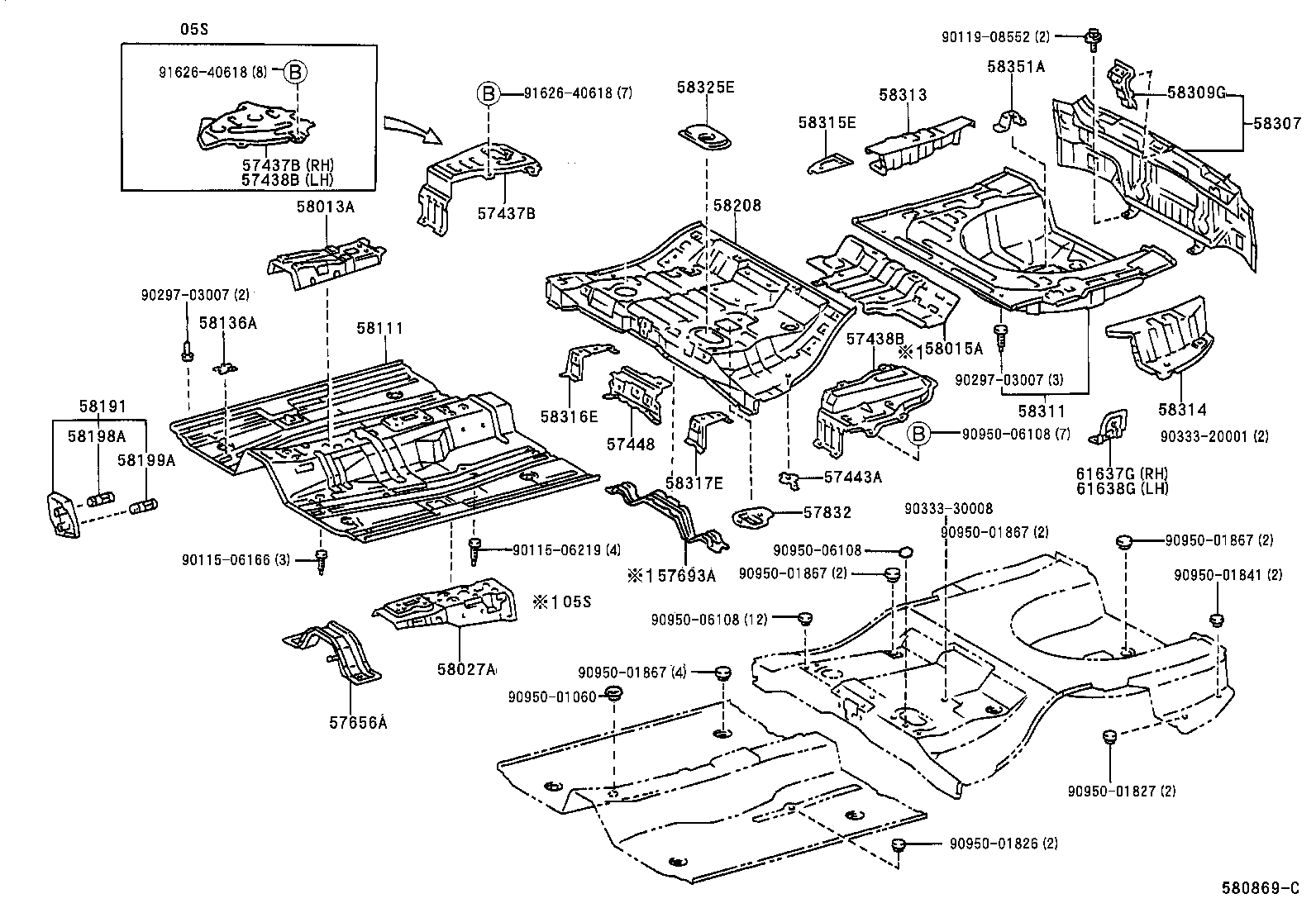

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57437B - PLATE, REAR STEP SIDE, RH | ||||
| 58303-13010 |
AE111..06S |
1 | ||
| 57437B - PLATE, REAR STEP SIDE, RH | ||||
| 58303-13010 |
AE111..06S |
1 | ||
| 57438B - PLATE, REAR STEP SIDE, LH | ||||
| 57438-13010 |
AE111..06S |
1 | ||
| 57438B - PLATE, REAR STEP SIDE, LH | ||||
| 57438-13010 |
AE111..06S |
1 | ||
| 57443A - SUPPORT, SIDE STEP, REAR RH | ||||
| 57443-13010 |
AE111..06S |
1 | ||
| 57448 - RETAINER, CENTER FLOOR CROSSMEMBER | ||||
| 57448-13010 |
AE111 |
1 | ||
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-12060 |
AE111 |
1 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-13010 |
AE111..06S |
1 | ||
| 58013A - PANEL SUB-ASSY, FRONT FLOOR, REAR UPPER | ||||
| 58013-12060 |
AE111 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12121 |
AE111 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12263 |
AE111 |
1 | ||
| 58111-12262 |
AE111 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12030 |
AE111 |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-13010 |
AE111 |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-13010 |
AE111 |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-13010 |
AE111 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-13140 |
AE111..06S |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-13130 |
AE111 |
1 | ||
| 58309G - RETAINER SUB-ASSY, BACK DOOR LOCK STRIKER | ||||
| 58309-13020 |
AE111 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-13170 |
AE111..06S |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-13140 |
AE111 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-13130 |
AE111 |
1 | ||
| 58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH | ||||
| 58315-12070 |
AE111 |
1 | ||
| 58316E - RETAINER, REAR SEAT SET | ||||
| 58316-13040 |
AE111 |
1 | ||
| 58317E - RETAINER, REAR SEAT, NO.2 | ||||
| 58317-13030 |
AE111 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-13010 |
AE111 |
1 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-12040 |
AE111 |
1 | ||
| 61637G - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61637-13010 |
AE111..06S |
1 | ||
| 61638G - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61638-13010 |
AE111..06S |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-08552 | ||||
| 90297-03007 | ||||
| 90333-20001 | ||||
| 90333-30008 | ||||
| 90950-01060 | ||||
| 90950-01826 | ||||
| 90950-01827 | ||||
| 90950-01841 | ||||
| 90950-01867 | ||||
| 90950-06108 | ||||
| 91626-40618 | ||||
