AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

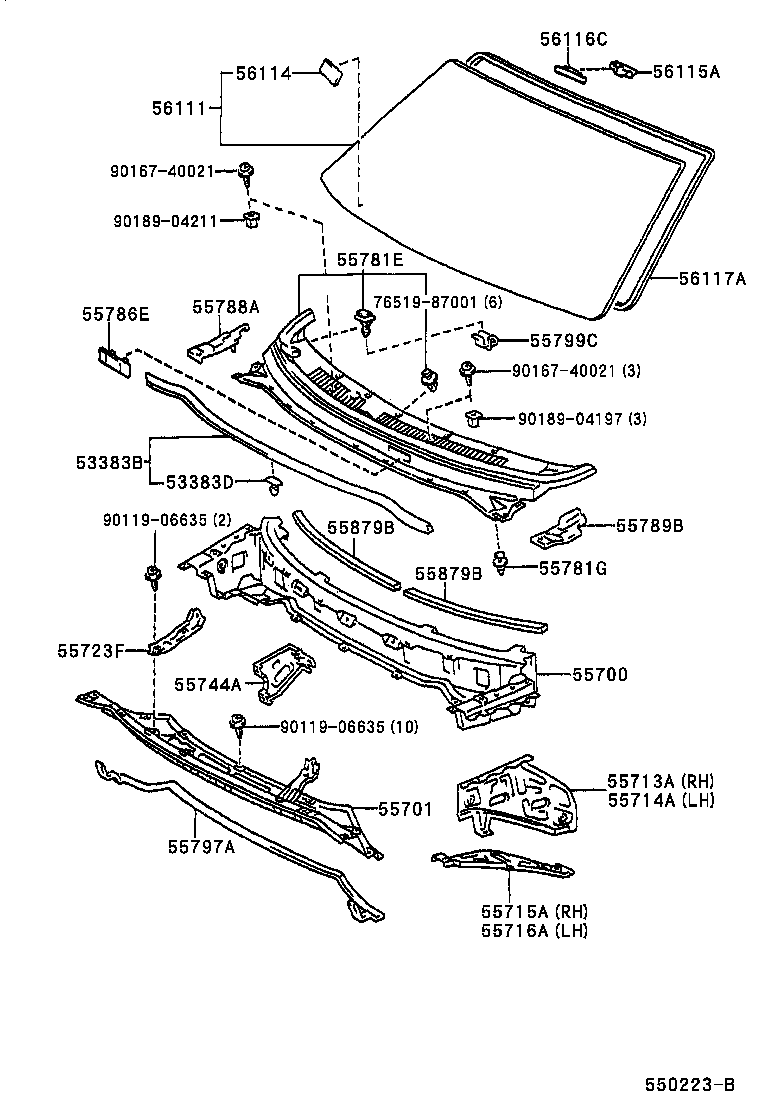

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-13010 |
AE111 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08108 |
AE111 |
7 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-13010 |
AE111 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55701-13010 |
AE111 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-13010 |
AE111 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-13010 |
AE111 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-13010 |
AE111 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-13010 |
AE111 |
1 | ||
| 55723F - BRACE, COWL TOP TO COWL, INNER NO.3 | ||||
| 55723-13010 |
AE111 |
1 | ||
| 55744A - REINFORCEMENT, PEDAL BRACKET MOUNTING | ||||
| 55744-13010 |
AE111 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-13010 |
AE111 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-06133C0 |
AE111 BLACK,TRIM10 |
2 | ||
| 90467-06133B3 |
AE111 DK.CHARCOAL,TRIM1# |
2 | ||
| 55786E - PLATE, COWL TOP VENTILATOR LOUVER | ||||
| 55786-13010 |
AE111 |
1 | ||
| 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55788-13010 |
AE111 |
1 | ||
| 55789B - PROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2 | ||||
| 55789-13010 |
AE111 |
1 | ||
| 55797A - SEAL, COWL WATER EXTRACT | ||||
| 55797-13010 |
AE111 |
1 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 55799-13010 |
AE111 |
3 | ||
| 55879B - SEAL, COWL VENT | ||||
| 55879-12090 |
AE111 |
2 | ||
| 55879B - SEAL, COWL VENT | ||||
| 55879-12090 |
AE111 |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-13010 |
AE111 *TL,T=4.76,GREEN |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-13010 |
AE111 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-13010 |
AE111 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
AE111 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 76519-87001 | ||||
| 90119-06635 | ||||
| 90167-40021 | ||||
| 90189-04197 | ||||
| 90189-04211 | ||||
