AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9805- )

Click highlighted areas on diagram

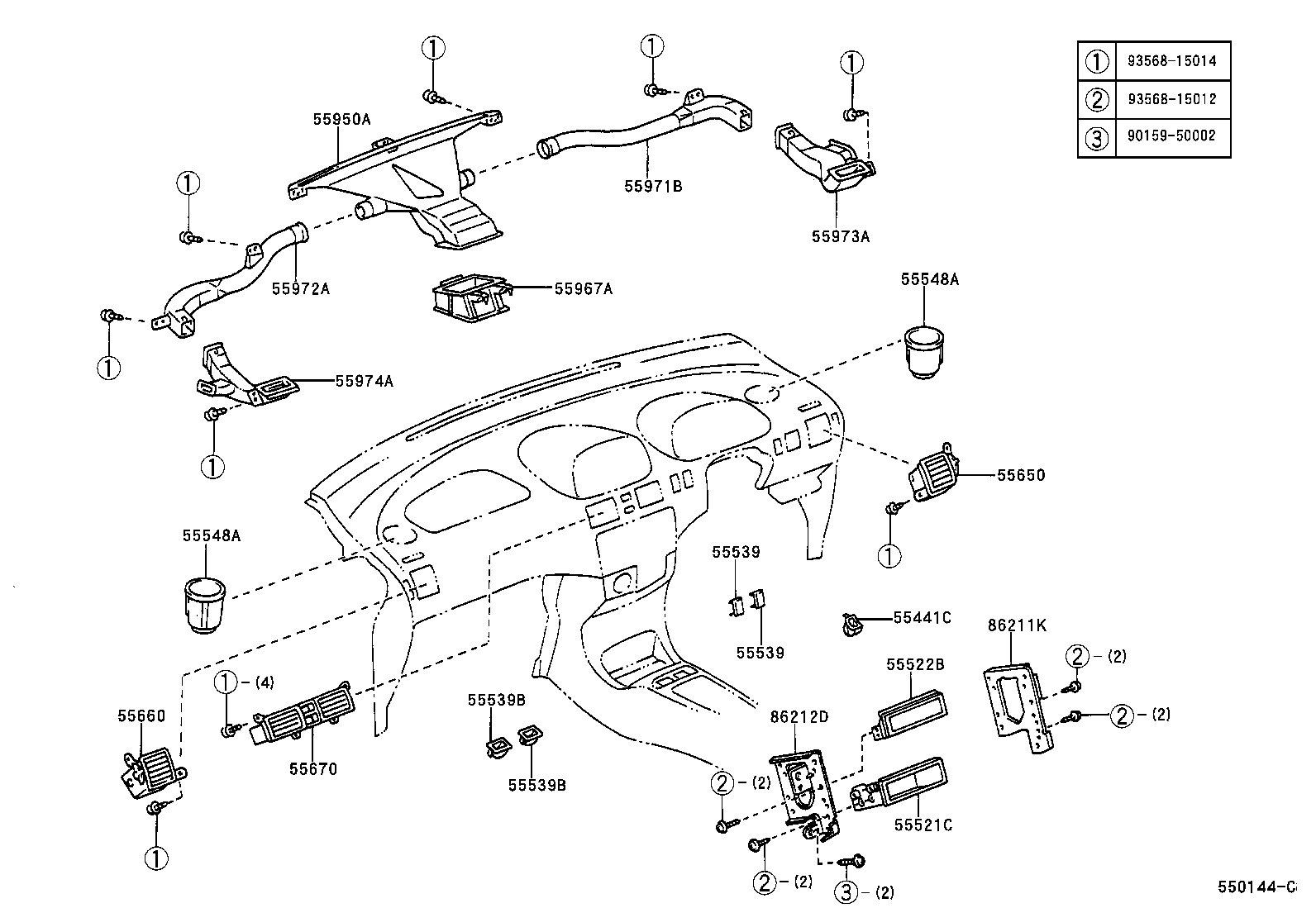

diagram 55441C 55521C 55522B 55539 55539 55539B 55539B 55548A 55548A 55650 55660 55670 55950A 55967A 55971B 55972A 55973A 55974A 86211K 86212D 9015950002 9356815012 9356815014
Part # Description Qty Price
55441C - BOX, INSTRUMENT PANEL COIN
55441-12130B1

AE111

DK.CHARCOAL,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-16030

AE111

 1
55522B - COVER, RADIO TUNER OPENING
55522-32010

AE111

 1
55539 - COVER, SPARE SWITCH HOLE
55539-32010B3

AE111

DK.CHARCOAL,TRIM1#

 2
55539 - COVER, SPARE SWITCH HOLE
55539-32010B3

AE111

DK.CHARCOAL,TRIM1#

 2
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-20020B4

AE111

MD.CHARCOAL,TRIM1#

 2
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-20020B4

AE111

MD.CHARCOAL,TRIM1#

 2
55548A - COVER, INSTRUMENT PANEL HOLE
55548-13040B0

AE111

DK.CHARCOAL,TRIM1#,RH

 1
55548-13030B0

AE111

DK.CHARCOAL,TRIM1#,LH

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-13040B0

AE111

DK.CHARCOAL,TRIM1#,RH

 1
55548-13030B0

AE111

DK.CHARCOAL,TRIM1#,LH

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55950A - NOZZLE ASSY, DEFROSTER
55950-13010

AE111

 1
55967A - NOZZLE, DEFROSTER, LOWER
55967-13010

AE111

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-13010

AE111

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-13010

AE111

 1
55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-13010

AE111

 1
55974A - DUCT, SIDE DEFROSTER NOZZLE, NO.4
55974-13010

AE111

 1
86211K - BRACKET, STEREO OPENING COVER, RH
86211-12290

AE111

 1
86212D - BRACKET, STEREO OPENING COVER, LH
86212-12270

AE111

 1
Common parts
90159-50002
93568-15012
93568-15014

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

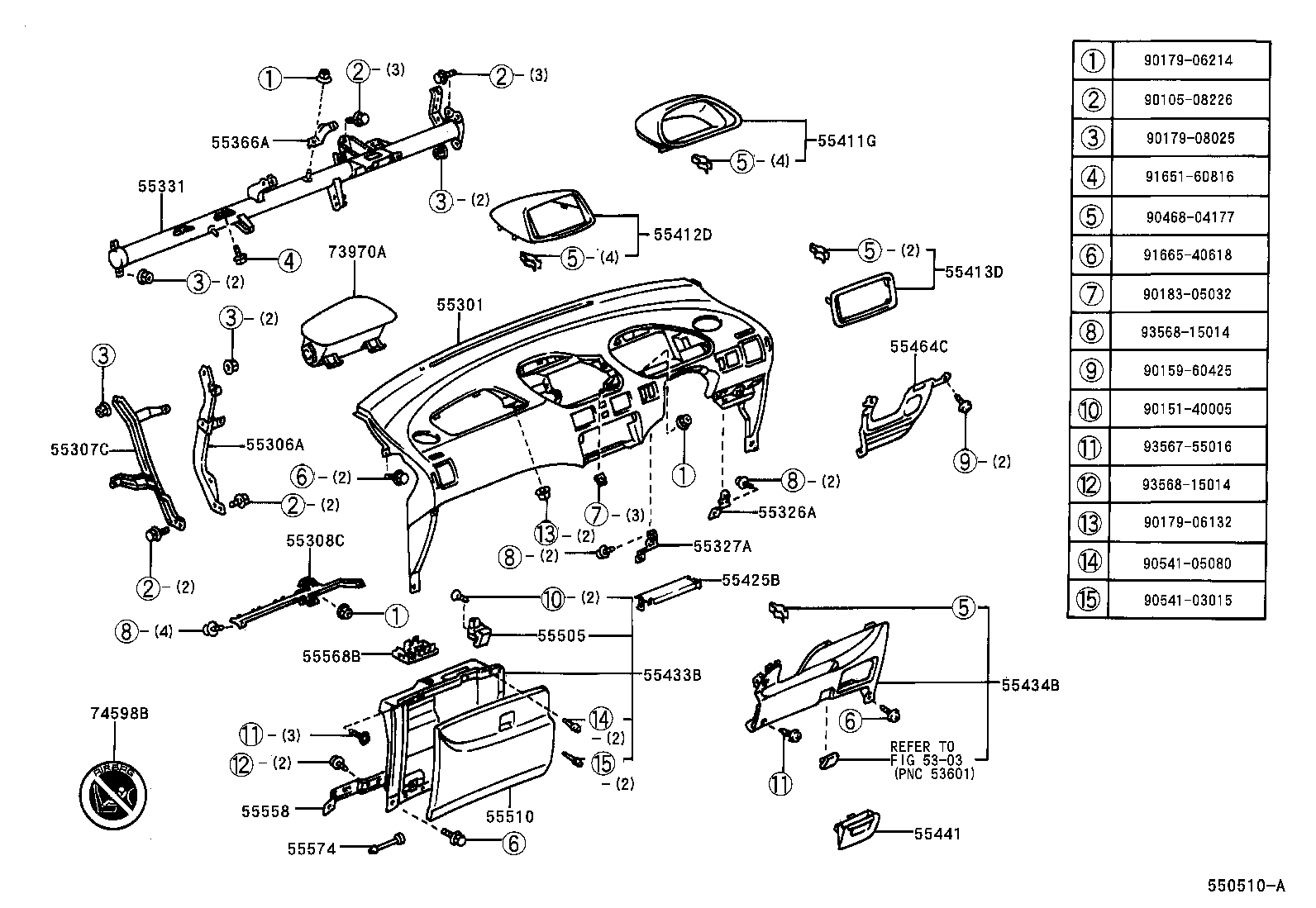

diagram 5303 55301 55306A 55307C 55308C 55326A 55327A 55331 55366A 55411G 55412D 55413D 55425B 55433B 55434B 55441 55464C 55505 55510 55558 55568B 55574 73970A 74598B 9010508226 9015140005 9015960425 9017906132 9017906214 9017908025 9018305032 9046804177 9054103015 9054105080 9165160816 9166540618 9356755016 9356815014 9356815014
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-13010

AE111

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-13010

AE111

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-13010

AE111

 1
55326A - STAY, INSTRUMENT PANEL, NO.1
55326-13010

AE111

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-13010

AE111

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-13011

AE111

 1
55366A - BRACKET, RADIO MOUNTING, NO.1
55366-13010

AE111

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
55413-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55425B - REINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL
55425-13010

AE111

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-13011B0

AE111

MD.CHARCOAL,TRIM1#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55045-13011B0

AE111

MD.CHARCOAL,TRIM1#

 1
55441 - BOX, INSTRUMENT PANEL
55441-13010B1

AE111

MD.CHARCOAL,TRIM1#

 1
55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH
55464-13010

AE111

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55560-12080B3

AE111

MD.CHARCOAL,TRIM1#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-13010B0

AE111

MD.CHARCOAL,TRIM1#

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-13010

AE111

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-24020

AE111

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AE111

 2
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-13011B0

AE111

DK.CHARCOAL,TRIM1#

 1
74598B - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

AE111

 1
Common parts
90105-08226
90151-40005
90159-60425
90179-06132
90179-06214
90179-08025
90183-05032
90468-04177
90541-03015
90541-05080
91651-60816
91665-40618
93567-55016
93568-15014
Linked diagrams
5303
