AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

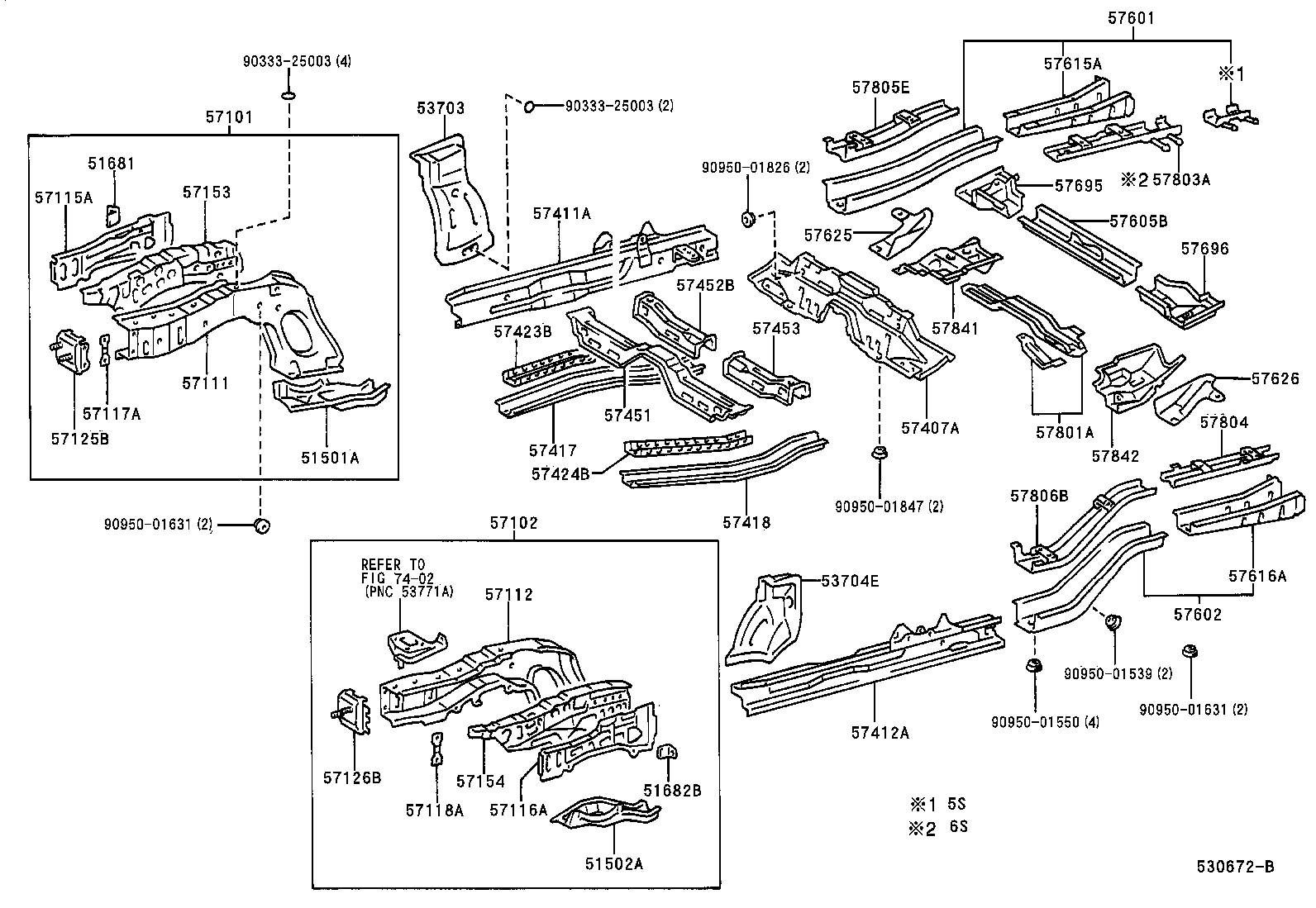

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51501A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51501-13010 |
AE111 |
1 | ||
| 51502A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51502-13010 |
AE111 |
1 | ||
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-12050 |
AE111 |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-12060 |
AE111 |
1 | ||
| 53703 - APRON SUB-ASSY, FRONT FENDER, REAR RH | ||||
| 53703-13010 |
AE111 |
1 | ||
| 53704E - APRON SUB-ASSY, FRONT FENDER, REAR LH | ||||
| 53704-13010 |
AE111 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-13901 |
AE111 |
1 | ||
| 57101-13900 |
AE111 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-13900 |
AE111 |
1 | ||
| 57102-13901 |
AE111 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12201 |
AE111 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12142 |
AE111 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12060 |
AE111 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12060 |
AE111 |
1 | ||
| 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING | ||||
| 57117-12110 |
AE111 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57117-12110 |
AE111 |
1 | ||
| 57125B - REINFORCEMENT, FRONT SIDE MEMBER, RH | ||||
| 57125-13010 |
AE111 |
1 | ||
| 57125-12090 |
AE111 |
1 | ||
| 57126B - REINFORCEMENT, FRONT SIDE MEMBER, LH | ||||
| 57126-13010 |
AE111 |
1 | ||
| 57126-12050 |
AE111 |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57016-13010 |
AE111 |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-13010 |
AE111 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-13080 |
AE111 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-13030 |
AE111 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-13030 |
AE111 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-13010 |
AE111 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-13010 |
AE111 |
1 | ||
| 57423B - REINFORCEMENT, FRONT FLOOR UNDER, INNER RH | ||||
| 57423-13010 |
AE111 |
1 | ||
| 57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH | ||||
| 57424-13010 |
AE111 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12153 |
AE111 |
1 | ||
| 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-13020 |
AE111 |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-13010 |
AE111 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-13250 |
AE111..06S |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-13371 |
AE111 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12150 |
AE111..06S |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-13900 |
AE111 |
1 | ||
| 57615-13900 |
AE111..06S |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-13902 |
AE111 |
1 | ||
| 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH | ||||
| 57626-13040 |
AE111 |
1 | ||
| 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH | ||||
| 57627-13030 |
AE111 |
1 | ||
| 57695 - EXTENSION, REAR FLOOR CROSS REAR SIDE, RH | ||||
| 57703-12080 |
AE111 |
1 | ||
| 57696 - EXTENSION, REAR FLOOR CROSS REAR SIDE, LH | ||||
| 57704-12100 |
AE111 |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57802-13020 |
AE111..06S |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-13010 |
AE111..06S |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-13020 |
AE111..06S |
1 | ||
| 57805E - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-13020 |
AE111..06S |
1 | ||
| 57806B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-13020 |
AE111..06S |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-13010 |
AE111 |
1 | ||
| 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57842-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90333-25003 | ||||
| 90950-01539 | ||||
| 90950-01550 | ||||
| 90950-01631 | ||||
| 90950-01826 | ||||
| 90950-01847 | ||||
| Linked diagrams | ||||
| 7402 | ||||
