AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

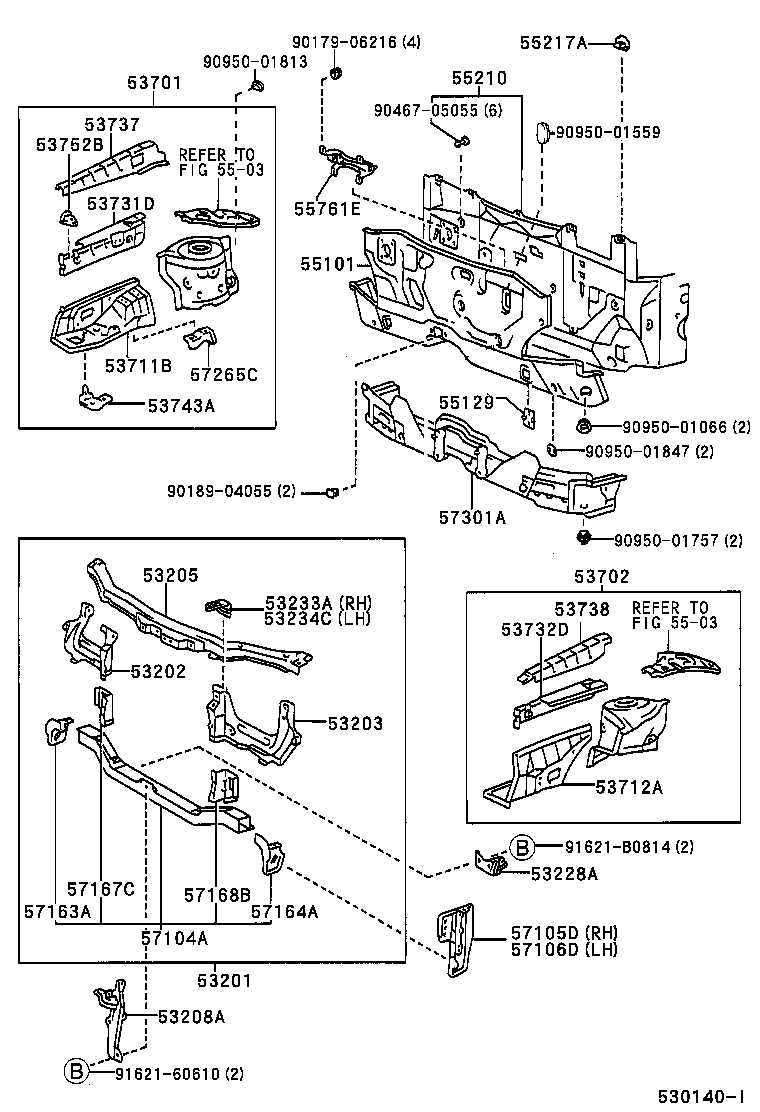

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-13010 |
AE111 |
1 | ||
| 53201-13020 |
AE111 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-13010 |
AE111 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-13010 |
AE111 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-13010 |
AE111 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-13040 |
AE111 |
1 | ||
| 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 | ||||
| 53228-12130 |
AE111 |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-13010 |
AE111 |
1 | ||
| 53234C - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-13010 |
AE111 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-13020 |
AE111 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-13020 |
AE111 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-12902 |
AE111 |
1 | ||
| 53712A - APRON, FRONT FENDER, W/SUPPORT, FRONT LH | ||||
| 53712-12182 |
AE111 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-13010 |
AE111 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-13010 |
AE111 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-13010 |
AE111 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-13010 |
AE111 |
1 | ||
| 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-12040 |
AE111 |
1 | ||
| 53752B - BRACKET, WASHER TANK MOUNTING | ||||
| 53752-13010 |
AE111 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-13010 |
AE111 |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-12030 |
AE111 |
2 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-13010 |
AE111 |
1 | ||
| 55217A - RETAINER, DASH PANEL SILENCER | ||||
| 55217-13010 |
AE111 |
5 | ||
| 55761E - BRACKET, HEATER MOUNTING | ||||
| 55761-13010 |
AE111 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12030 |
AE111 |
1 | ||
| 57104-12080 |
AE111 |
1 | ||
| 57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-13010 |
AE111 |
1 | ||
| 57105-12130 |
AE111 |
1 | ||
| 57105-12120 |
AE111 |
1 | ||
| 57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-12110 |
AE111 |
1 | ||
| 57106-13010 |
AE111 |
1 | ||
| 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-12130 |
AE111 |
1 | ||
| 57163-12120 |
AE111 |
1 | ||
| 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-12080 |
AE111 |
1 | ||
| 57164-12070 |
AE111 |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-12100 |
AE111 |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-12100 |
AE111 |
1 | ||
| 57265C - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-12050 |
AE111 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-13010 |
AE111 |
1 | ||
| Common parts | ||||
| 90179-06216 | ||||
| 90189-04055 | ||||
| 90467-05055 | ||||
| 90950-01066 | ||||
| 90950-01559 | ||||
| 90950-01757 | ||||
| 90950-01813 | ||||
| 90950-01847 | ||||
| 91621-60610 | ||||
| 91621-B0814 | ||||
| Linked diagrams | ||||
| 5503 | ||||
