AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

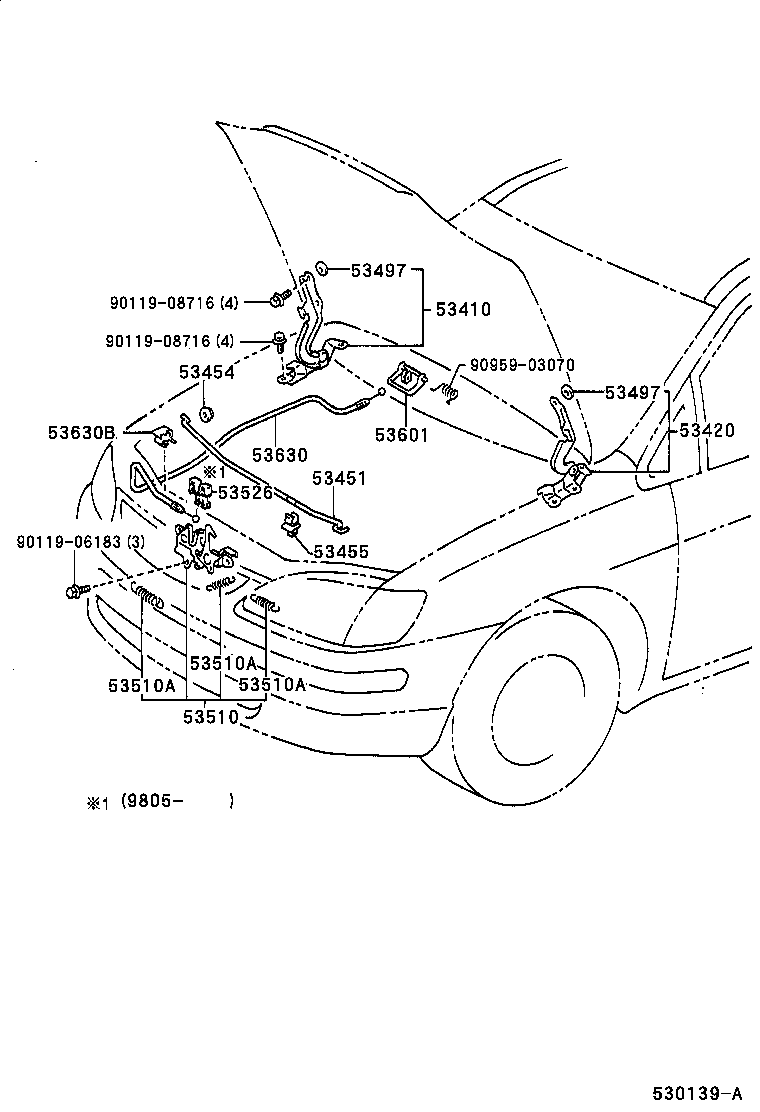

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-13010 |
AE111 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-13010 |
AE111 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-13020 |
AE111 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-12010 |
AE111 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-12100 |
AE111 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50010 |
AE111 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50010 |
AE111 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-13030 |
AE111 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09057 |
AE111 WD=0.9,CW=23 |
1 | ||
| 90506-14064 |
AE111 WD=1.4,CW=7.25 |
1 | ||
| 90506-20065 |
AE111 WD=2.0,CW=16.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09057 |
AE111 WD=0.9,CW=23 |
1 | ||
| 90506-14064 |
AE111 WD=1.4,CW=7.25 |
1 | ||
| 90506-20065 |
AE111 WD=2.0,CW=16.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09057 |
AE111 WD=0.9,CW=23 |
1 | ||
| 90506-14064 |
AE111 WD=1.4,CW=7.25 |
1 | ||
| 90506-20065 |
AE111 WD=2.0,CW=16.0 |
1 | ||
| 53526 - PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2 | ||||
| 53526-12040 |
AE111 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53611-12040C0 |
AE111 BLACK,TRIM1# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-13010 |
AE111 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90467-09043 |
AE111 |
2 | ||
| Common parts | ||||
| 90119-06183 | ||||
| 90119-08716 | ||||
| 90959-03070 | ||||
