AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

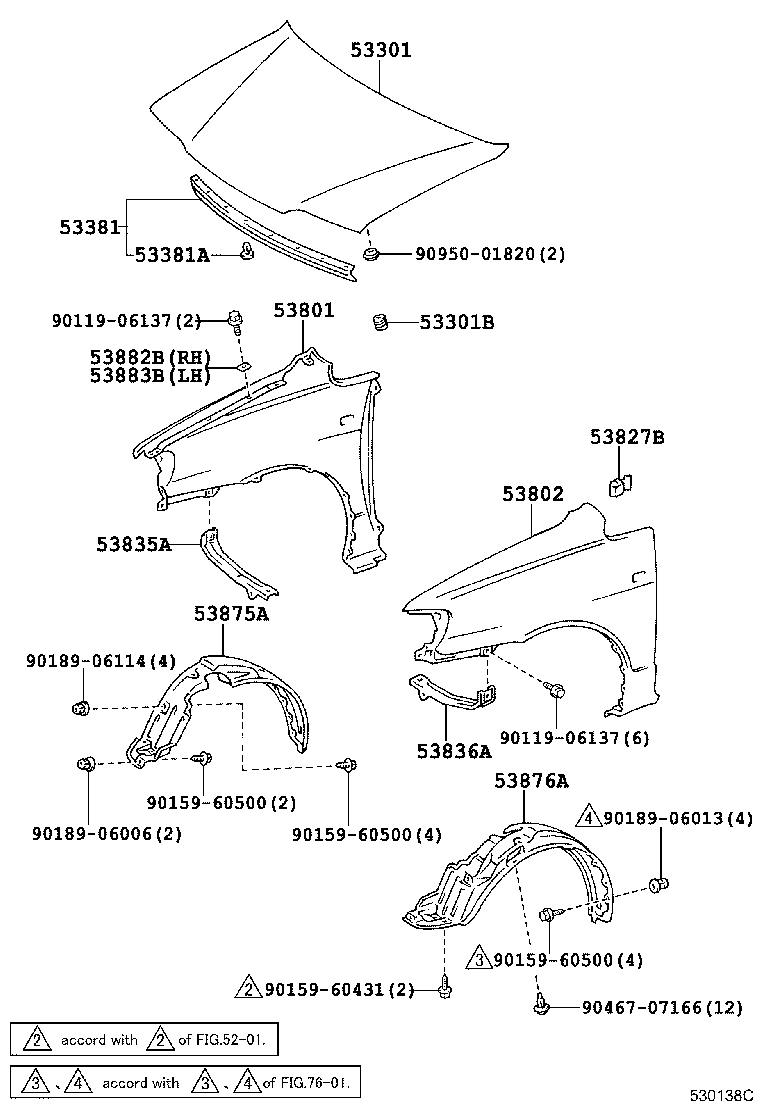

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-13040 |
AE111 |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15022 |
AE111 |
2 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-13010 |
AE111 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
AE111 |
8 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-13902 |
AE111 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-13902 |
AE111 |
1 | ||
| 53827B - PROTECTOR, FRONT FENDER SIDE PANEL | ||||
| 53827-13010 |
AE111 |
2 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-13020 |
AE111 |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53836-13020 |
AE111 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-13010 |
AE111 |
1 | ||
| 53875-13030 |
AE111 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-13030 |
AE111 |
1 | ||
| 53876-13010 |
AE111 |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
AE111 |
4 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
AE111 |
4 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90159-60431 | ||||
| 90159-60500 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06114 | ||||
| 90467-07166 | ||||
| 90950-01820 | ||||
