AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

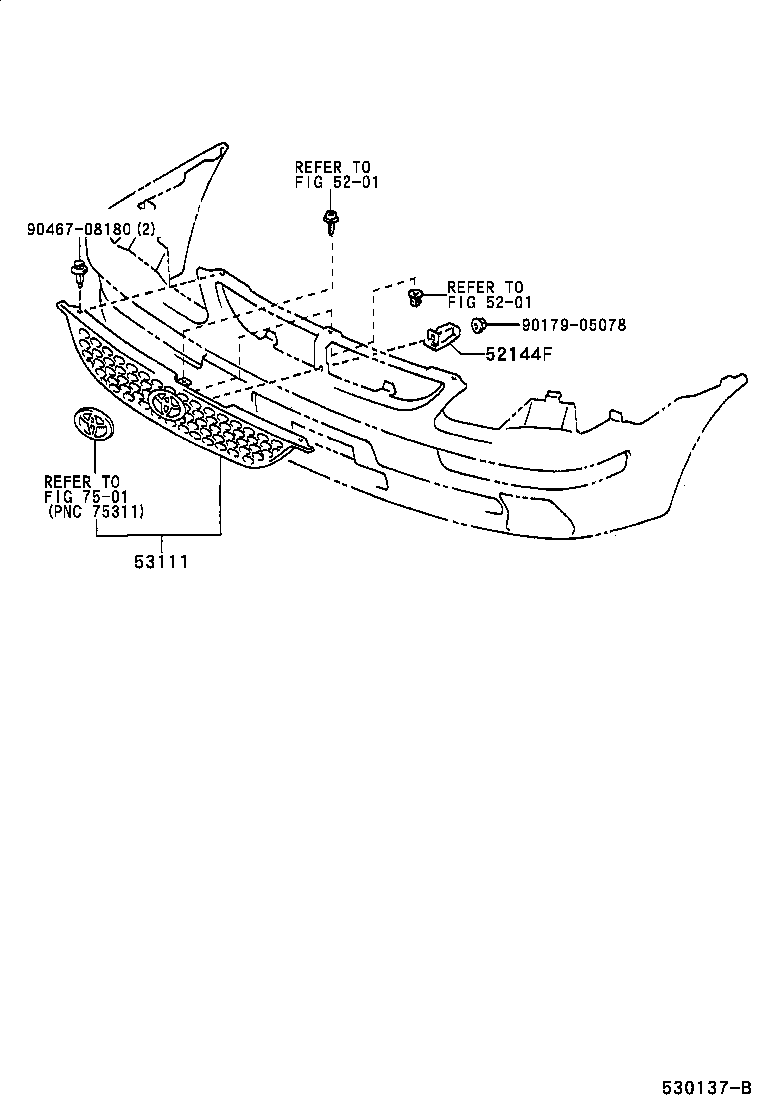

(9805-9904)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52144F - STAY, FRONT BUMPER, CENTER | ||||
| 52144-13020 |
AE111 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-13150 |
AE111 |
1 | ||
| 53101-13160 |
AE111 W(PLATED RADIATOR GRILLE) |
1 | ||
| 53101-13100 |
AE111 |
1 | ||
| Common parts | ||||
| 90179-05078 | ||||
| 90467-08180 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||

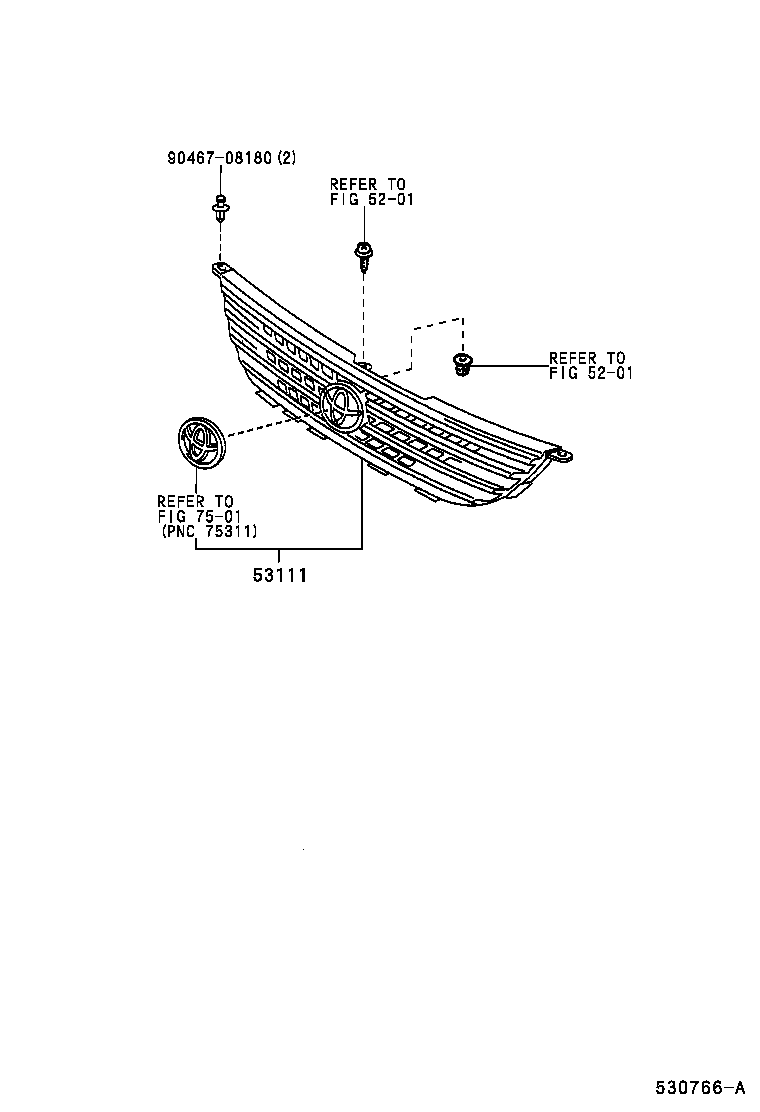

(9904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-13150 |
AE111 |
1 | ||
| 53101-13160 |
AE111 W(PLATED RADIATOR GRILLE) |
1 | ||
| 53101-13100 |
AE111 |
1 | ||
| Common parts | ||||
| 90467-08180 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||
