AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

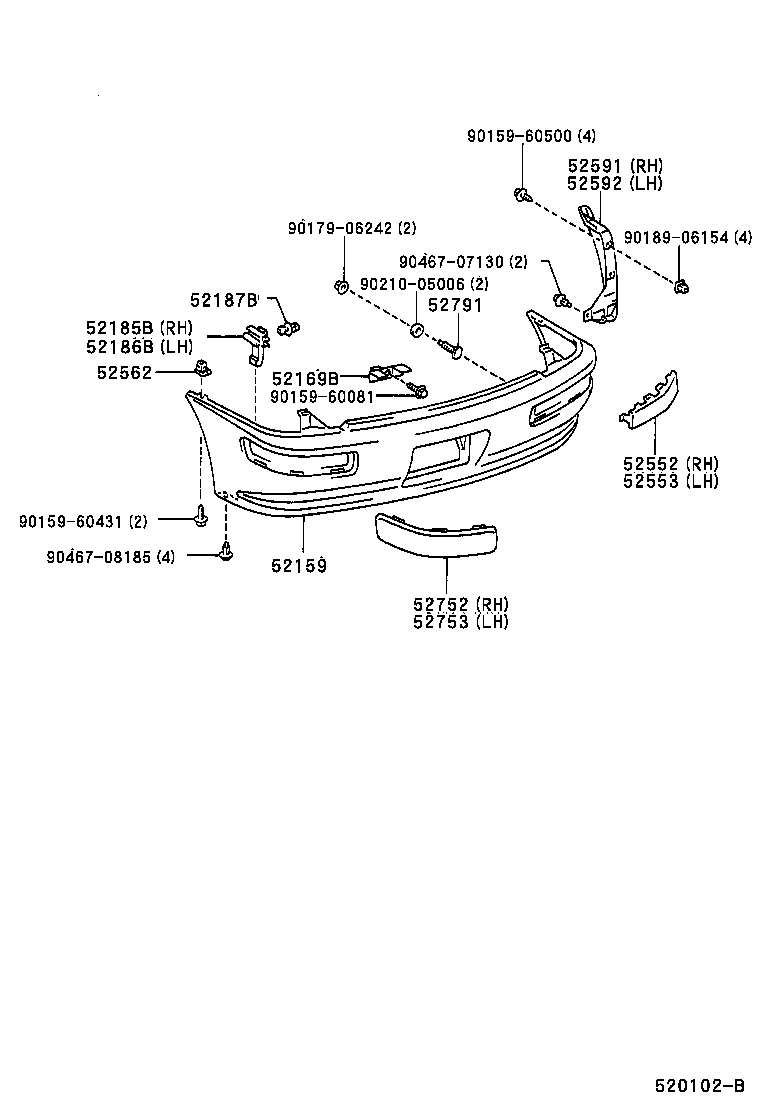

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-13902 |
AE111 |
1 | ||
| 52159-13903 |
AE111 |
1 | ||
| 52169B - BRACKET, REAR BUMPER, CENTER | ||||
| 52169-13020 |
AE111 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-13050 |
AE111 |
1 | ||
| 52185-13040 |
AE111 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-13050 |
AE111 |
1 | ||
| 52185-13040 |
AE111 |
1 | ||
| 52187B - GUIDE, REAR BUMPER LOCATION | ||||
| 52187-16070 |
AE111 |
2 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-13030 |
AE111 |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-13030 |
AE111 |
1 | ||
| 52562 - RETAINER, REAR BUMPER, UPPER SIDE | ||||
| 52562-12020 |
AE111 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-13020 |
AE111 |
1 | ||
| 52591-13030 |
AE111 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-13030 |
AE111 |
1 | ||
| 52592-13020 |
AE111 |
1 | ||
| 52752 - MOULDING, REAR BUMPER SIDE, RH | ||||
| 52752-13010 |
AE111 |
1 | ||
| 52753 - MOULDING, REAR BUMPER SIDE, LH | ||||
| 52753-13010 |
AE111 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12010 |
AE111 |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60431 | ||||
| 90159-60500 | ||||
| 90179-06242 | ||||
| 90189-06154 | ||||
| 90210-05006 | ||||
| 90467-07130 | ||||
| 90467-08185 | ||||
