Toyota Spacio AE111 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
SPACIO
AE111R-FPPEK (1998)
5201 - FRONT BUMPER & BUMPER STAY

AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001

Engine 4AFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

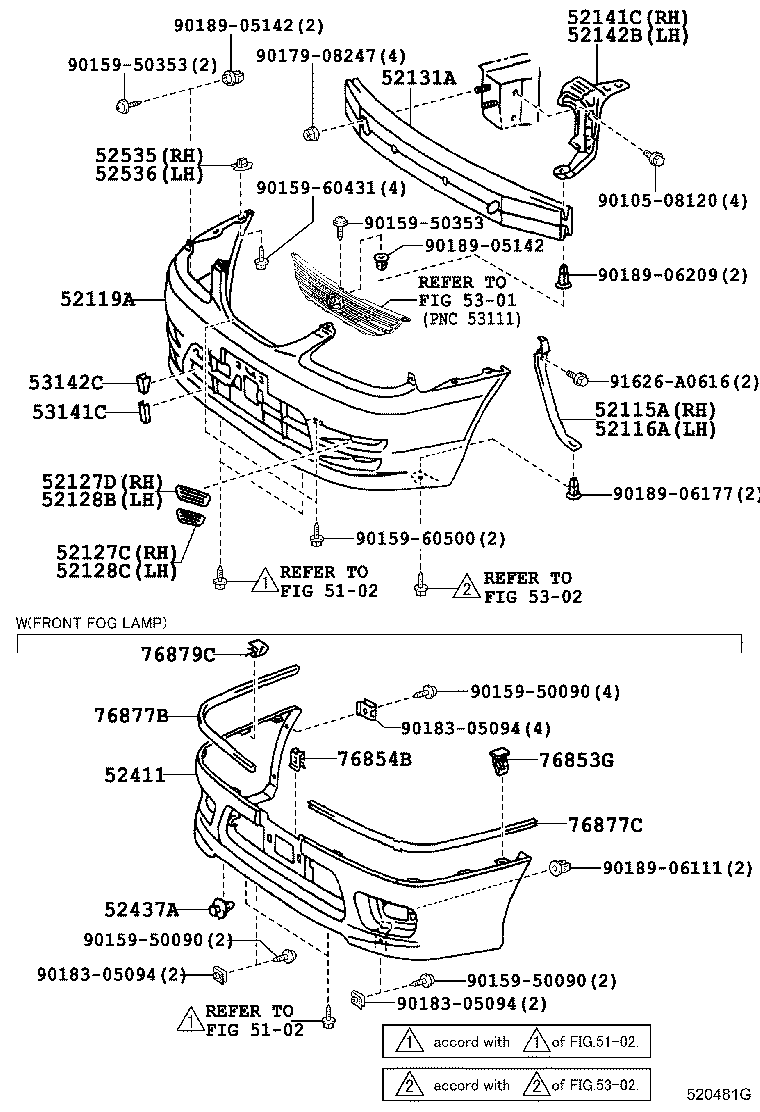

(9904- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-13030	AE111	05/1998 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-13020	AE111	05/1998 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-13900	AE111	05/1998 - 04/1999	1
52119-13901	AE111 W(FOG LAMP)	05/1998 - 04/1999	1
52119-13902	AE111	04/1999 - 12/2999	1
52119-13903	AE111 W(FRONT FOG LAMP)	04/1999 - 12/2999	1
52127C - COVER, FRONT BUMPER HOLE
52127-13050	AE111	04/1999 - 12/2999	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13040	AE111	04/1999 - 12/2999	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-13040	AE111	04/1999 - 12/2999	1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-13050	AE111	04/1999 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-13010	AE111	05/1998 - 12/2999	1
52141C - ARM, FRONT BUMPER, RH
52141-13020	AE111	05/1998 - 04/1999	1
52130-13010	AE111	04/1999 - 12/2999	1
52142B - ARM, FRONT BUMPER, LH
52140-13010	AE111	04/1999 - 12/2999	1
52142-13020	AE111	05/1998 - 04/1999	1
52411 - GUARD, FRONT BUMPER
52411-13090A0	AE111 SUPER WHITE 2,040	04/1999 - 12/2999	1
52401-13900	AE111	05/1998 - 04/1999	1
52411-13090D0	AE111 SUPER RED 2,3E5	04/1999 - 12/2999	1
52411-13090G1	AE111 GREEN M.M.,6R9	04/1999 - 12/2999	1
52411-13090C0	AE111 BLACK ME.,205	04/1999 - 12/2999	1
52411-13090G0	AE111 YELLOW GREEN ME.OP.,6Q9	04/1999 - 12/2999	1
52411-13090J0	AE111 BLUE MC.,8M6	04/1999 - 12/2999	1
52411-13090B0	AE111 SILVER ME.,1C0	04/1999 - 12/2999	1
52437A - RETAINER, FRONT BUMPER GUARD COVER
67771-12070	AE111	04/1999 - 12/2999	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-13020	AE111	05/1998 - 12/2999	2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-13020	AE111	05/1998 - 12/2999	2
53141C - GARNISH, RADIATOR GRILLE
53141-13010	AE111	05/1998 - 04/1999	1
53141-13030	AE111 W(FRONT FOG LAMP)	04/1999 - 12/2999	4
53141-13030	AE111	04/1999 - 12/2999	1
53142C - GARNISH, RADIATOR GRILLE, NO.2
53142-13020	AE111	04/1999 - 12/2999	1
53142-13010	AE111	05/1998 - 04/1999	1
76853G - RETAINER, FRONT BUMPER GUARD, NO.1
76853-10010	AE111	04/1999 - 12/2999	4
76854B - RETAINER, FRONT SPOILER,NO.2
76854-44010	AE111	04/1999 - 12/2999	6
76877B - FRONT SPOILER BUMPER GUARD
76877-13020C0	AE111 BLACK,205 ,3E5 ,6R9 ,8M6	04/1999 - 12/2999	1
76877-13020B0	AE111 GRAY,040 ,1C0 ,6Q9	04/1999 - 12/2999	1
76877C - FRONT SPOILER BUMPER GUARD
76878-13010B0	AE111 GRAY,040 ,1C0 ,6Q9	04/1999 - 12/2999	1
76878-13010C0	AE111 BLACK,205 ,3E5 ,6R9 ,8M6	04/1999 - 12/2999	1
76879C - CLIP, FRONT BUMPER GUARD, NO.1
76879-44010	AE111	04/1999 - 12/2999	4
Common parts
90105-08120
90159-50090
90159-50353
90159-60431
90159-60500
90179-08247
90183-05094
90189-05142
90189-06111
90189-06177
90189-06209
91626-A0616
Linked diagrams
5102
5301
5302

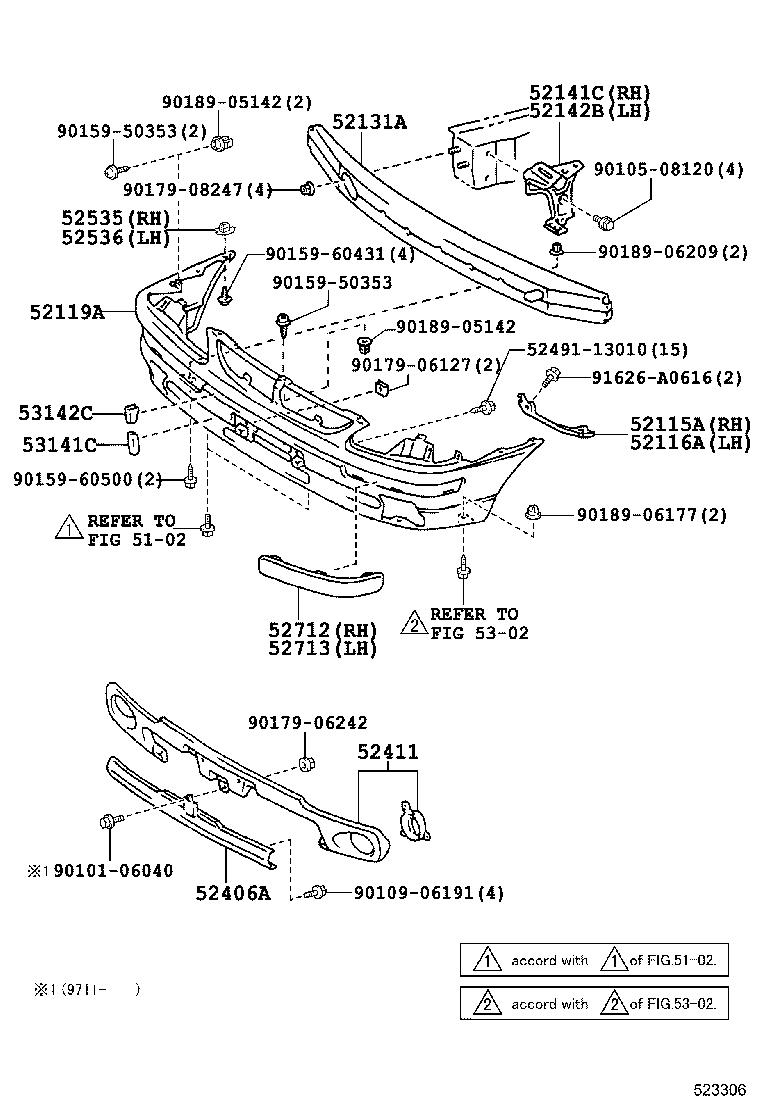

(9805-9904)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-13030	AE111	05/1998 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-13020	AE111	05/1998 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-13900	AE111	05/1998 - 04/1999	1
52119-13901	AE111 W(FOG LAMP)	05/1998 - 04/1999	1
52119-13902	AE111	04/1999 - 12/2999	1
52119-13903	AE111 W(FRONT FOG LAMP)	04/1999 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-13010	AE111	05/1998 - 12/2999	1
52141C - ARM, FRONT BUMPER, RH
52141-13020	AE111	05/1998 - 04/1999	1
52130-13010	AE111	04/1999 - 12/2999	1
52142B - ARM, FRONT BUMPER, LH
52140-13010	AE111	04/1999 - 12/2999	1
52142-13020	AE111	05/1998 - 04/1999	1
52406A - GARNISH SUB-ASSY, FRONT BUMPER GUARD
52406-13030	AE111	05/1998 - 04/1999	1
52411 - GUARD, FRONT BUMPER
52411-13090A0	AE111 SUPER WHITE 2,040	04/1999 - 12/2999	1
52401-13900	AE111	05/1998 - 04/1999	1
52411-13090D0	AE111 SUPER RED 2,3E5	04/1999 - 12/2999	1
52411-13090G1	AE111 GREEN M.M.,6R9	04/1999 - 12/2999	1
52411-13090C0	AE111 BLACK ME.,205	04/1999 - 12/2999	1
52411-13090G0	AE111 YELLOW GREEN ME.OP.,6Q9	04/1999 - 12/2999	1
52411-13090J0	AE111 BLUE MC.,8M6	04/1999 - 12/2999	1
52411-13090B0	AE111 SILVER ME.,1C0	04/1999 - 12/2999	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-13020	AE111	05/1998 - 12/2999	2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-13020	AE111	05/1998 - 12/2999	2
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-13020	AE111	05/1998 - 04/1999	1
52713 - PLUG, FRONT BUMPER MOULDING
52713-13020	AE111	05/1998 - 04/1999	1
53141C - GARNISH, RADIATOR GRILLE
53141-13010	AE111	05/1998 - 04/1999	1
53141-13030	AE111 W(FRONT FOG LAMP)	04/1999 - 12/2999	4
53141-13030	AE111	04/1999 - 12/2999	1
53142C - GARNISH, RADIATOR GRILLE, NO.2
53142-13020	AE111	04/1999 - 12/2999	1
53142-13010	AE111	05/1998 - 04/1999	1
Common parts
52491-13010
90101-06040
90105-08120
90109-06191
90159-50353
90159-60431
90159-60500
90179-06127
90179-06242
90179-08247
90189-05142
90189-06177
90189-06209
91626-A0616
Linked diagrams
5102
5302
