AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

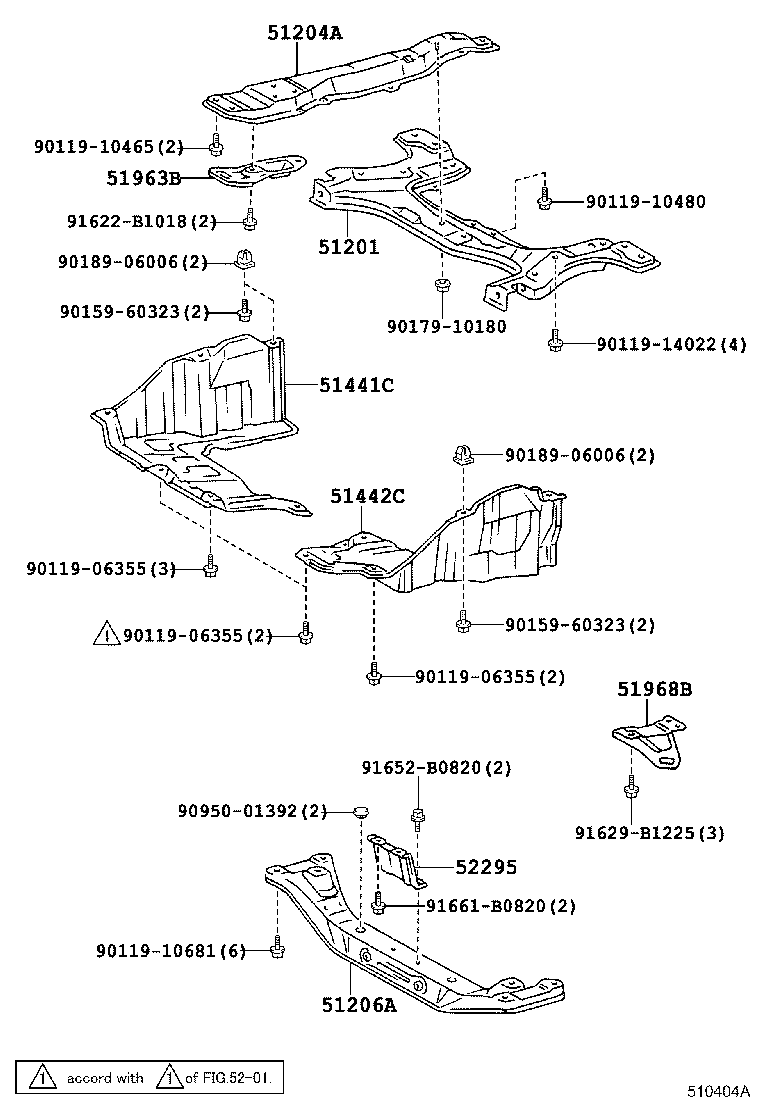

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51441C 51442C 51963B 51968B 52295 9011906355 9011906355 9011906355 9011910465 9011910480 9011910681 9011914022 9015960323 9015960323 9017910180 9018906006 9018906006 9095001392 91622B1018 91629B1225 91652B0820 91661B0820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12380

AE111

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12081

AE111

 1
51204-12082

AE111

 1
51204-12080

AE111

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12040

AE111

 1
51441C - COVER, ENGINE UNDER, RH
51441-12150

AE111

 1
51442C - COVER, ENGINE UNDER, LH
51442-12110

AE111

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-12210

AE111

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-13020

AE111

 1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-12020

AE111

 1
Common parts
90119-06355
90119-10465
90119-10480
90119-10681
90119-14022
90159-60323
90179-10180
90189-06006
90950-01392
91622-B1018
91629-B1225
91652-B0820
91661-B0820
