AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

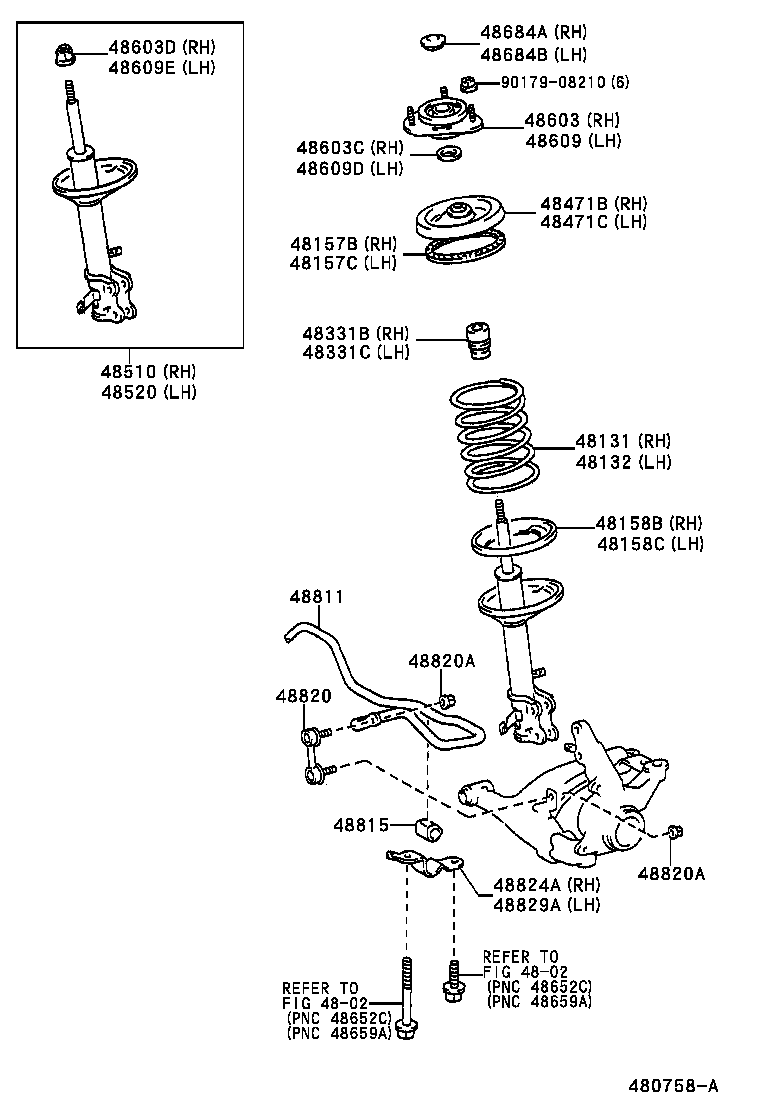

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1L590 |
AE111 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1L590 |
AE111 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-12070 |
AE111 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-12070 |
AE111 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-12030 |
AE111 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-12030 |
AE111 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48304-44020 |
AE111 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48304-44020 |
AE111 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-12090 |
AE111 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-12090 |
AE111 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-87690 |
AE111 |
1 | ||
| 48510-87700 |
AE111 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-49255 |
AE111 |
1 | ||
| 48520-49256 |
AE111 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-12330 |
AE111 |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
AE111 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
AE111 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12330 |
AE111 |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
AE111 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
AE111 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-12070 |
AE111 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-12070 |
AE111 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-13040 |
AE111 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-13030 |
AE111 |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-33010 |
AE111 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AE111 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AE111 |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-12130 |
AE111 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-12060 |
AE111 |
1 | ||
| Common parts | ||||
| 90179-08210 | ||||
| Linked diagrams | ||||
| 4802 | ||||
