AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

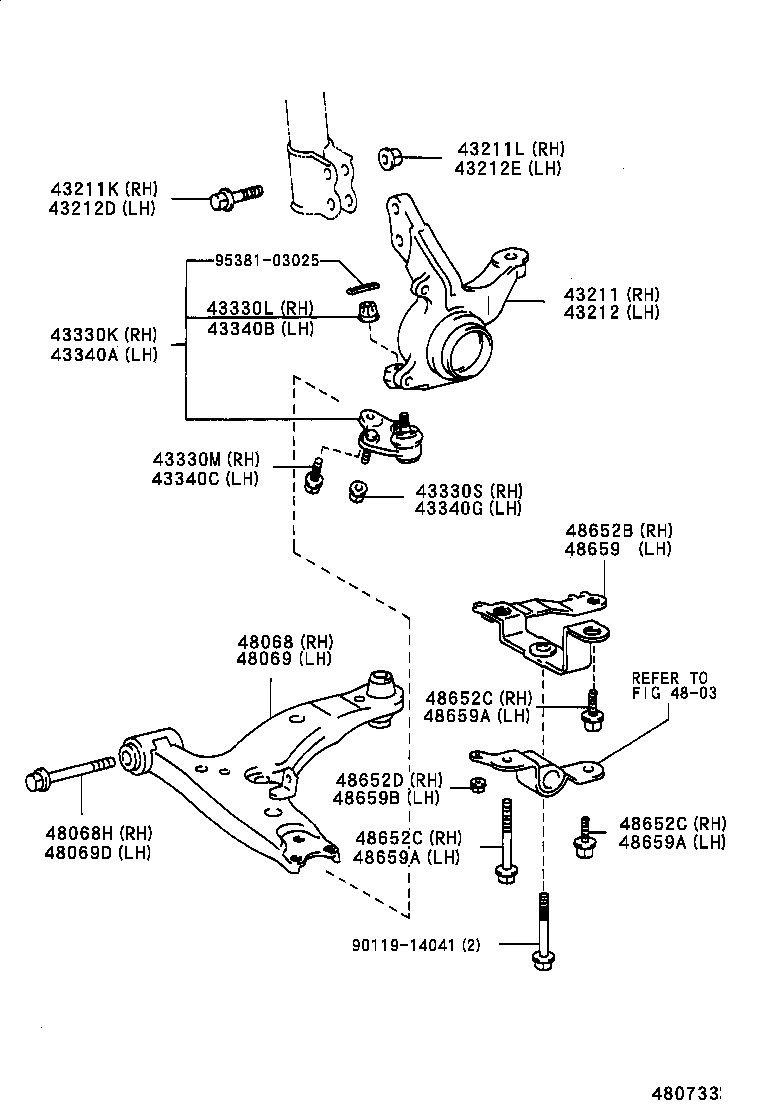

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48069 48069D 48652B 48652C 48652C 48652C 48652D 48659 48659A 48659A 48659A 48659B 9011914041 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-12300

AE111

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15004

AE111

OD=13.9

 1
90105-15001

AE111

OD=15.0

 2
90105-15001

AE111

OD=15.0

 1
90105-15006

AE111

OD=12.4

 1
90105-15005

AE111

OD=13.3

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

AE111

 2
43212 - KNUCKLE, STEERING, LH
43212-12260

AE111

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15005

AE111

OD=13.3

 1
90105-15004

AE111

OD=13.9

 1
90105-15001

AE111

OD=15.0

 1
90105-15006

AE111

OD=12.4

 1
90105-15001

AE111

OD=15.0

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

AE111

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-19115

AE111

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AE111

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12156

AE111

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12070

AE111

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-19115

AE111

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

AE111

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12156

AE111

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12070

AE111

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-12171

AE111

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14023

AE111

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-12171

AE111

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AE111

 1
48652B - BRACKET, FRONT LOWER ARM, RH
48652-12070

AE111

 1
48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH)
90119-12238

AE111

*12-1.25PX75-38

 1
90119-12125

AE111

*12-1.25PX31-25.3

 1
90119-10692

AE111

*10-1.25PX29-23

 1
48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH)
90119-12238

AE111

*12-1.25PX75-38

 1
90119-12125

AE111

*12-1.25PX31-25.3

 1
90119-10692

AE111

*10-1.25PX29-23

 1
48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH)
90119-12238

AE111

*12-1.25PX75-38

 1
90119-12125

AE111

*12-1.25PX31-25.3

 1
90119-10692

AE111

*10-1.25PX29-23

 1
48652D - NUT(FOR FRONT LOWER ARM BRACKET RH)
90179-08145

AE111

 1
48659 - BRACKET, FRONT LOWER ARM, LH
48659-12070

AE111

 1
48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH)
90119-10692

AE111

*10-1.25PX29-23

 1
90119-12125

AE111

*12-1.25PX31-25.3

 1
90119-12238

AE111

*12-1.25PX75-38

 1
48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH)
90119-10692

AE111

*10-1.25PX29-23

 1
90119-12125

AE111

*12-1.25PX31-25.3

 1
90119-12238

AE111

*12-1.25PX75-38

 1
48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH)
90119-10692

AE111

*10-1.25PX29-23

 1
90119-12125

AE111

*12-1.25PX31-25.3

 1
90119-12238

AE111

*12-1.25PX75-38

 1
48659B - NUT(FOR FRONT LOWER ARM BRACKET LH)
90179-08145

AE111

 1
Common parts
90119-14041
95381-03025
Linked diagrams
4803

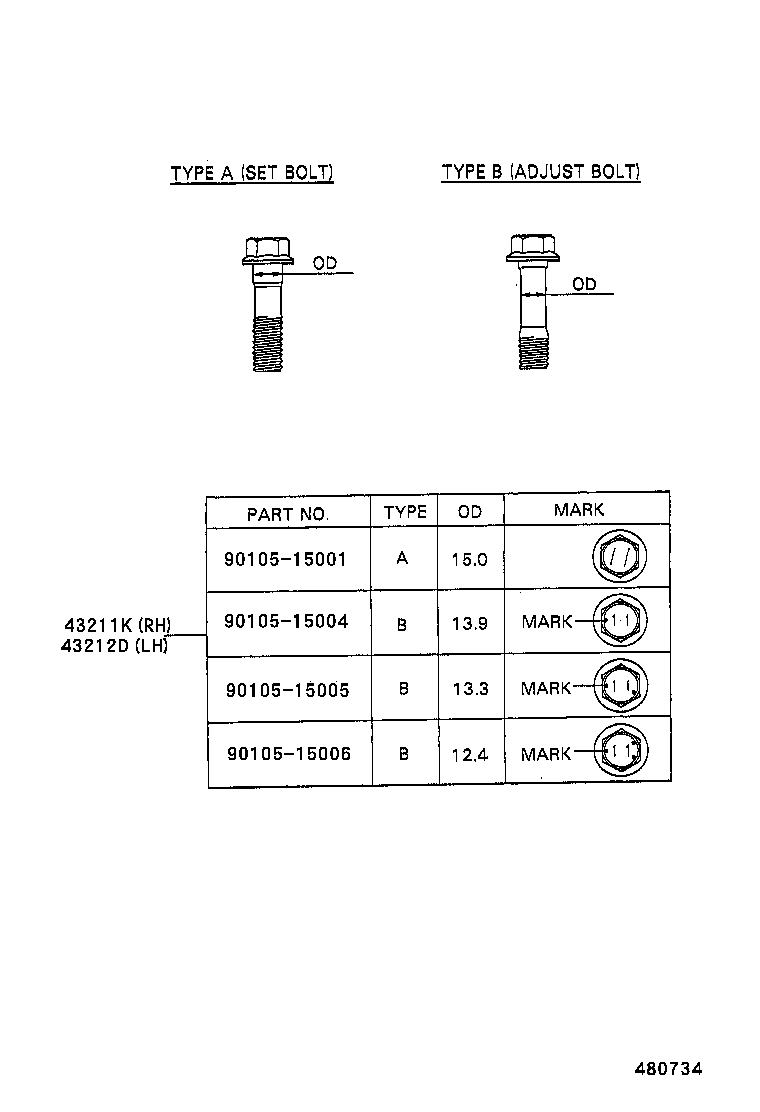

ILLUST NO. 2 OF 2(9805- )

Click highlighted areas on diagram

diagram 43211K 43212D
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15004

AE111

OD=13.9

 1
90105-15001

AE111

OD=15.0

 2
90105-15001

AE111

OD=15.0

 1
90105-15006

AE111

OD=12.4

 1
90105-15005

AE111

OD=13.3

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15005

AE111

OD=13.3

 1
90105-15004

AE111

OD=13.9

 1
90105-15001

AE111

OD=15.0

 1
90105-15006

AE111

OD=12.4

 1
90105-15001

AE111

OD=15.0

 2
